Power Door Lock Control System
>>
Location
Power Door Lock Control System: Location

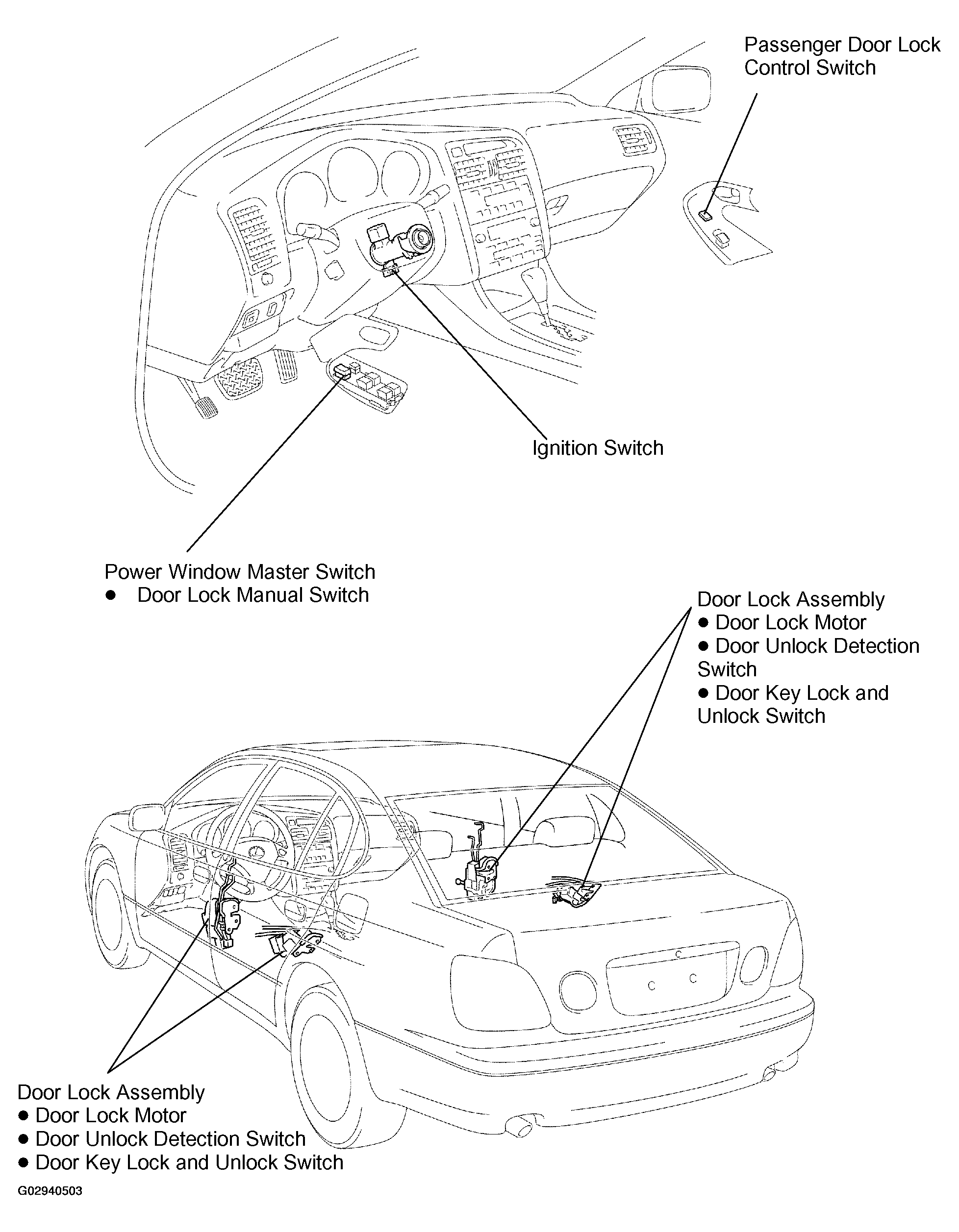

Fig 1: Locating Power Door Lock Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
