EVAP Inspection Procedure: Wiring Diagram

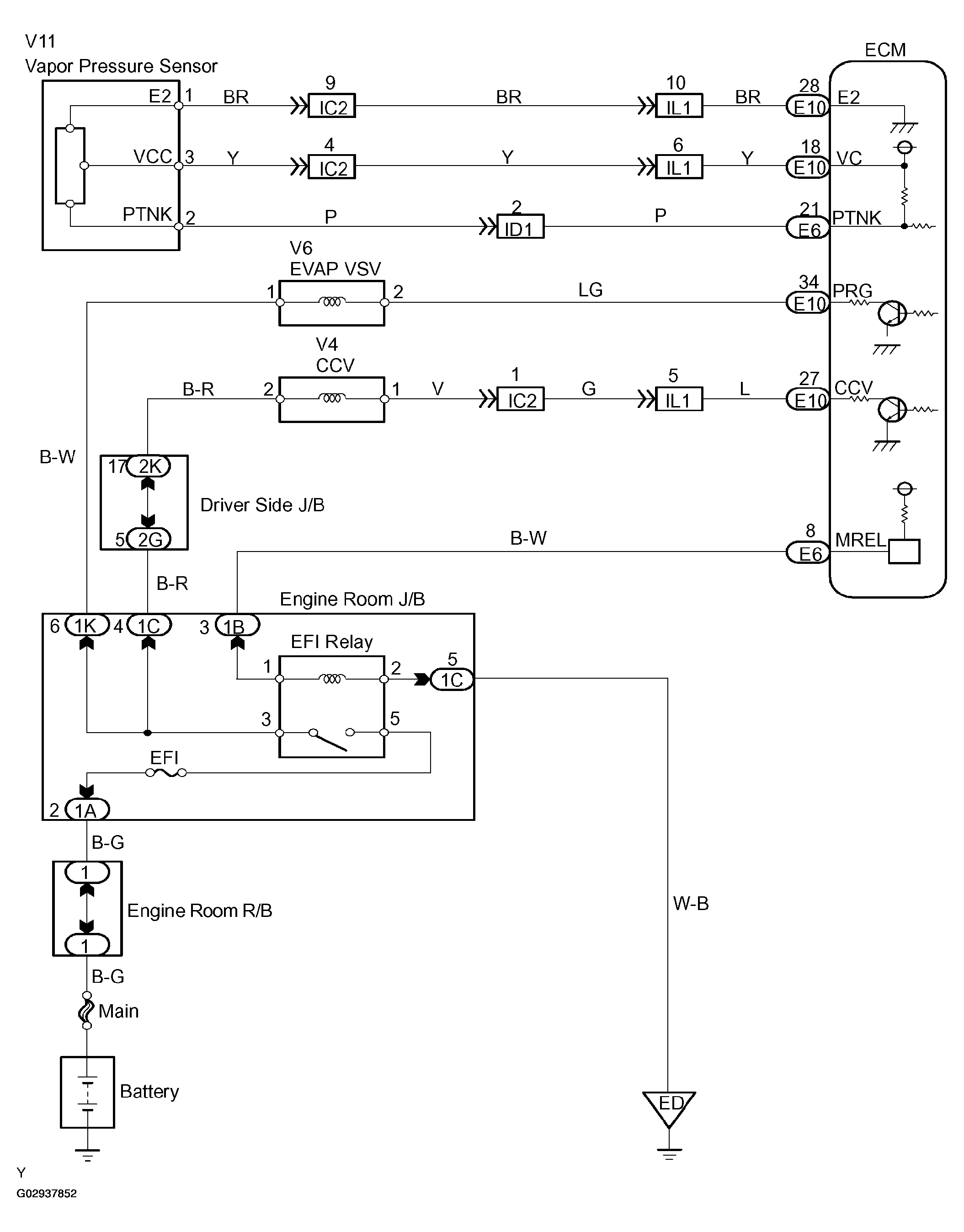

Fig 1: Wiring Diagram - EVAP System

G02937852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
