Home >> Lexus >> 2005 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

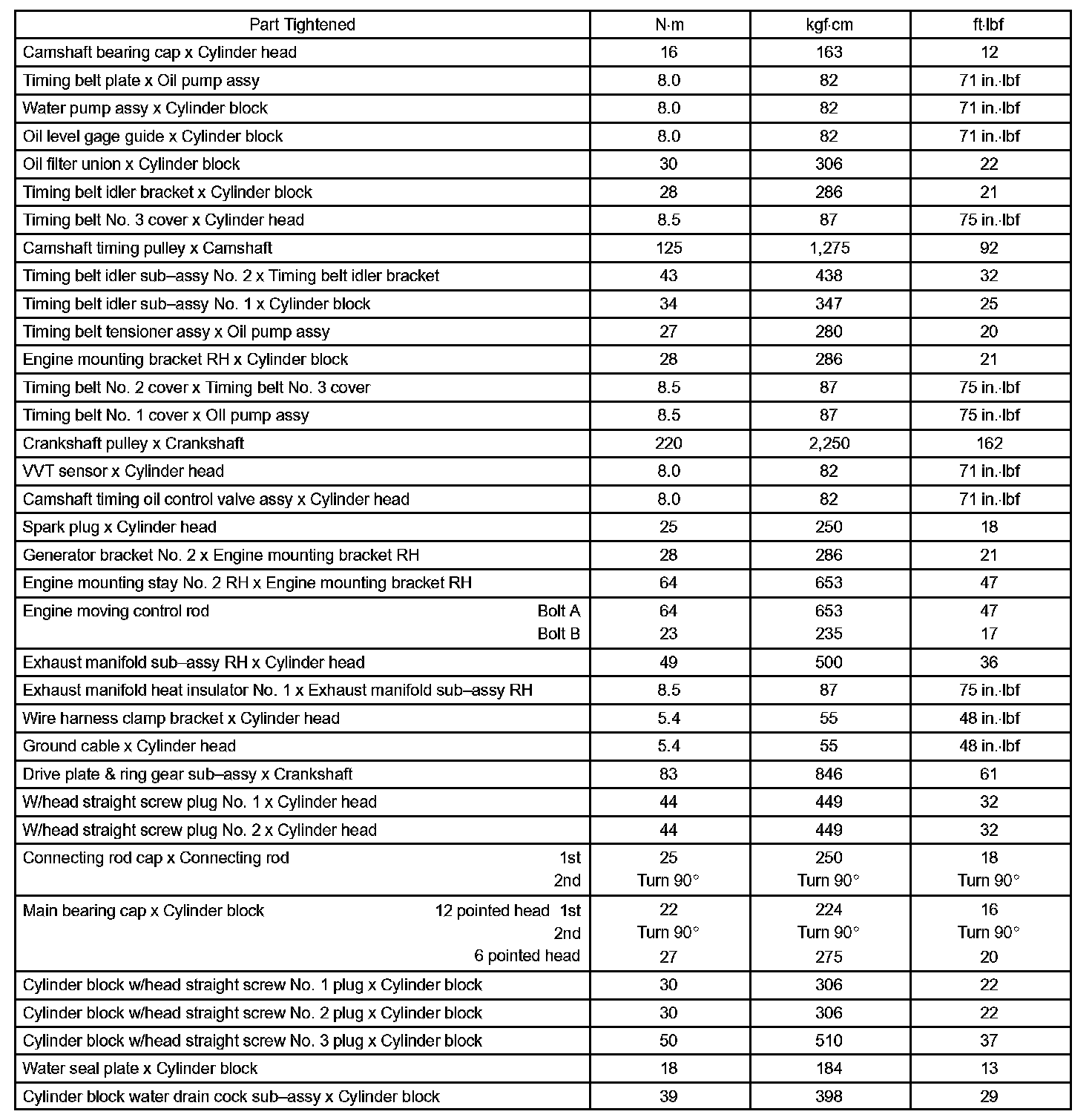

Engine Mechanical - Torque Specification Part 1:

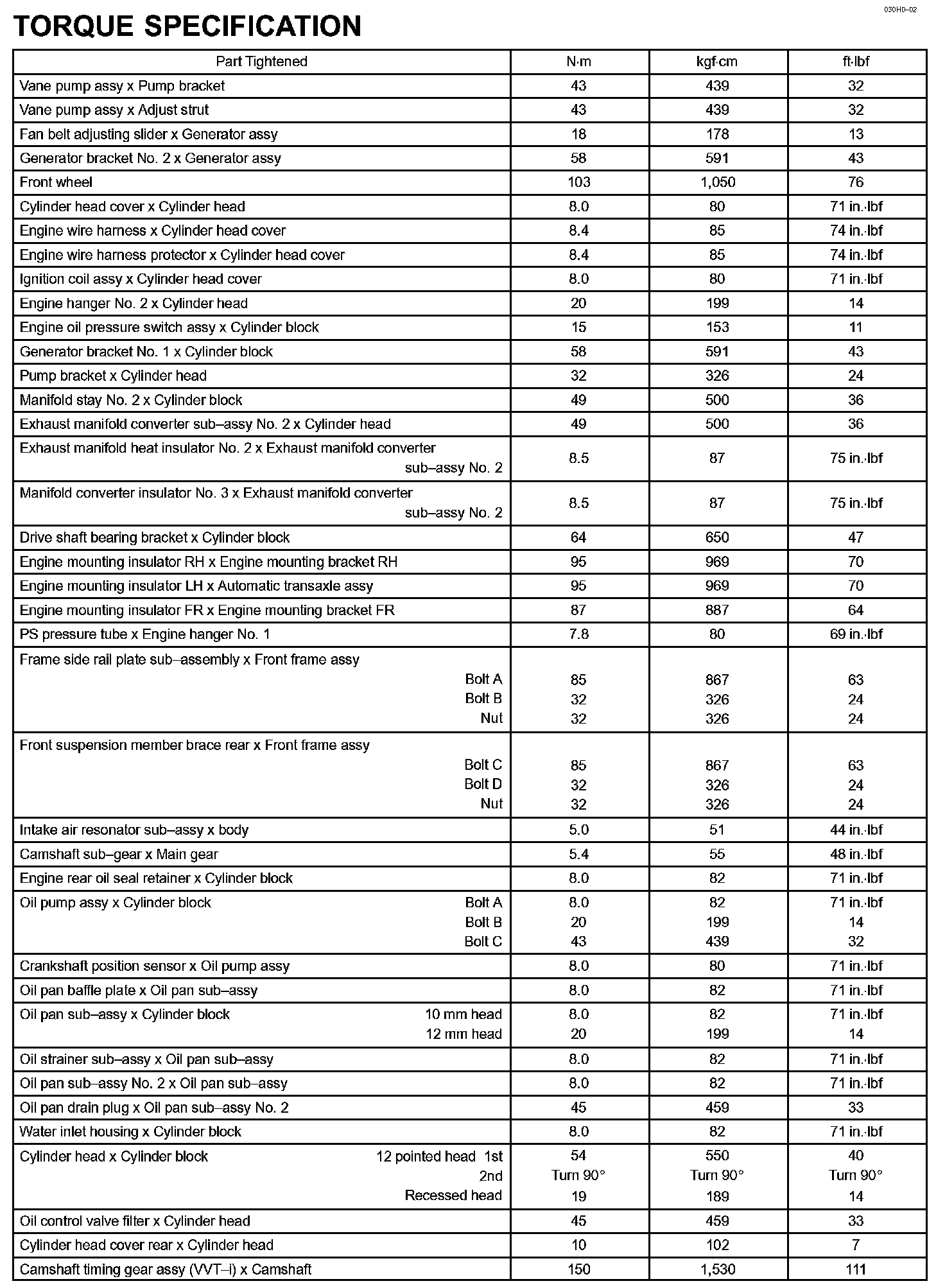

Engine Mechanical - Torque Specification Part 2:
