Home >> Lexus >> 2005 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

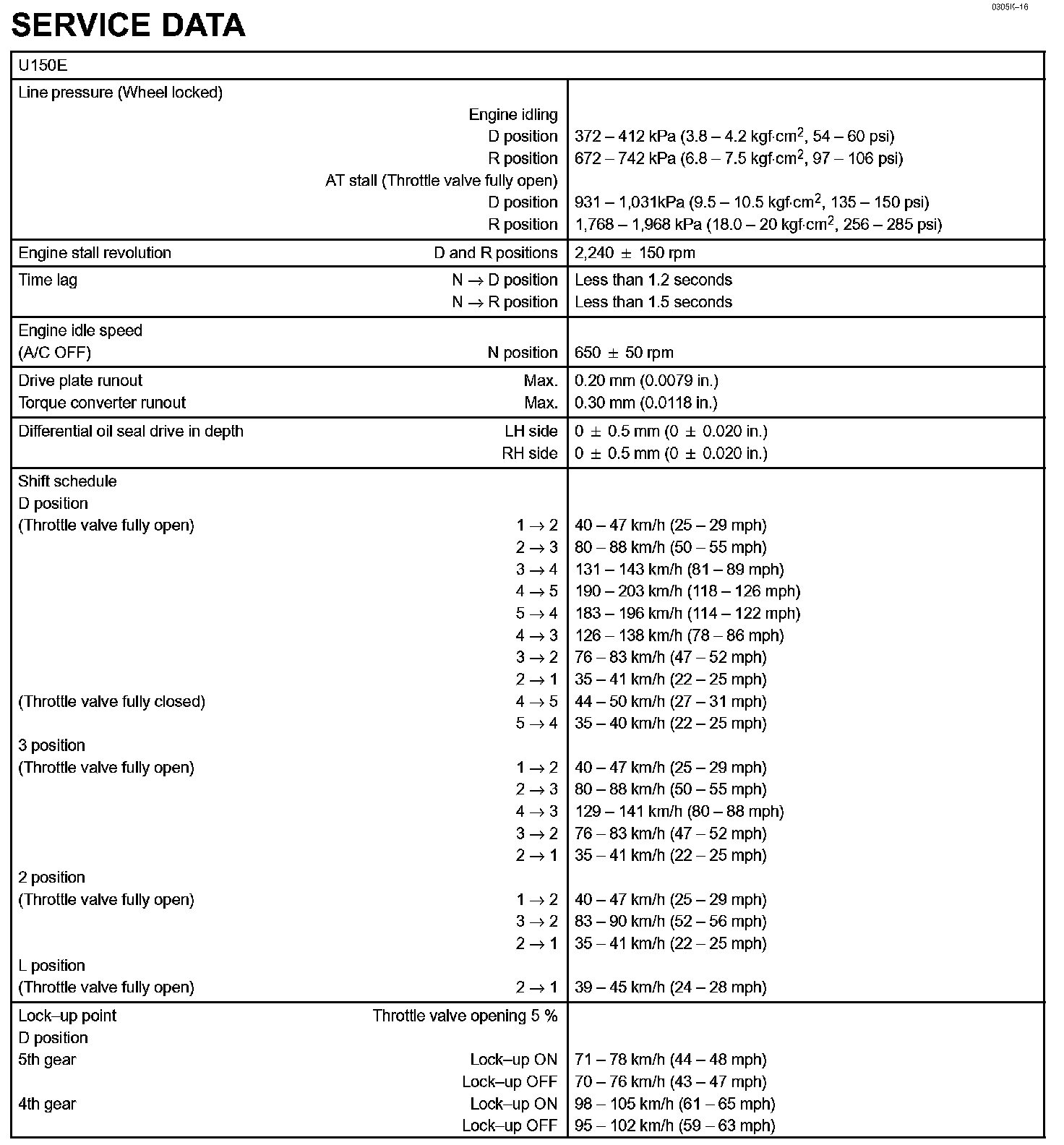

Automatic Transmission / Transaxle - Service Data:

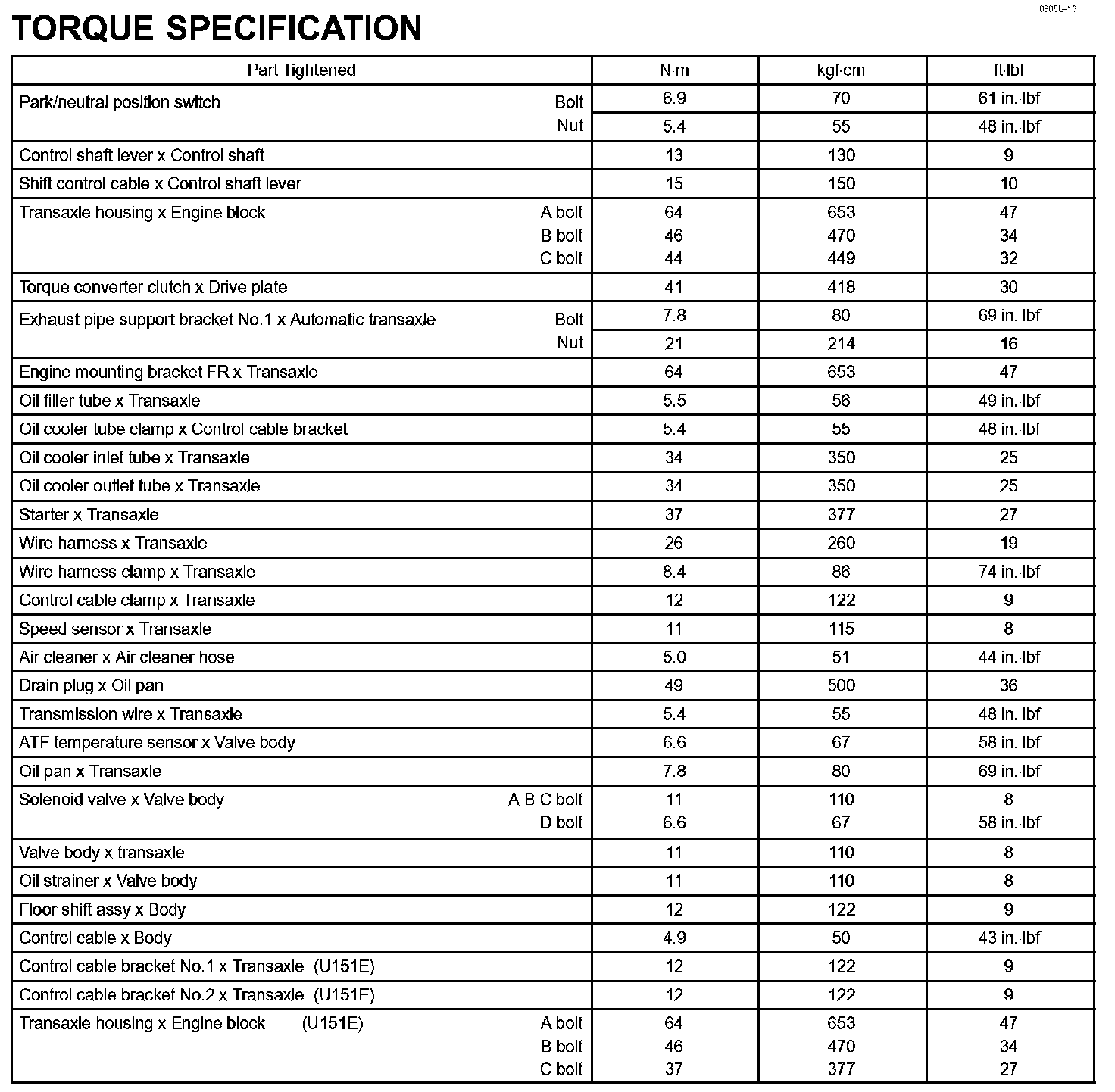

Automatic Transmission / Transaxle - Torque Specification:
