Impact Sensor
Impact Sensor

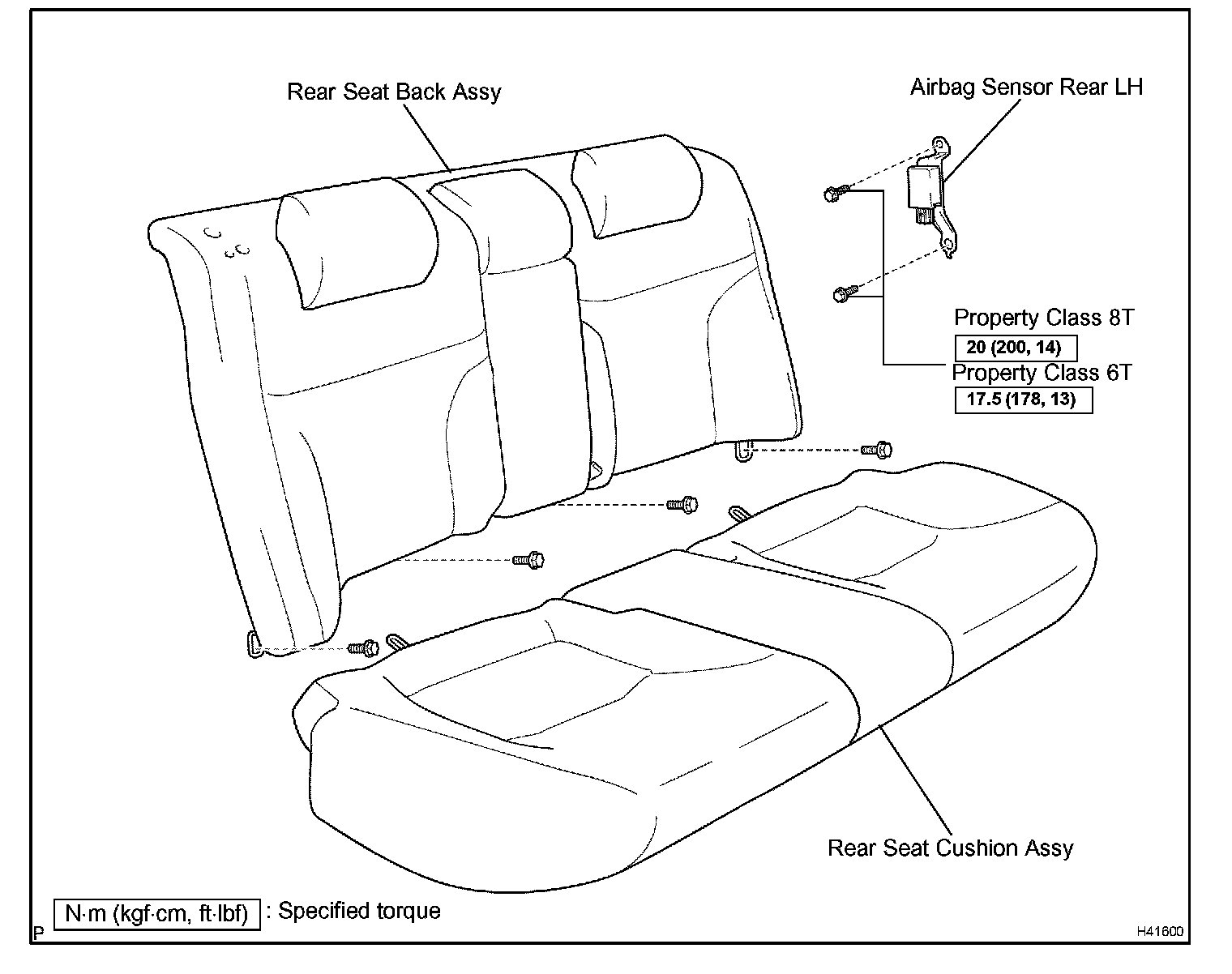

Air Bag Sensor Rear LH:

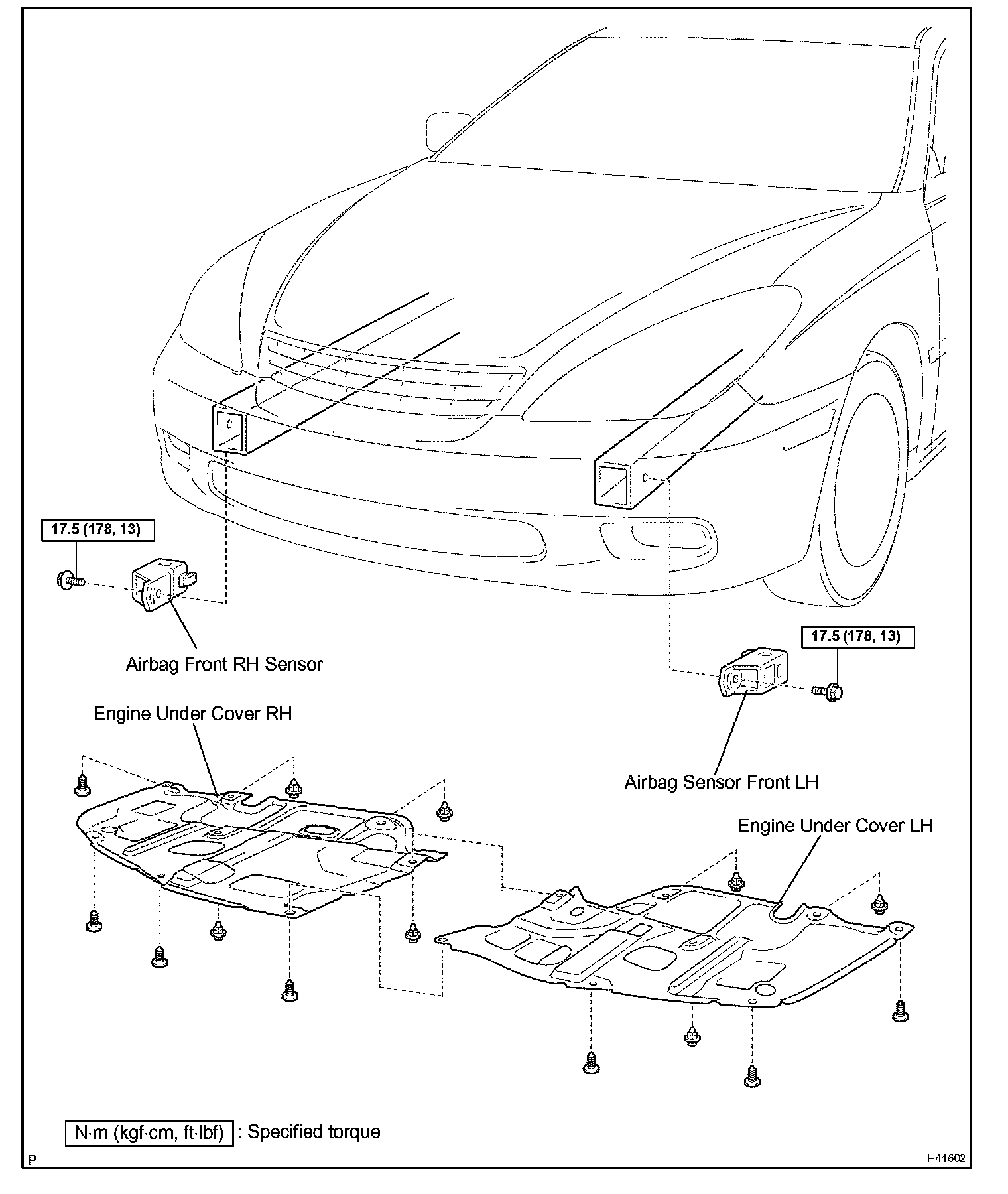

Air Bag Front RH Sensor:

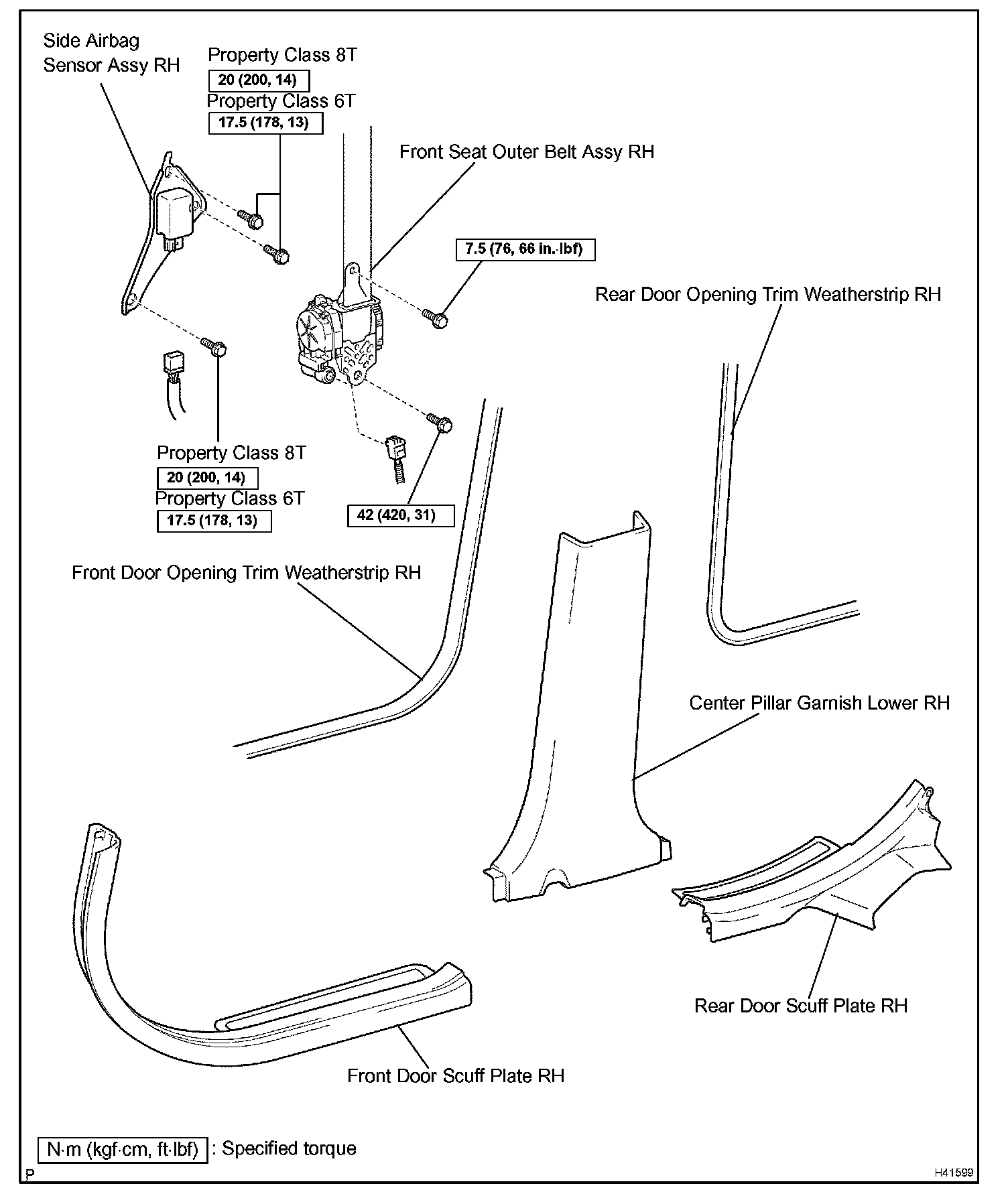

Side Air Bag Sensor Assy RH:

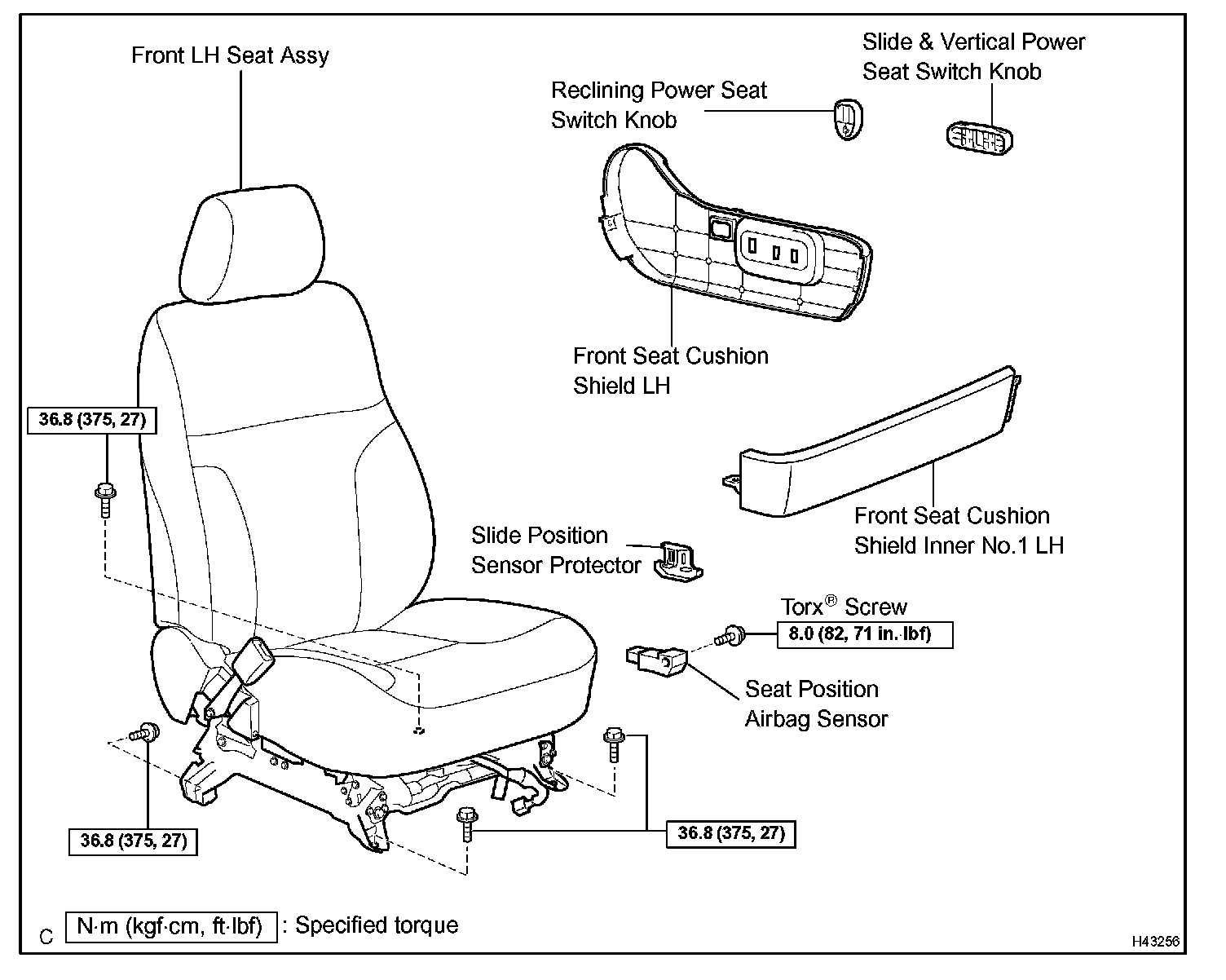

Seat Position Air Bag Sensor (From July, 2003):
