WARNING: This page is about a different car, the 2002 Lexus LX 470 and 2001 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

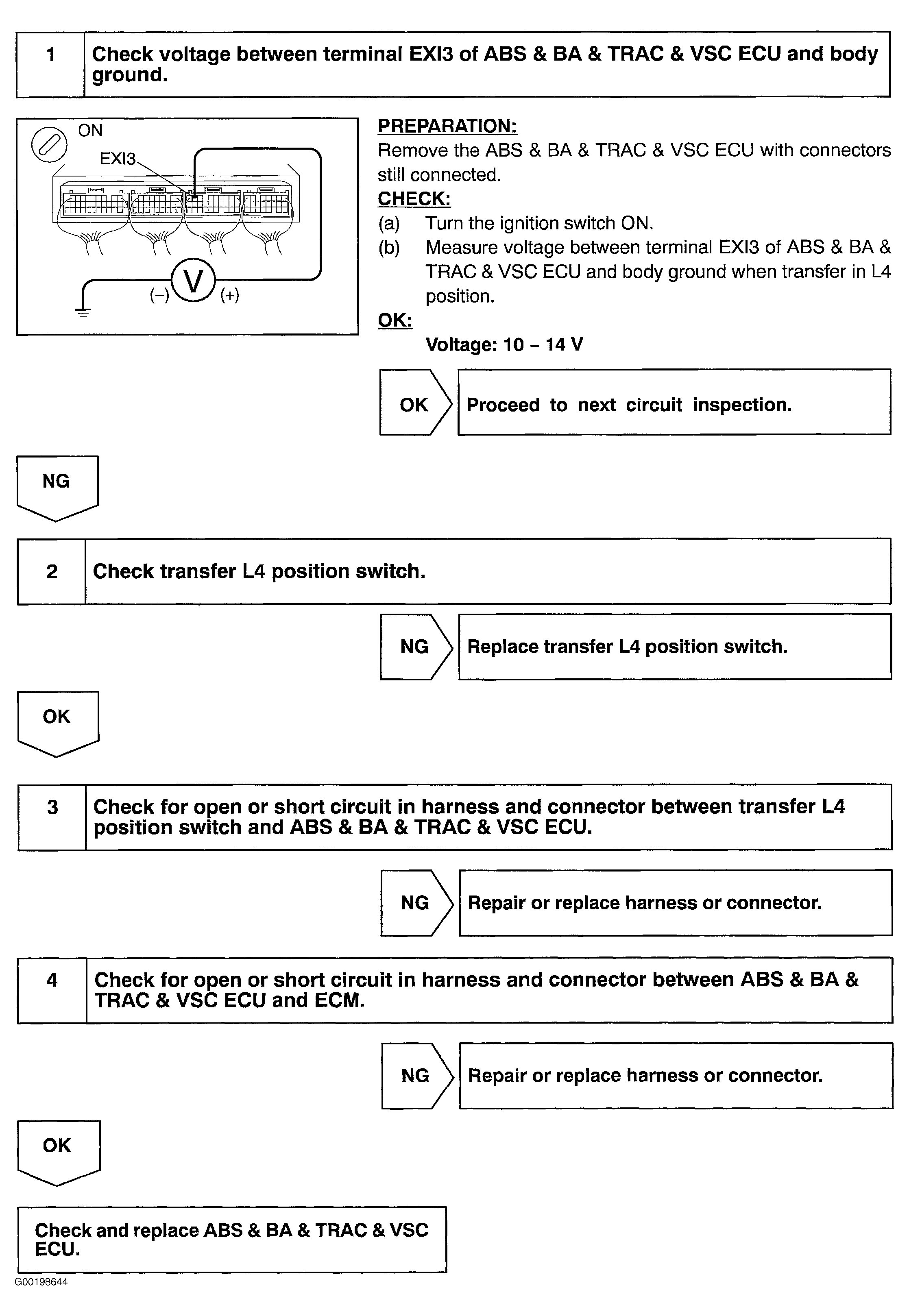

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

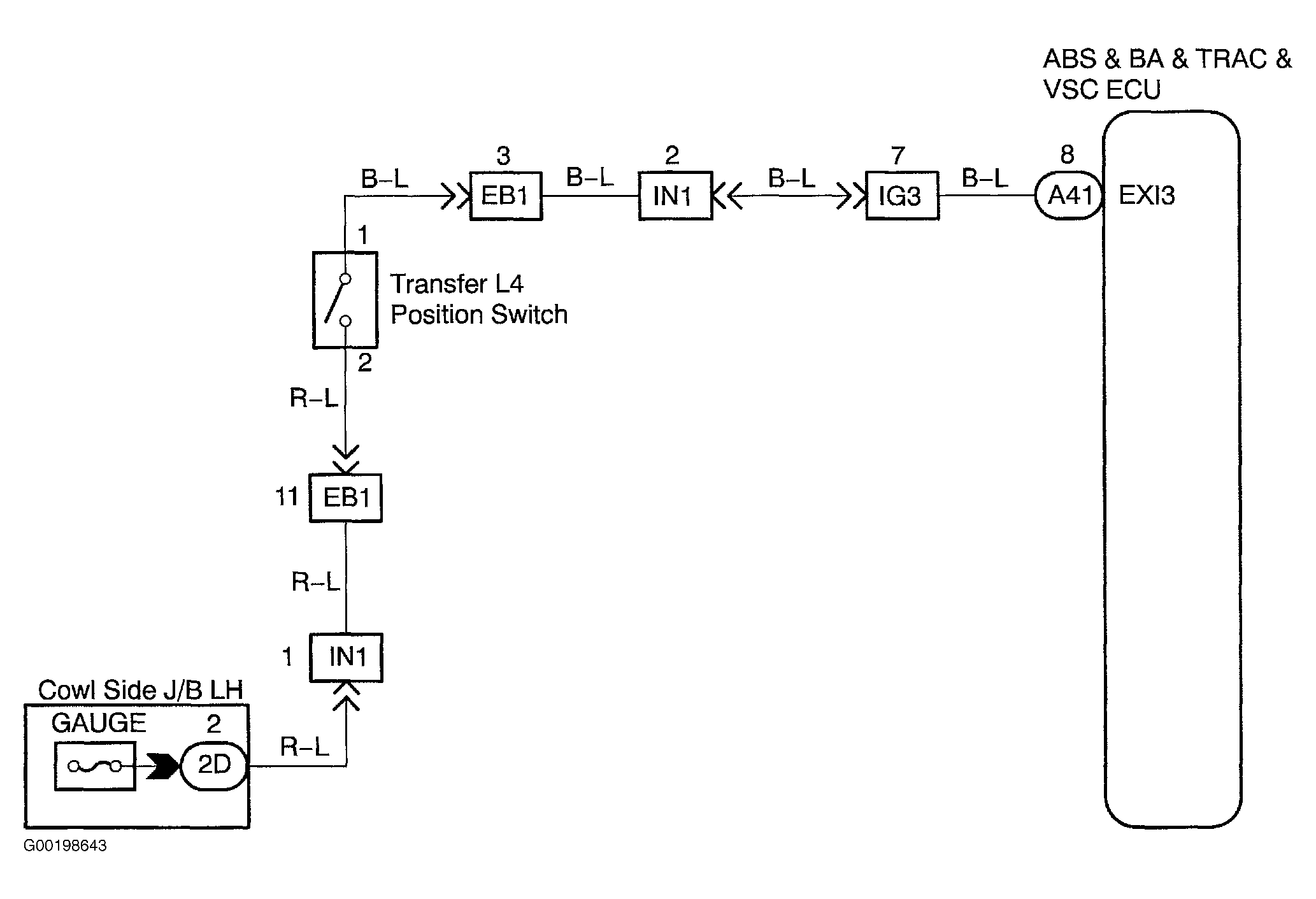

Fig 1: Wiring Diagram Transfer L4 Position Switch Circuit
