Home >> Lexus >> 2004 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Front

Front

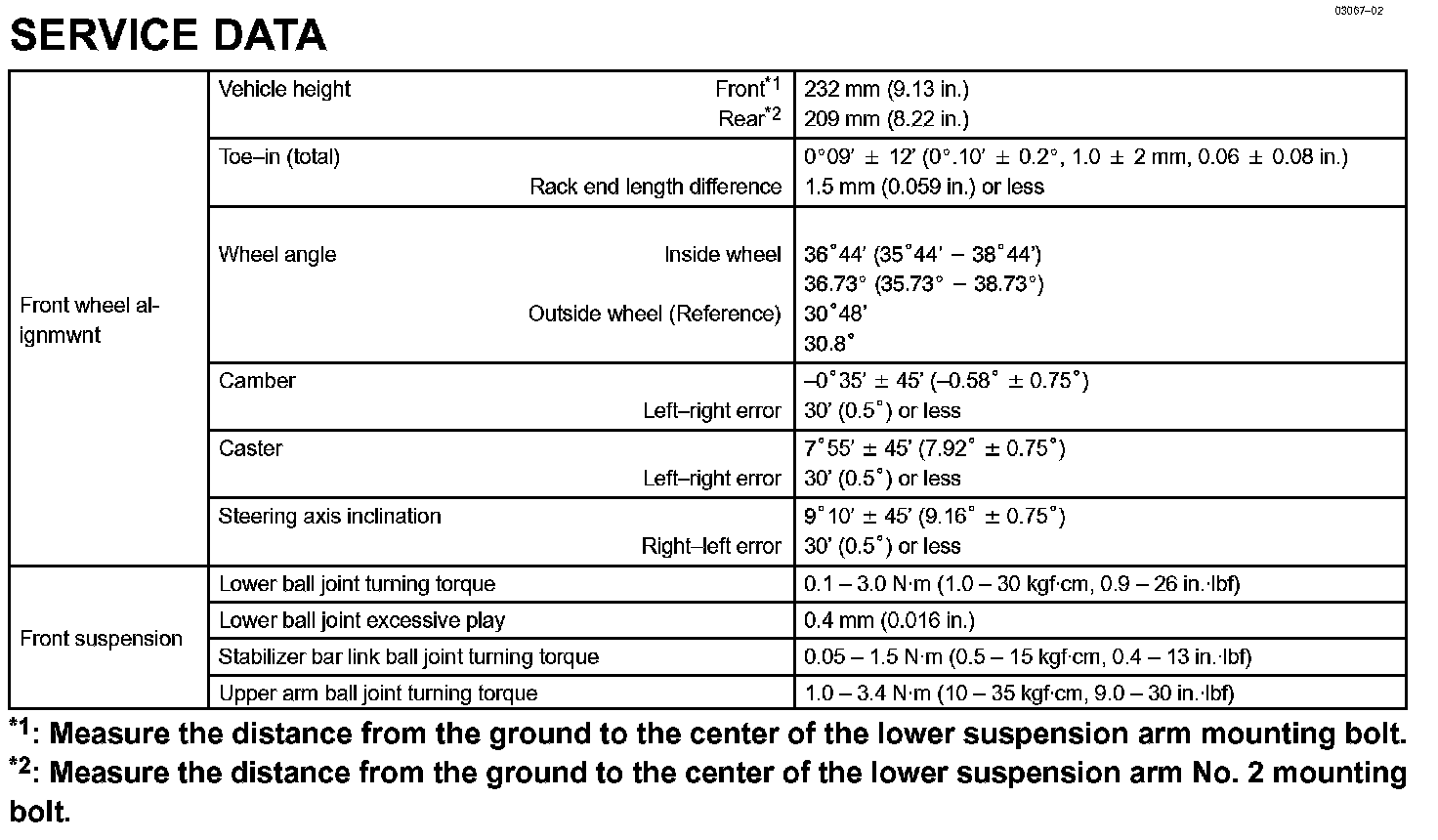

Front Suspension - Service Data:

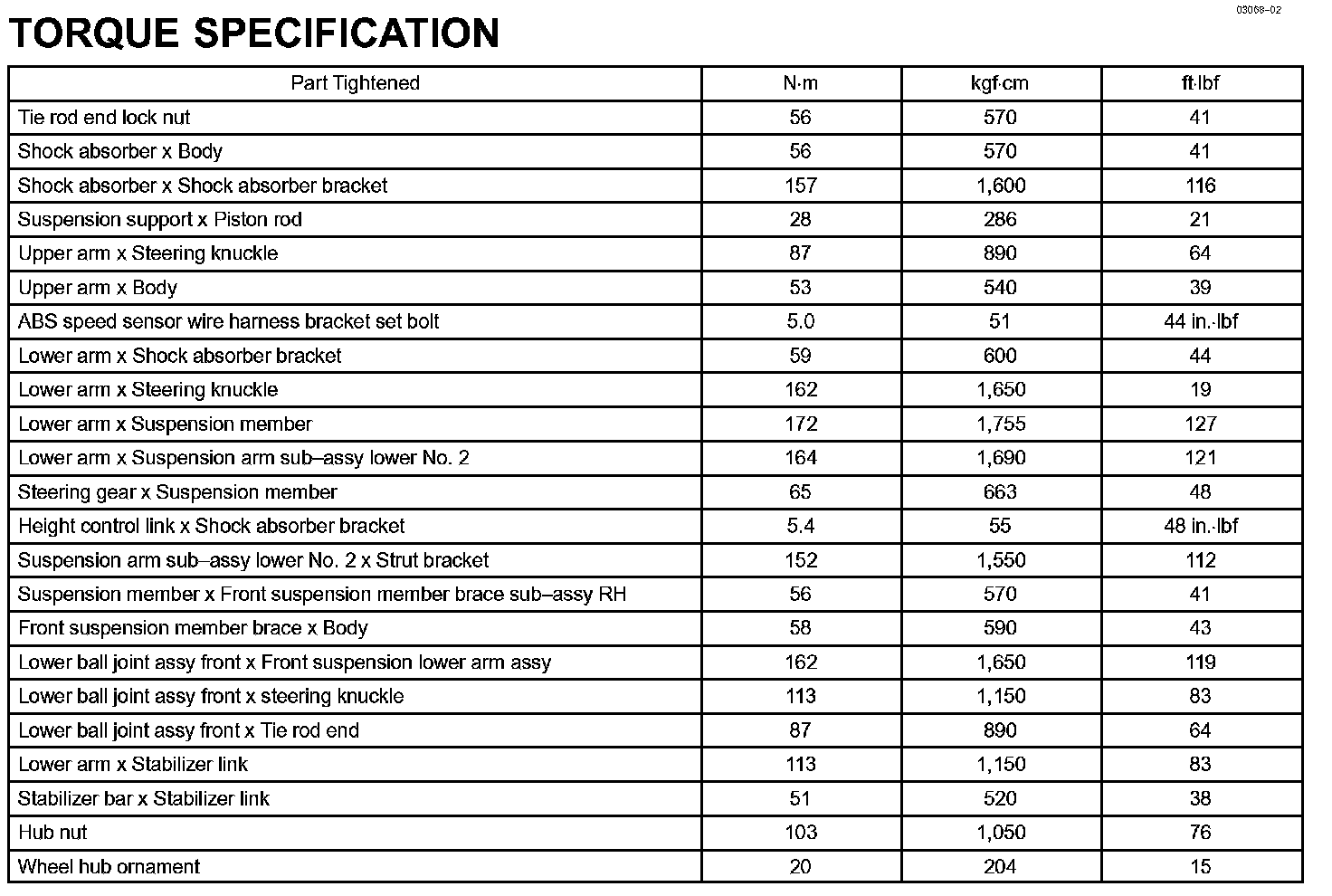

Front Suspension - Torque Specification:
