Home >> Lexus >> 2004 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

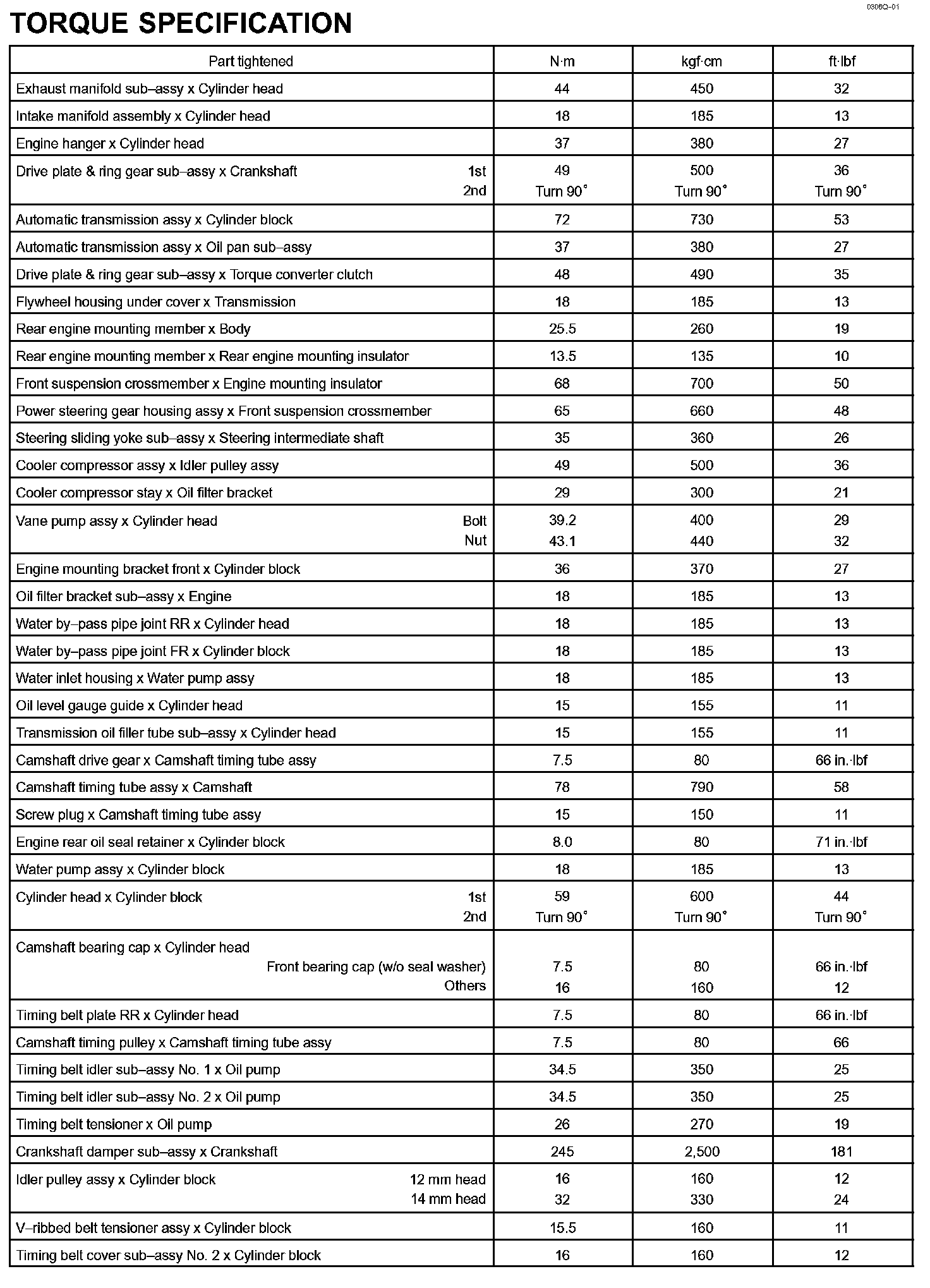

Engine Mechanical - Torque Specification Part 1:




Engine Mechanical - Torque Specification Part 2:




Intake - Torque Specification:
