Home >> Lexus >> 2004 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly

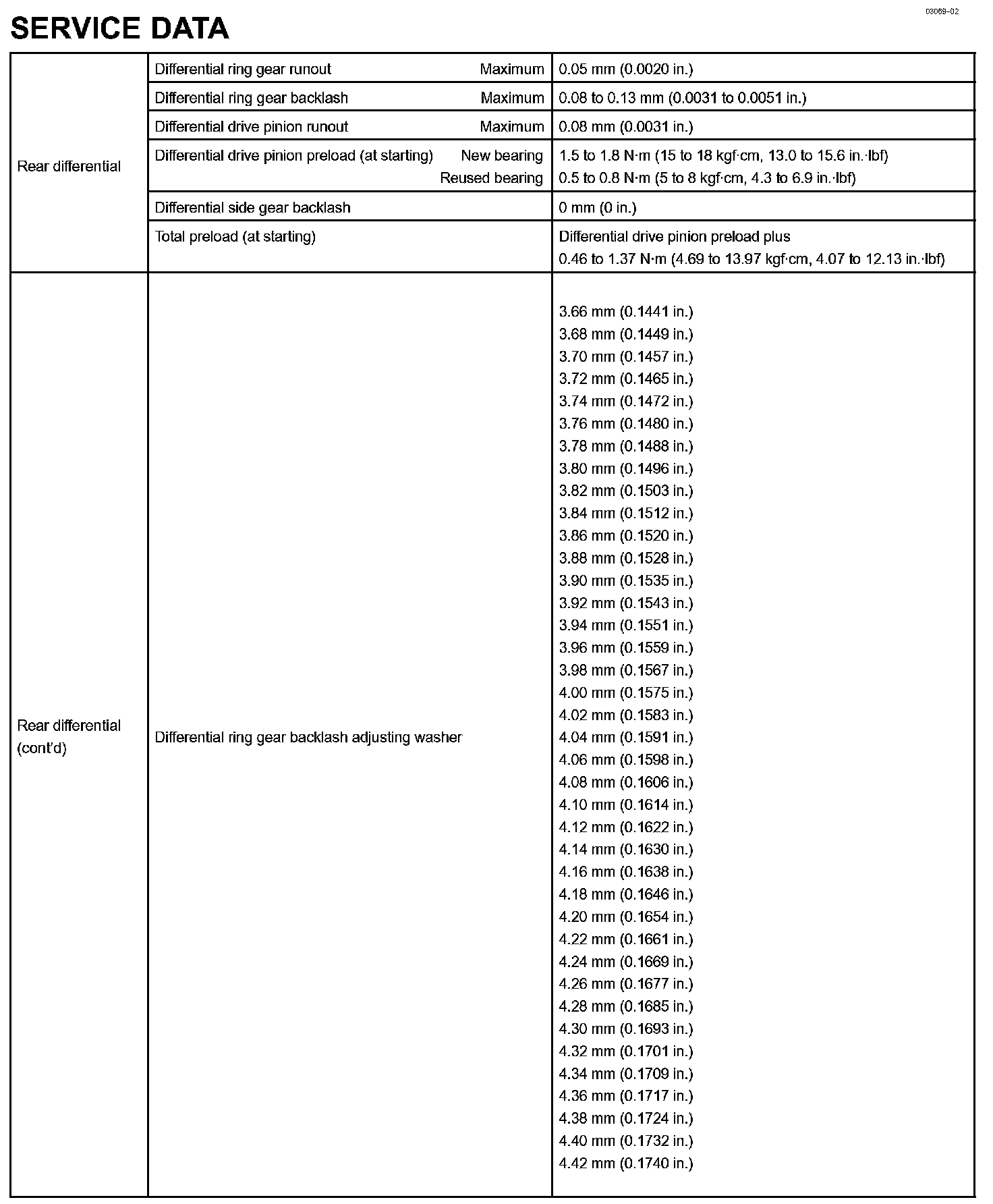

Differential - Service Data Part 1:

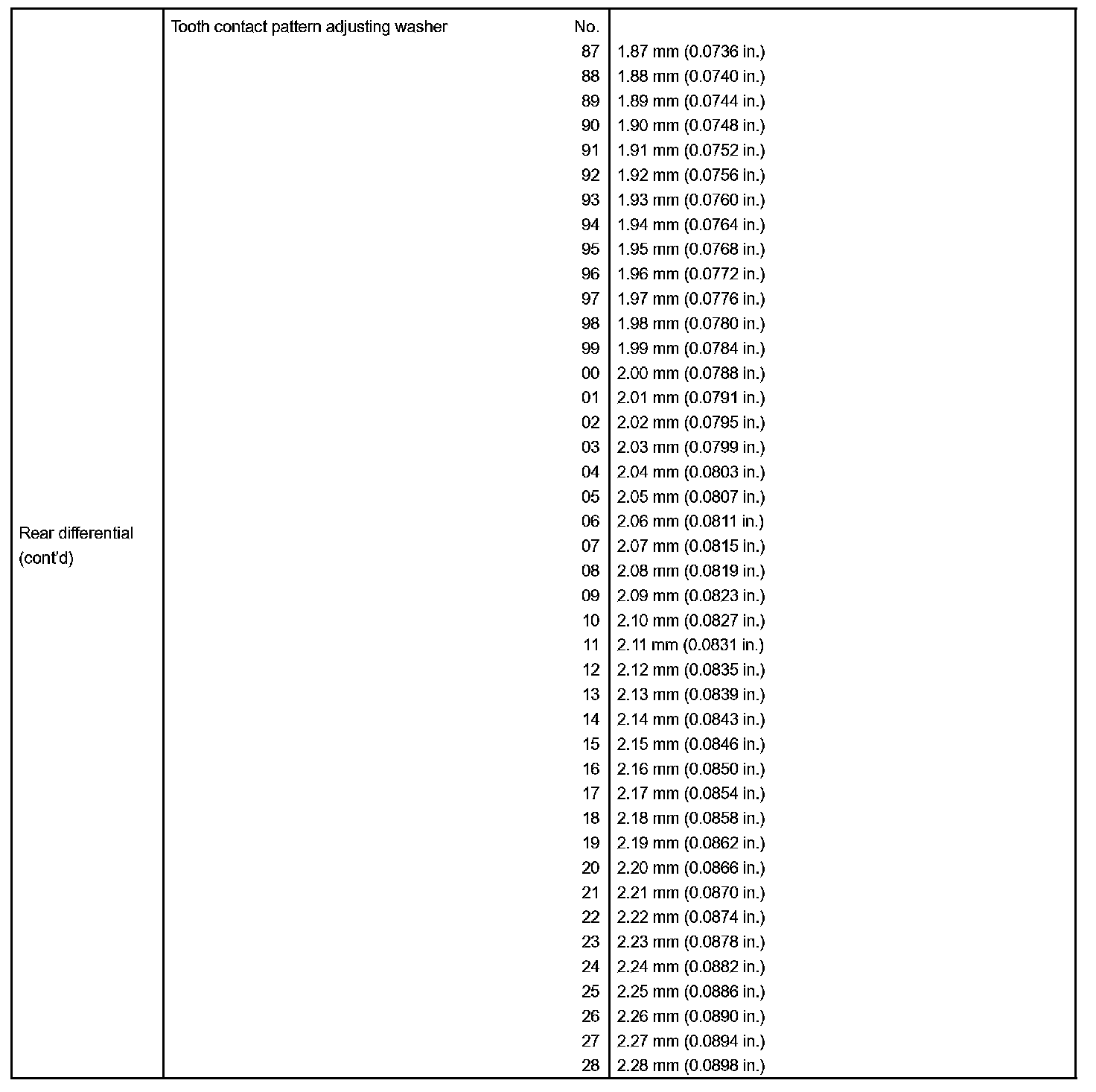

Differential - Service Data Part 2:

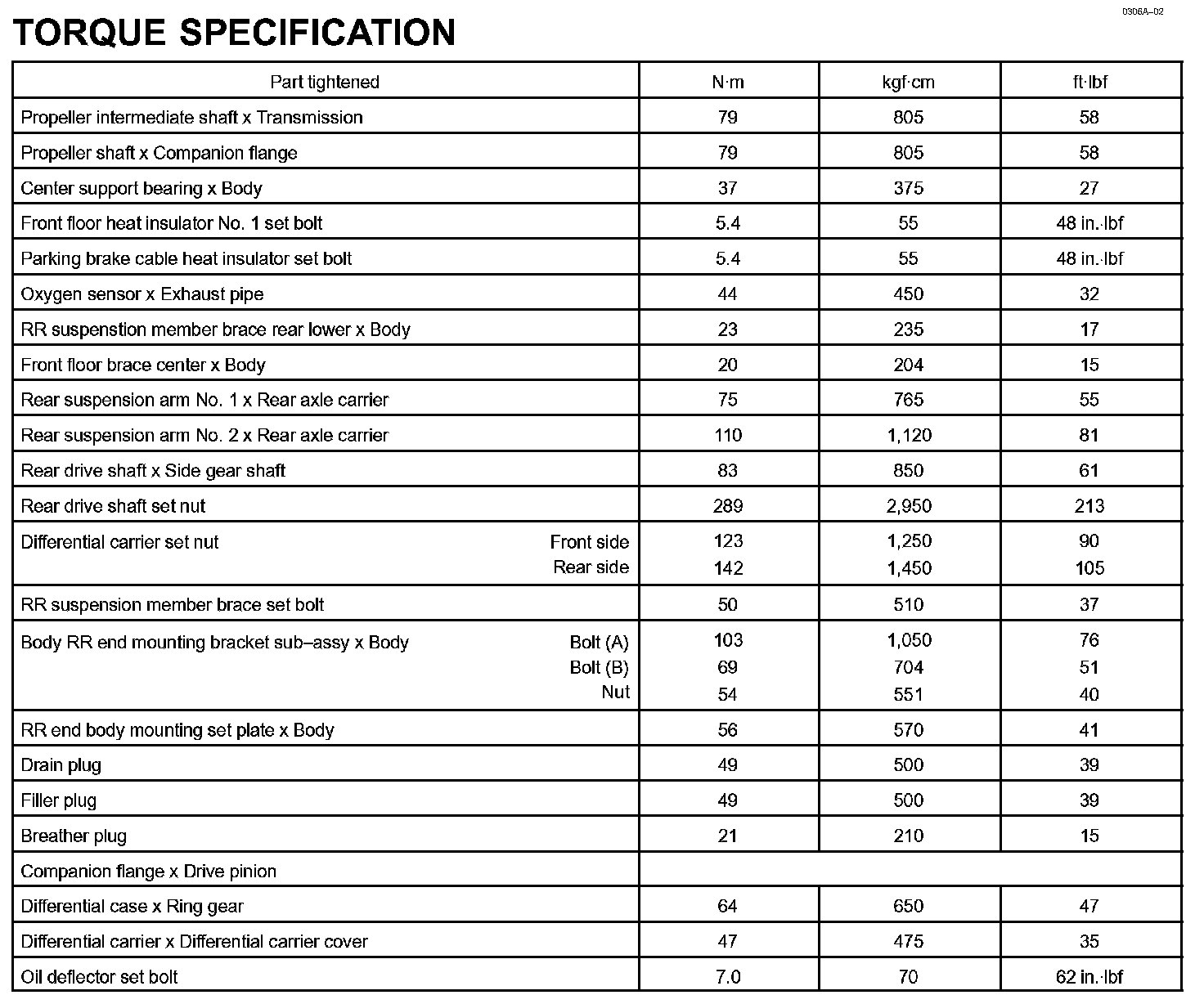

Differential - Torque Specification:
