Home >> Lexus >> 2004 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Testing and Inspection

Ignition Relay: Testing and Inspection

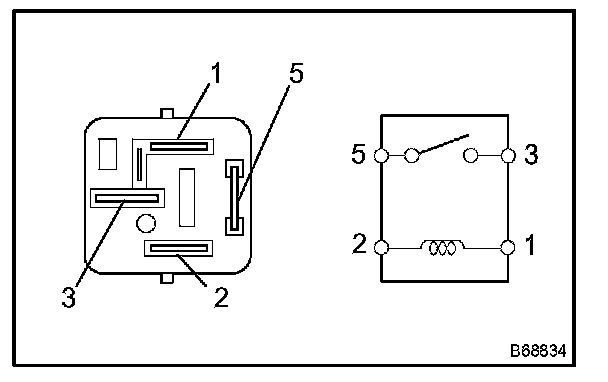

INSPECT RELAY (IG1)

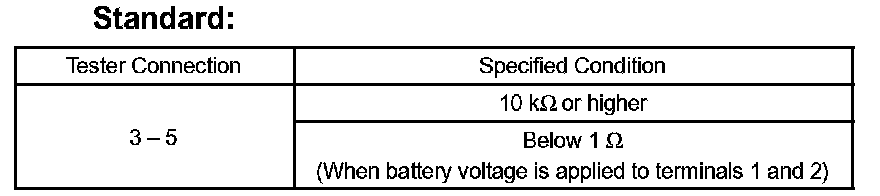

a. Check the resistance of the IG1 relay.
If the result is not as specified, replace the relay.
