Engine Overhaul

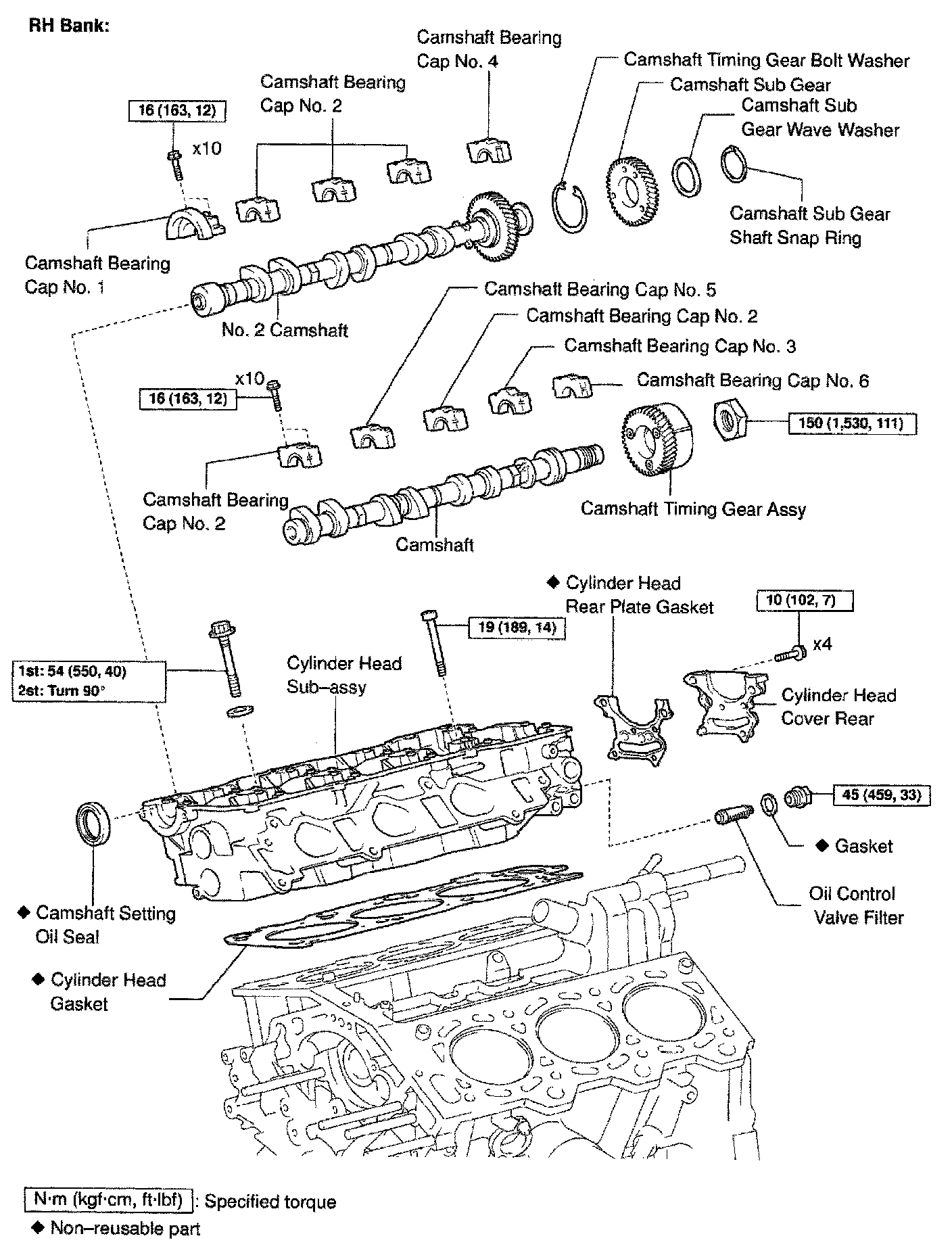

RH Bank:

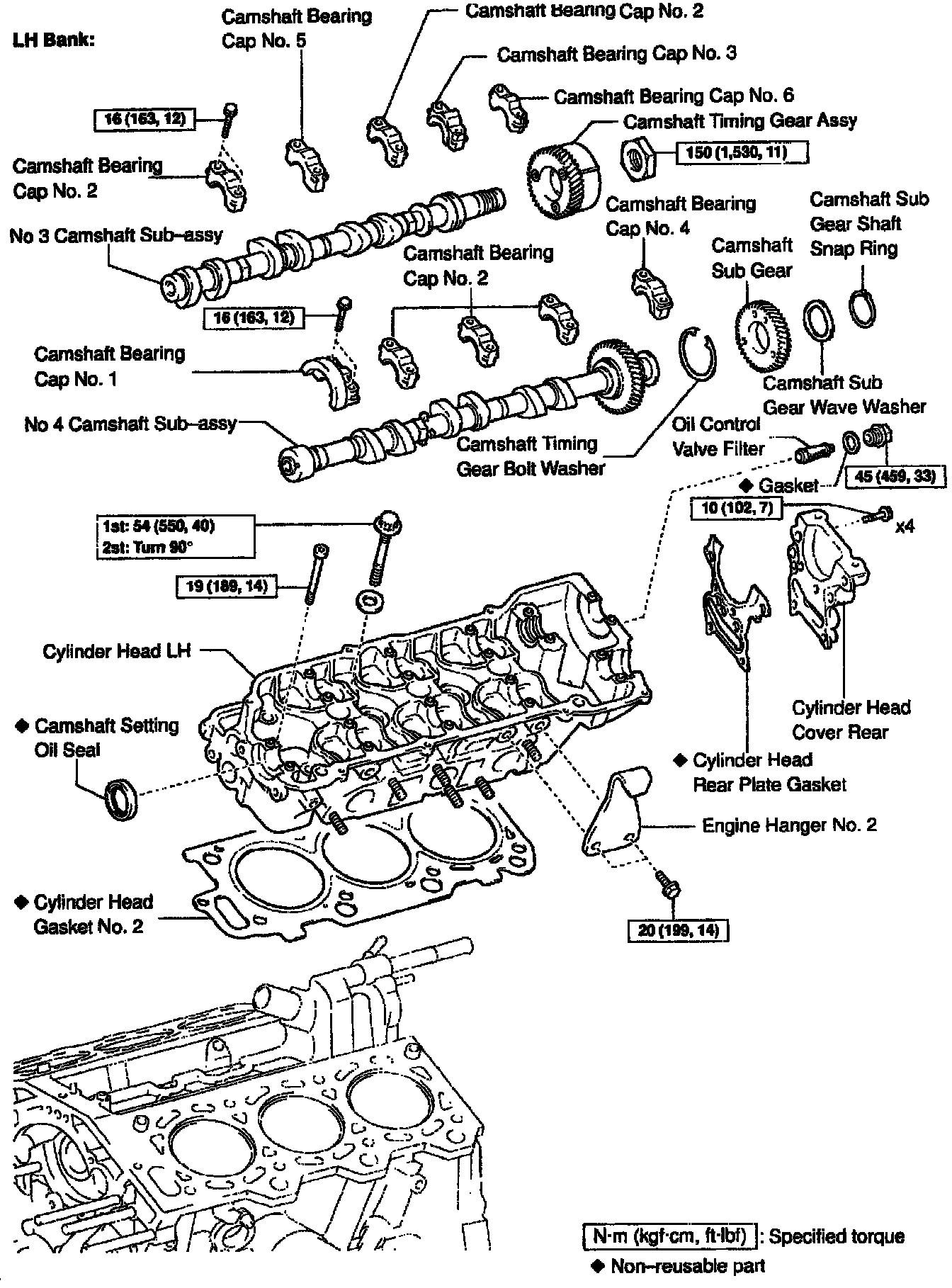

LH Bank:

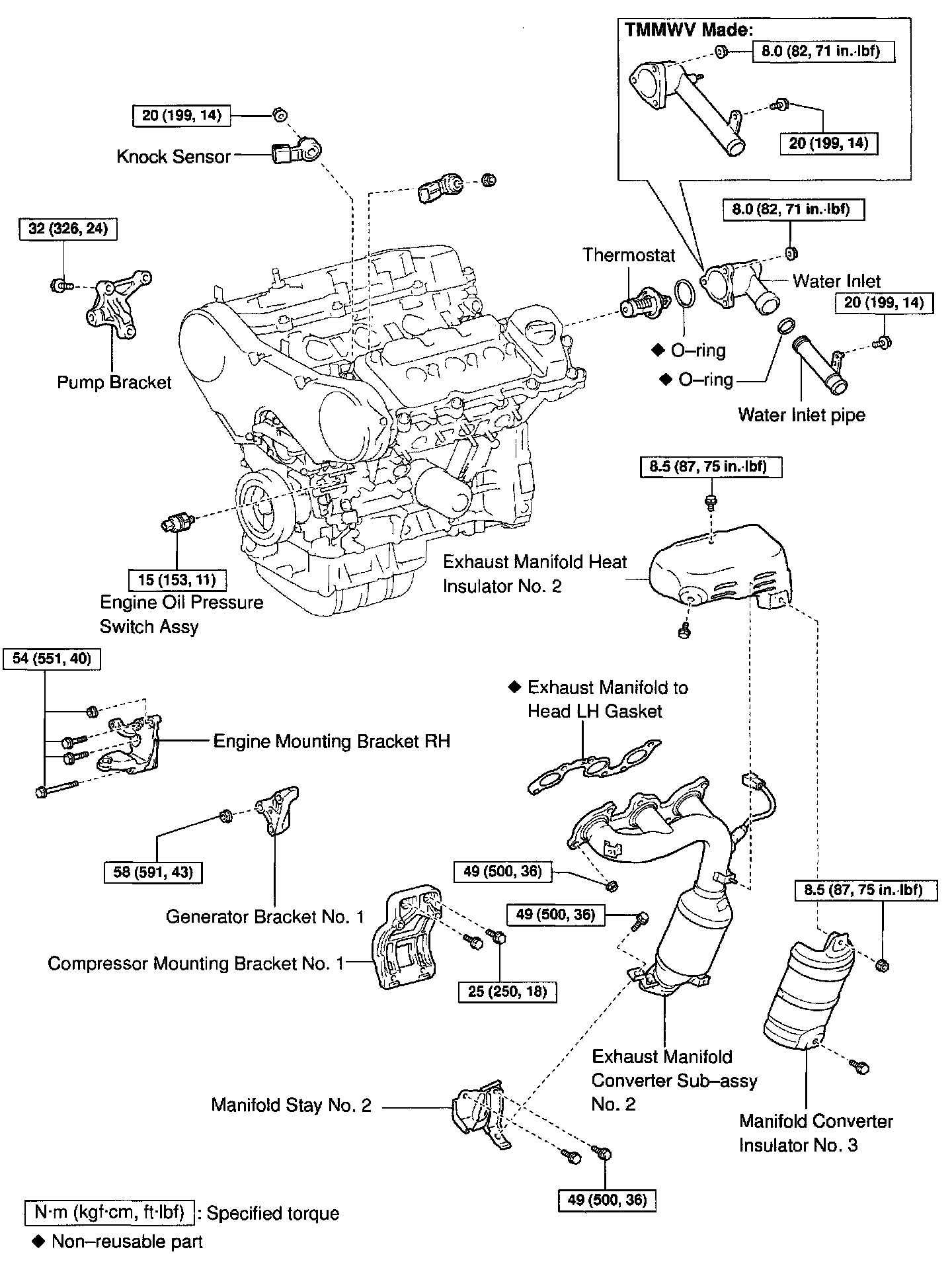

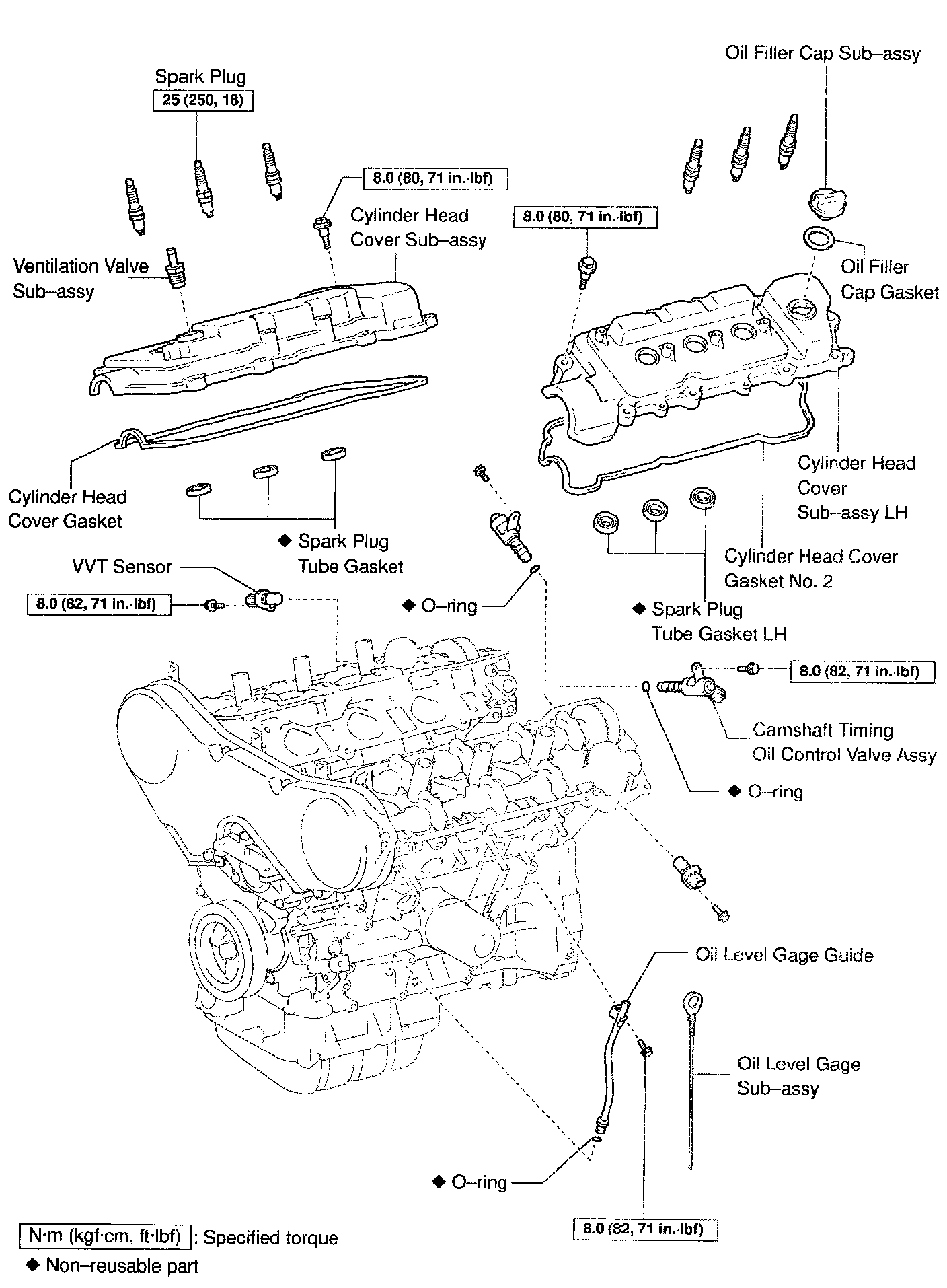

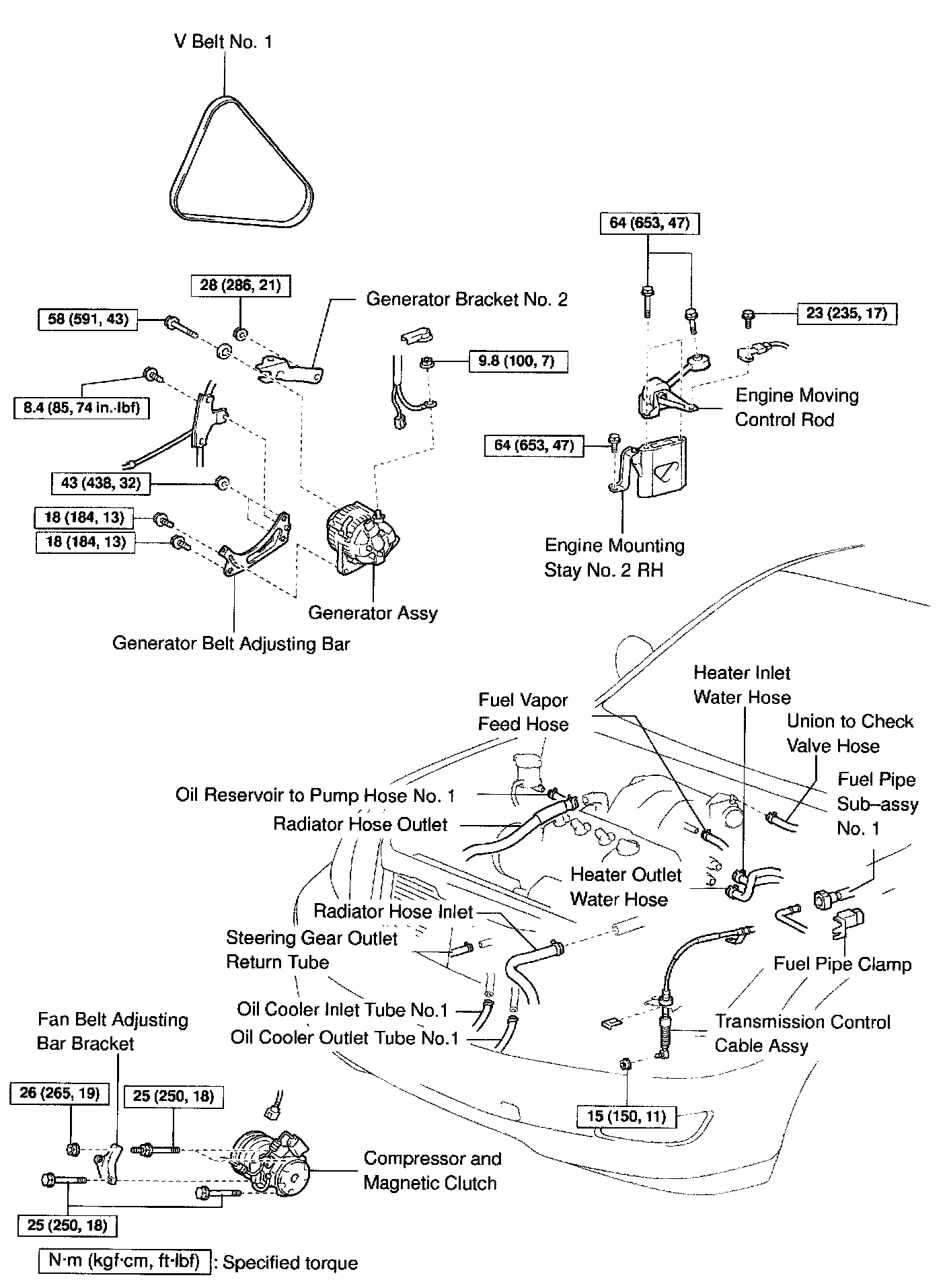

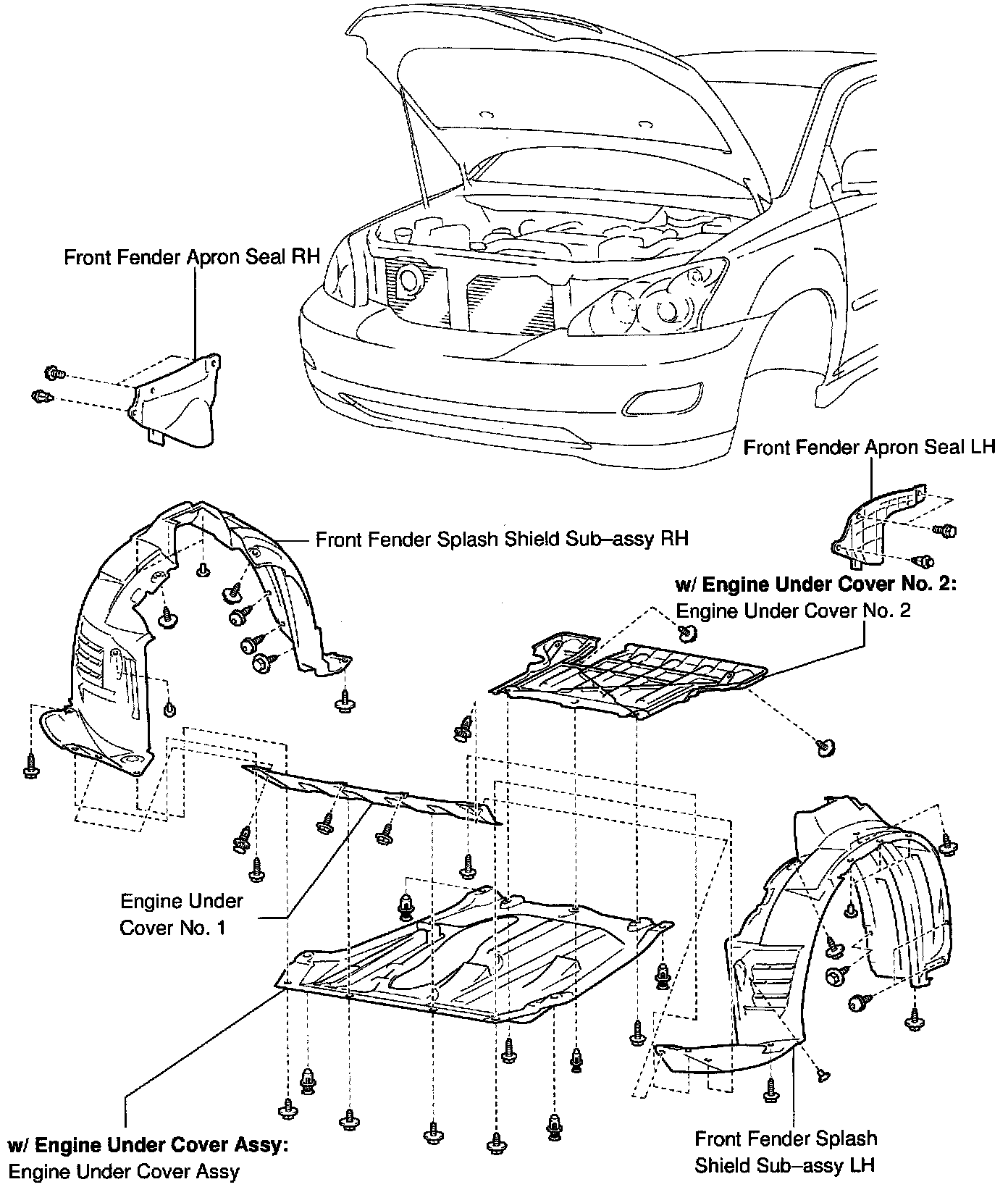

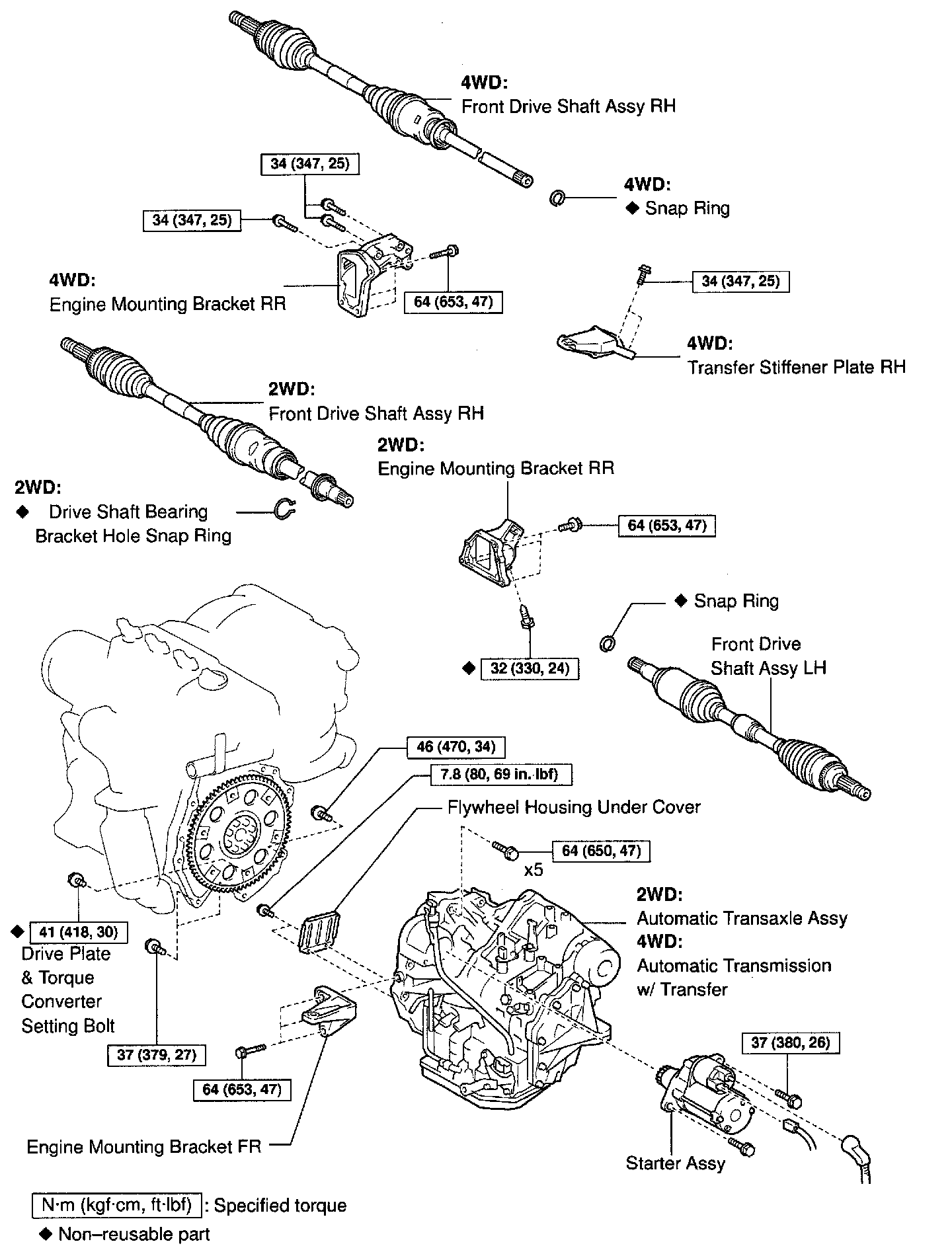

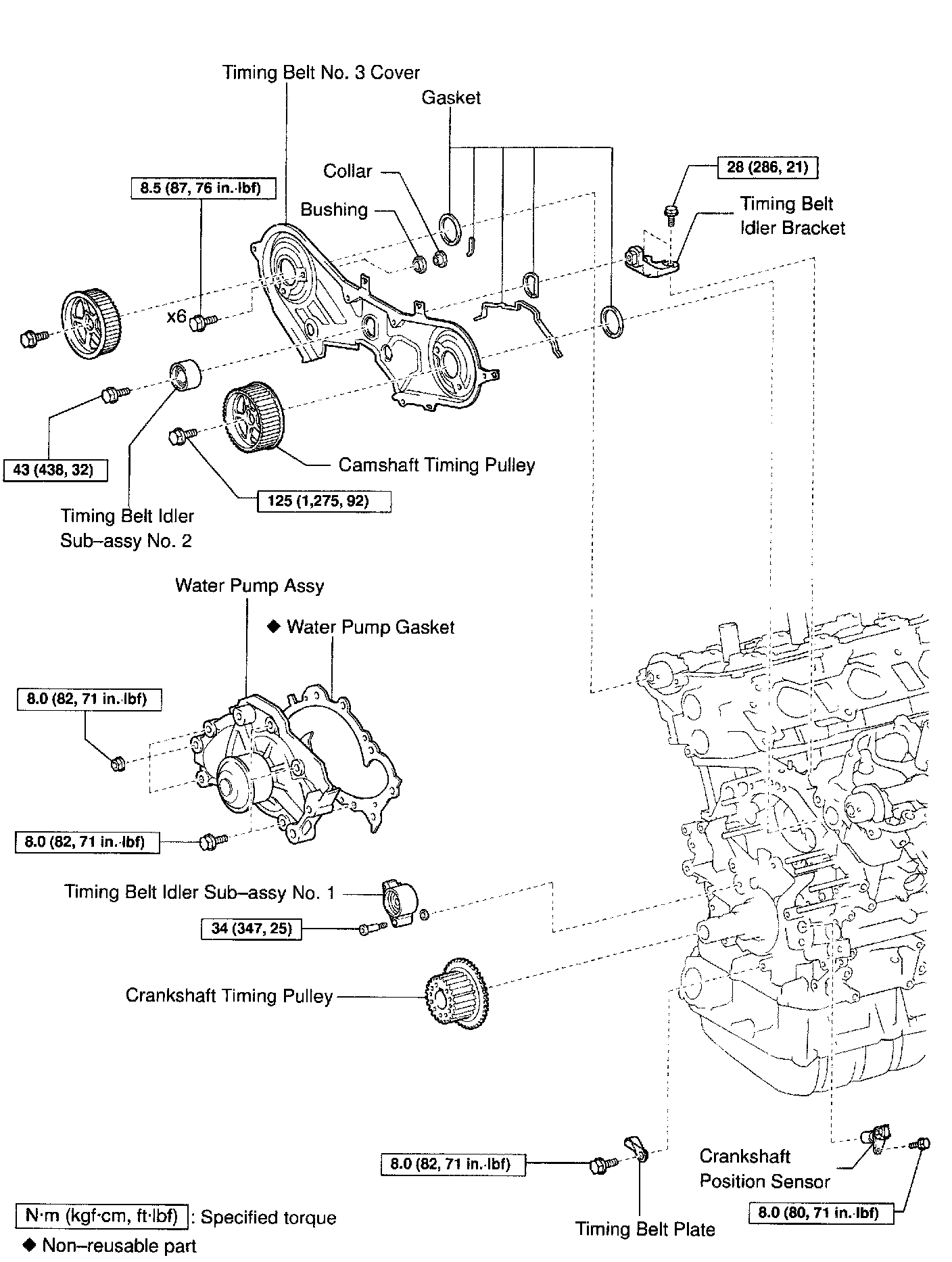

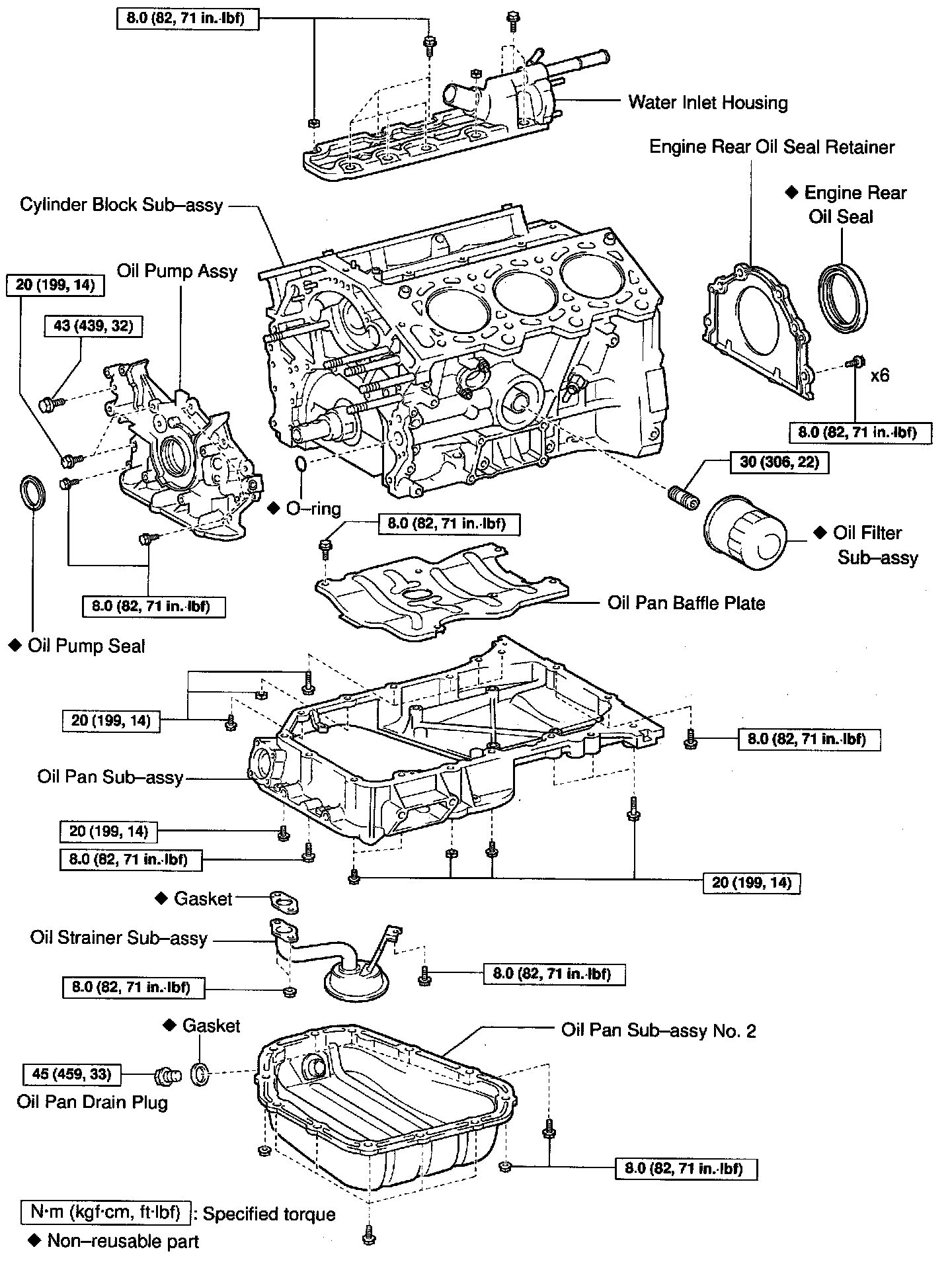

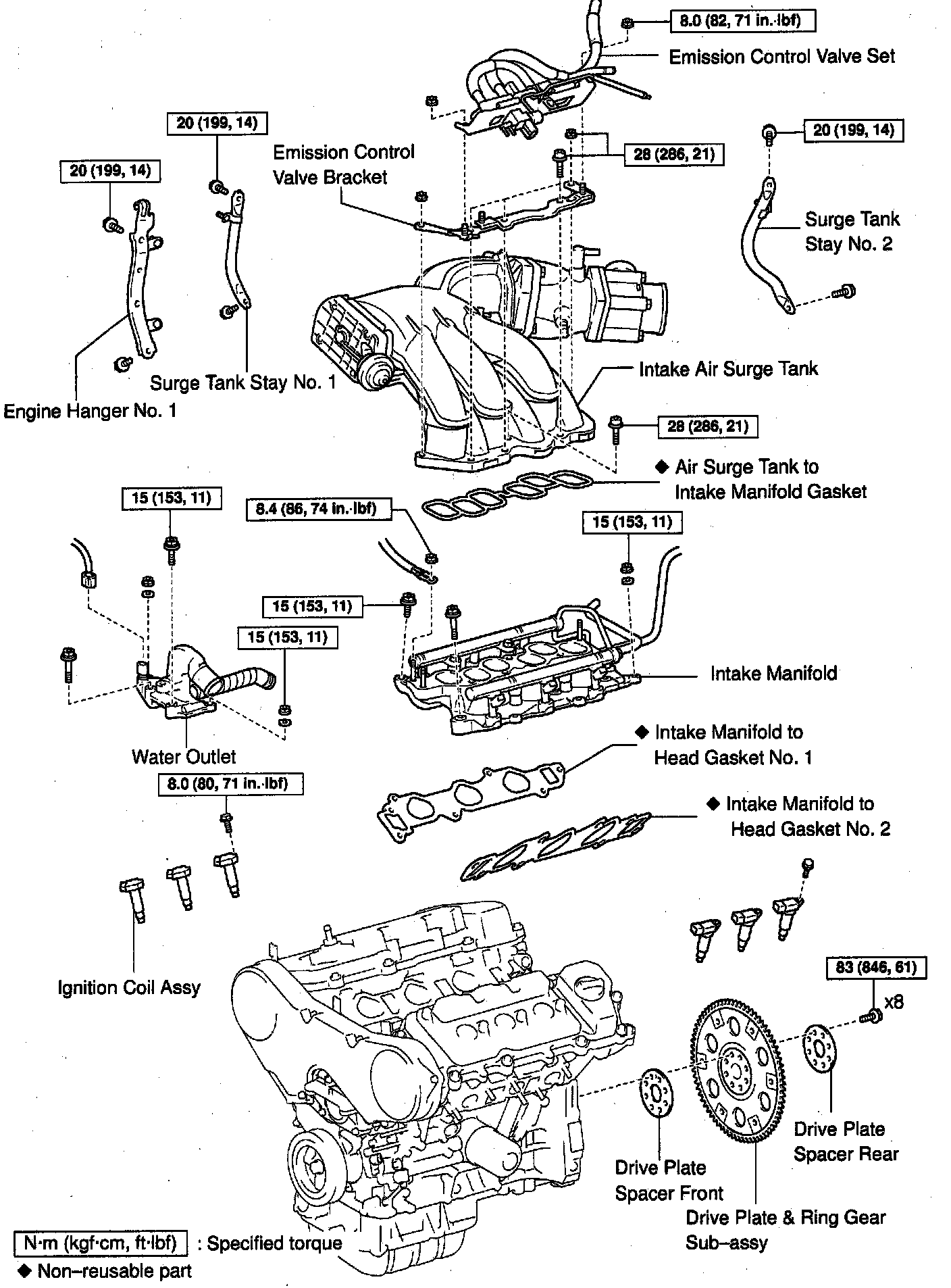

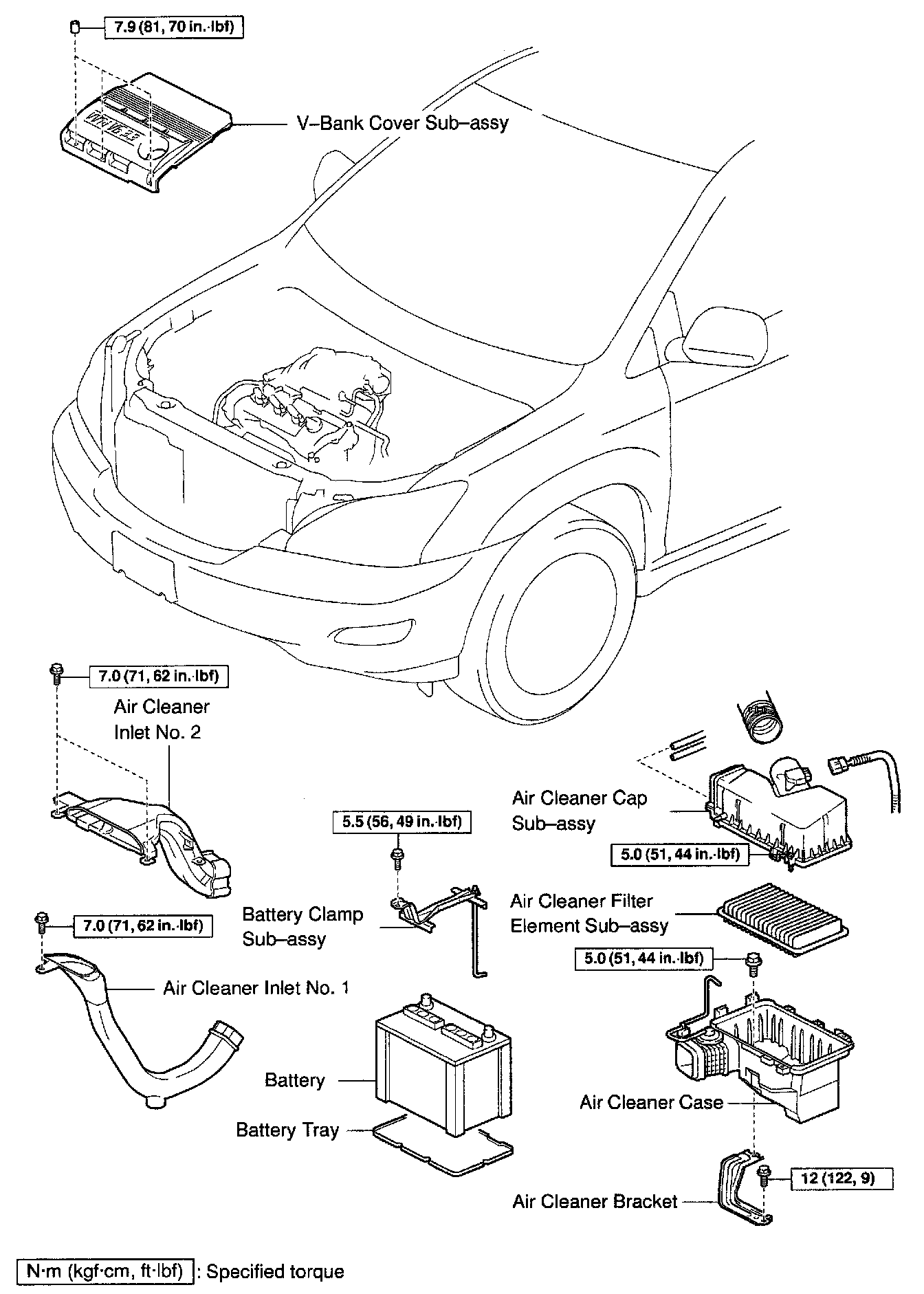

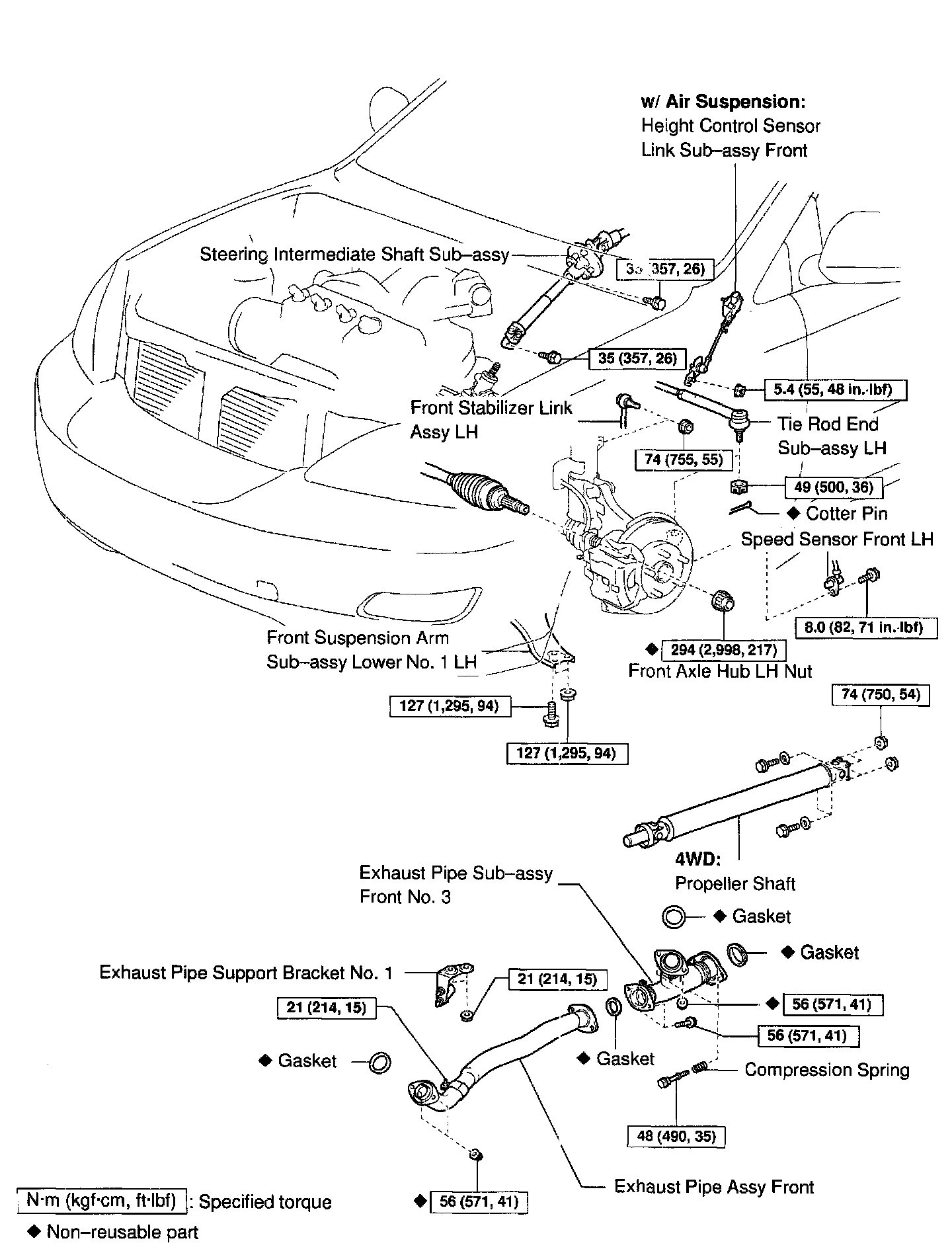

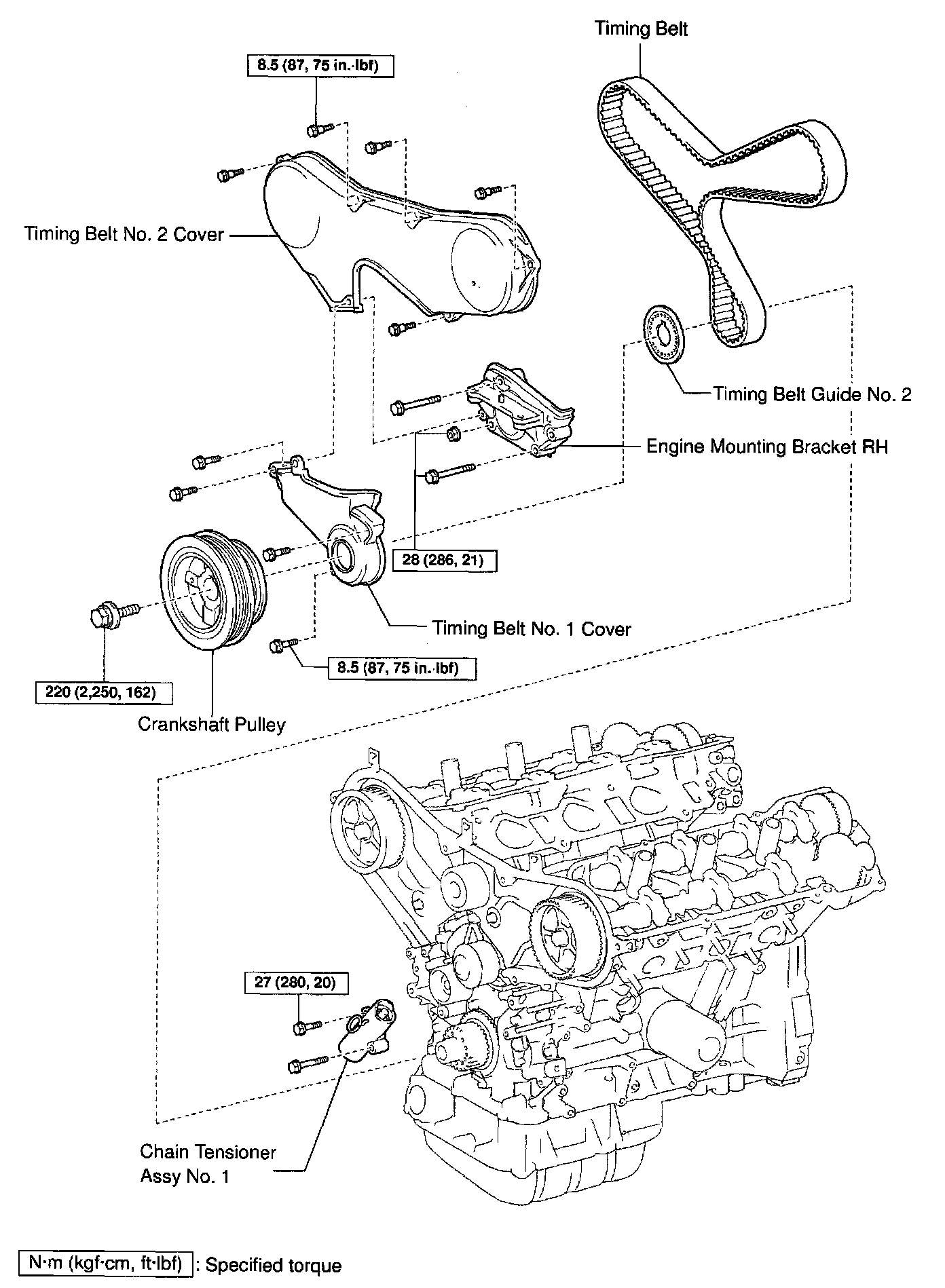

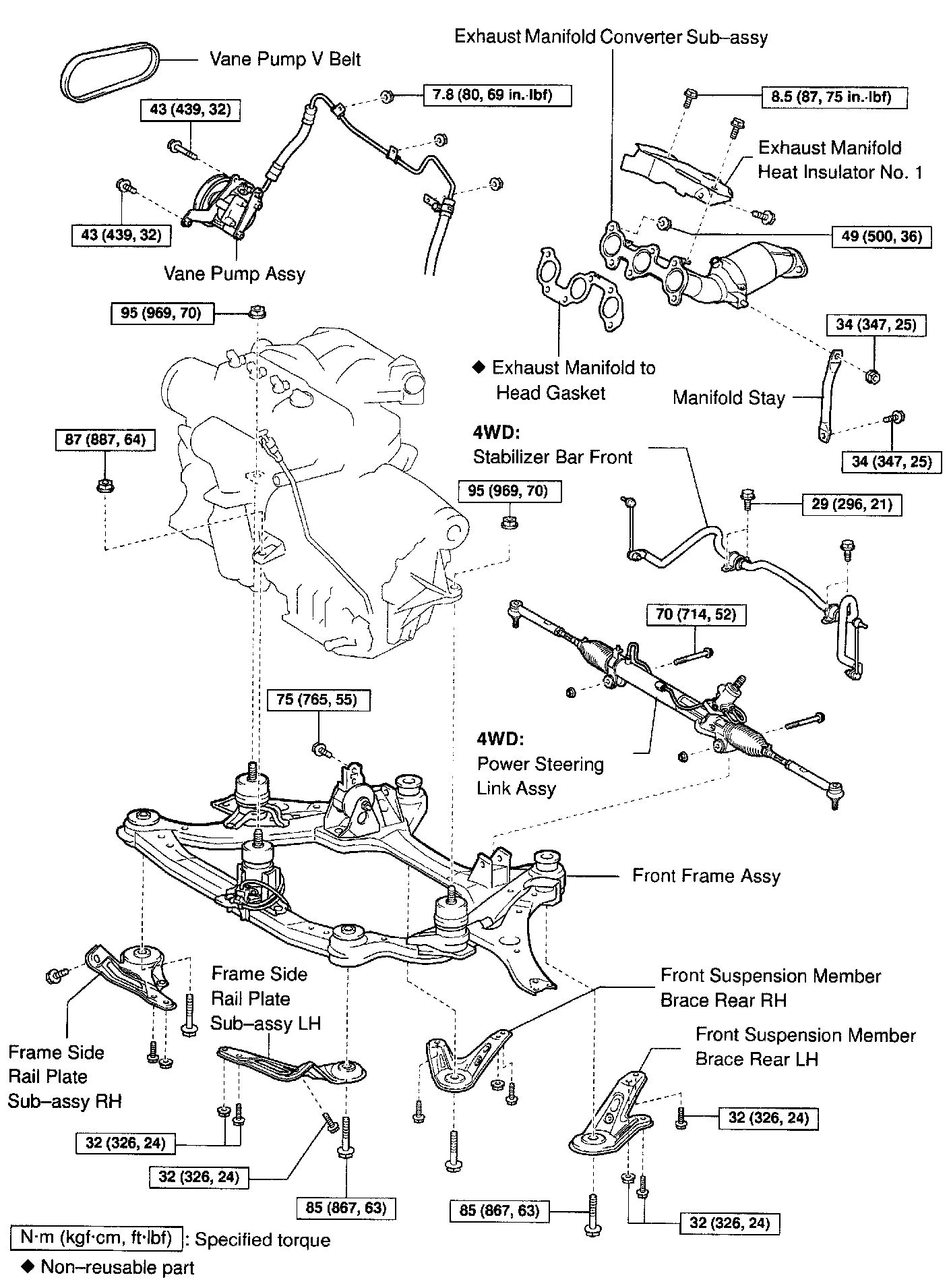

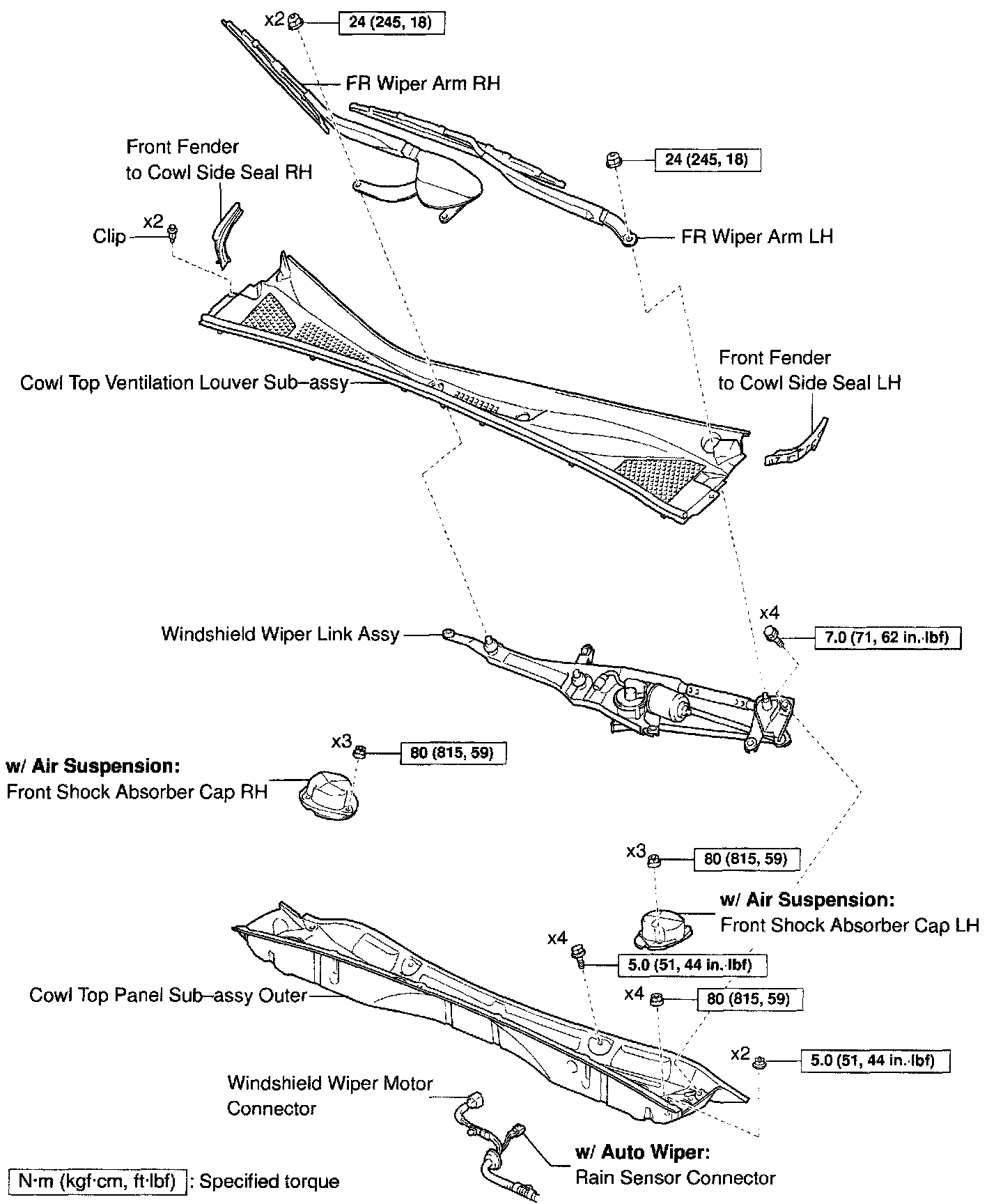

PARTIAL ENGINE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
