Home
>>
Lexus
>>
2004
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

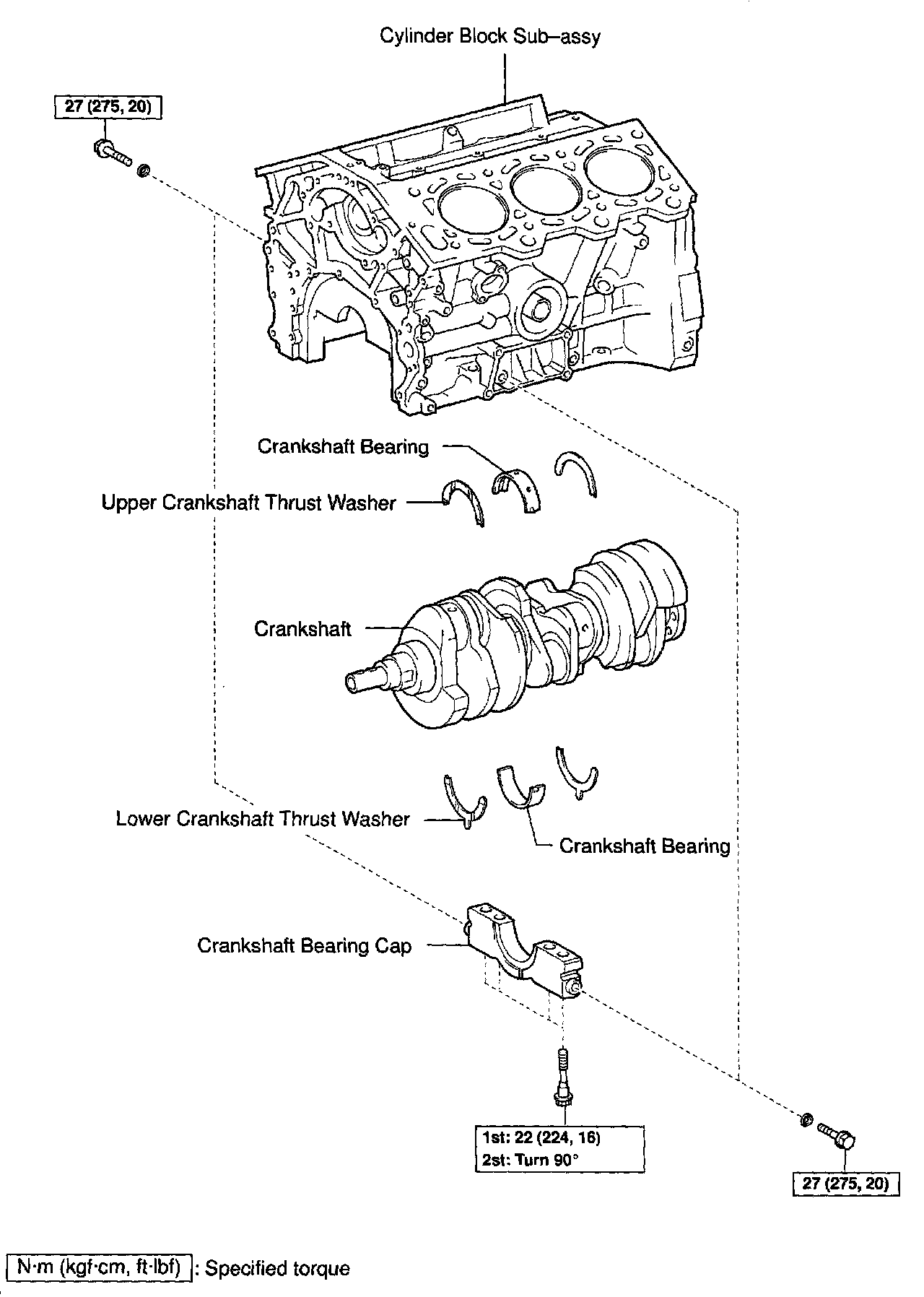

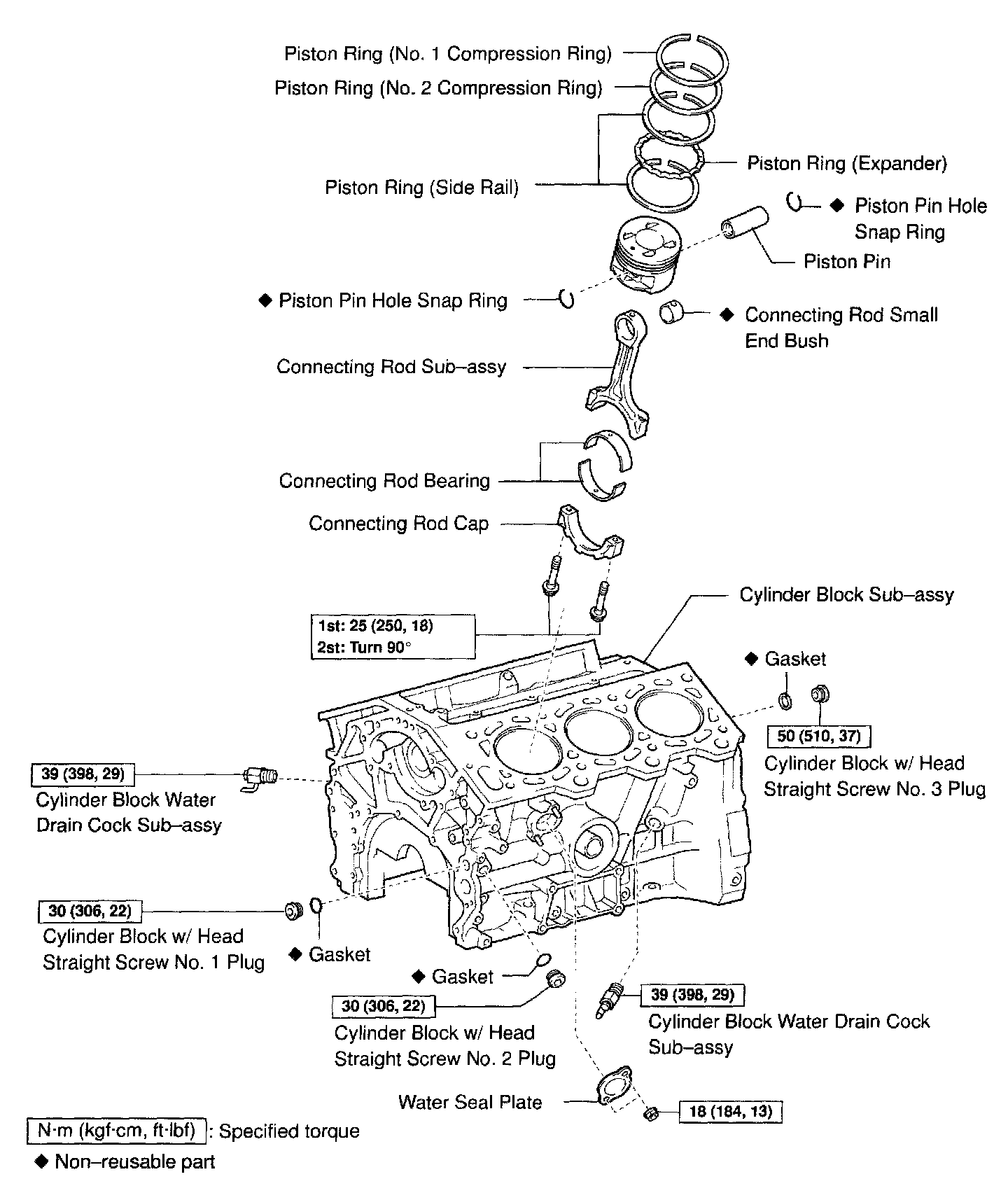

CYLINDER BLOCK ASSY OVERHAUL W/ RELATED COMPONENTS
