Engine Control Module

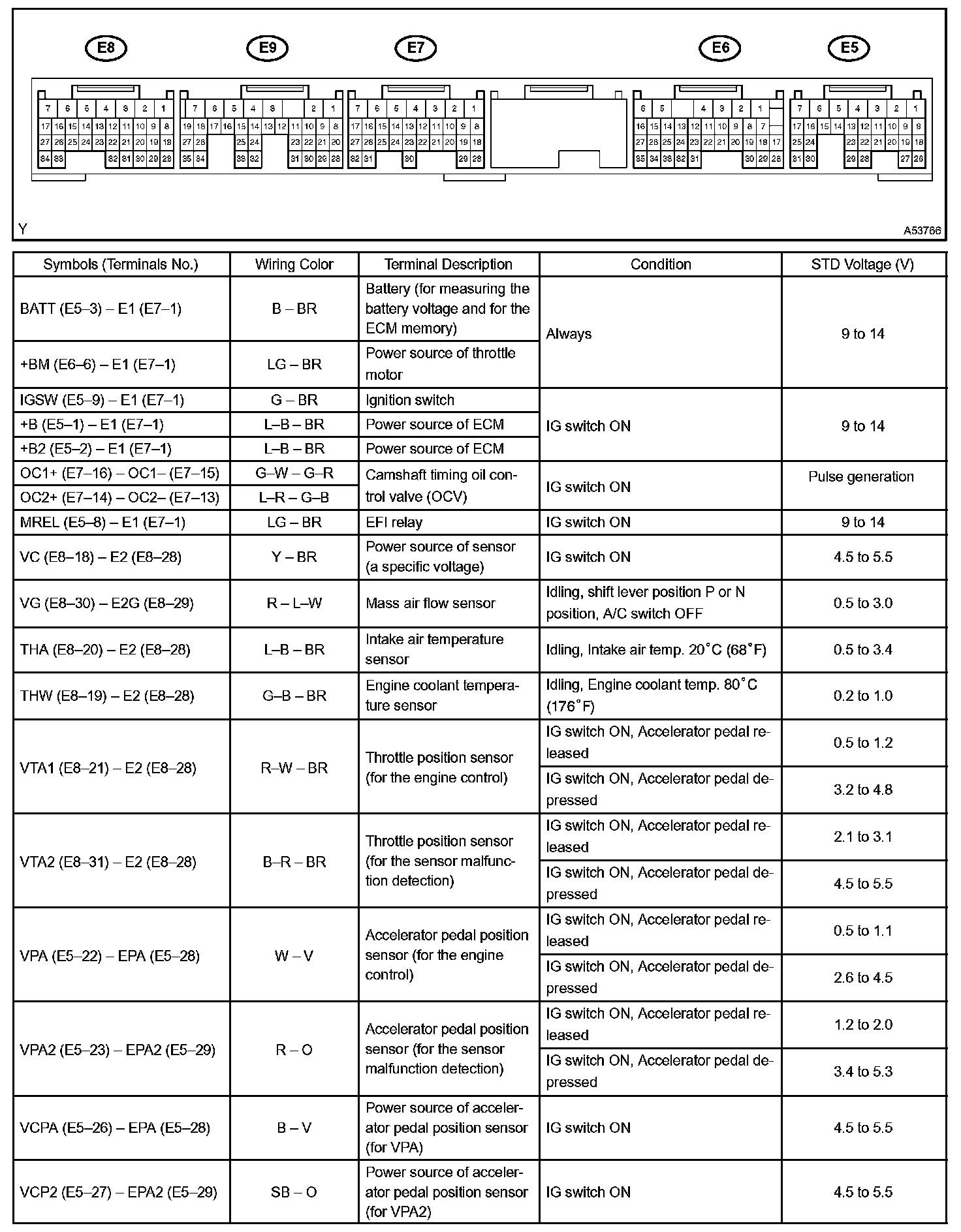

Terminals Of ECM/Pinouts Part 1:

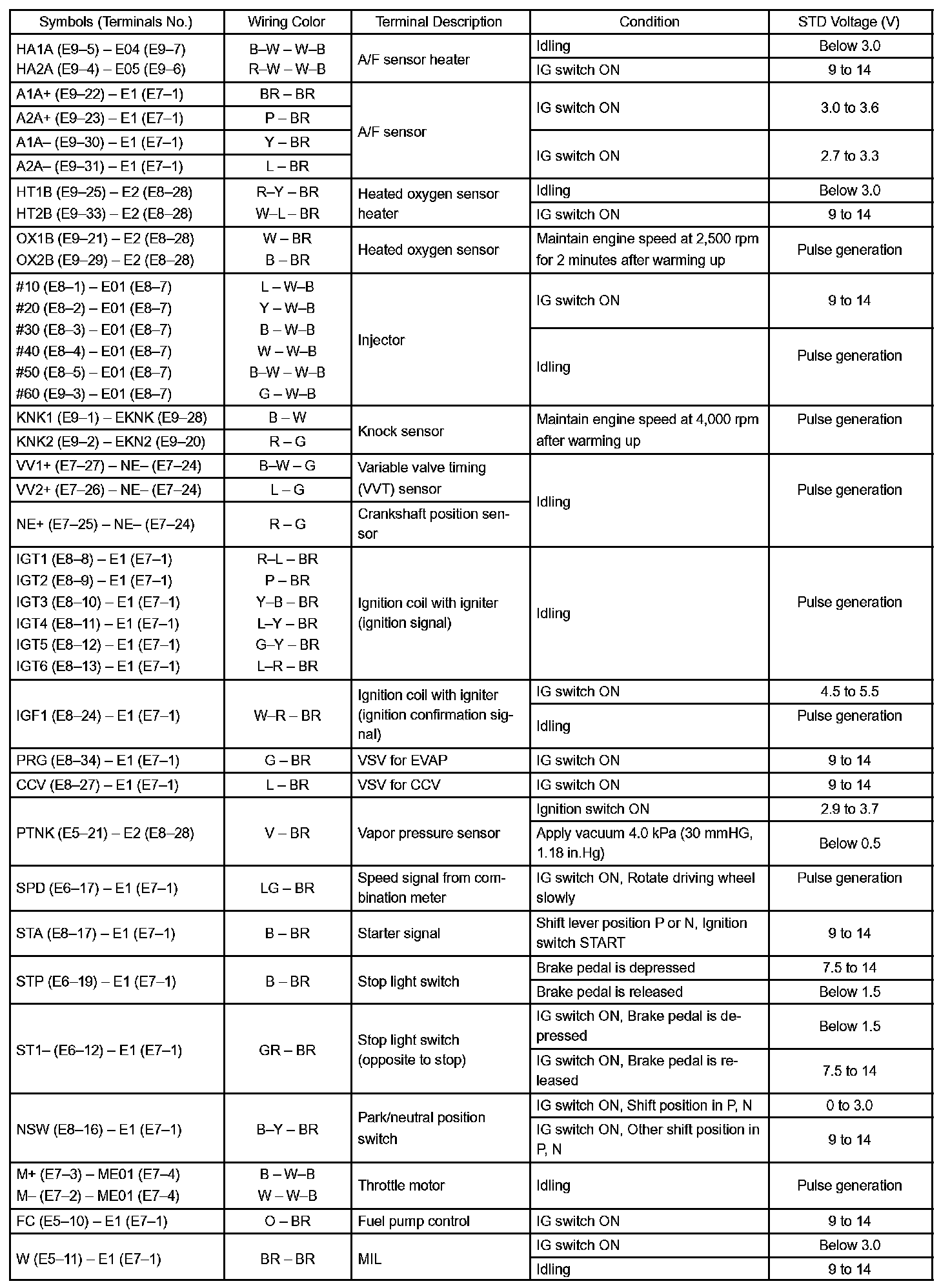

Terminals Of ECM/Pinouts Part 2:

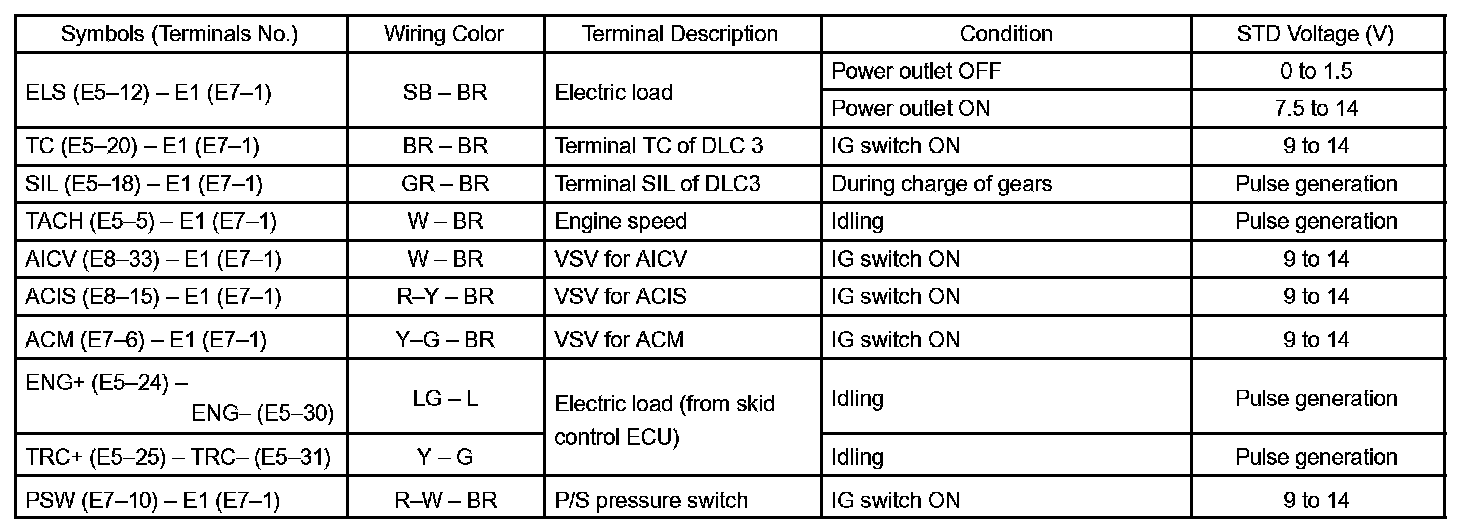

Terminals Of ECM/Pinouts Part 3:
