Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Front Door >> Components

Front Door: Components

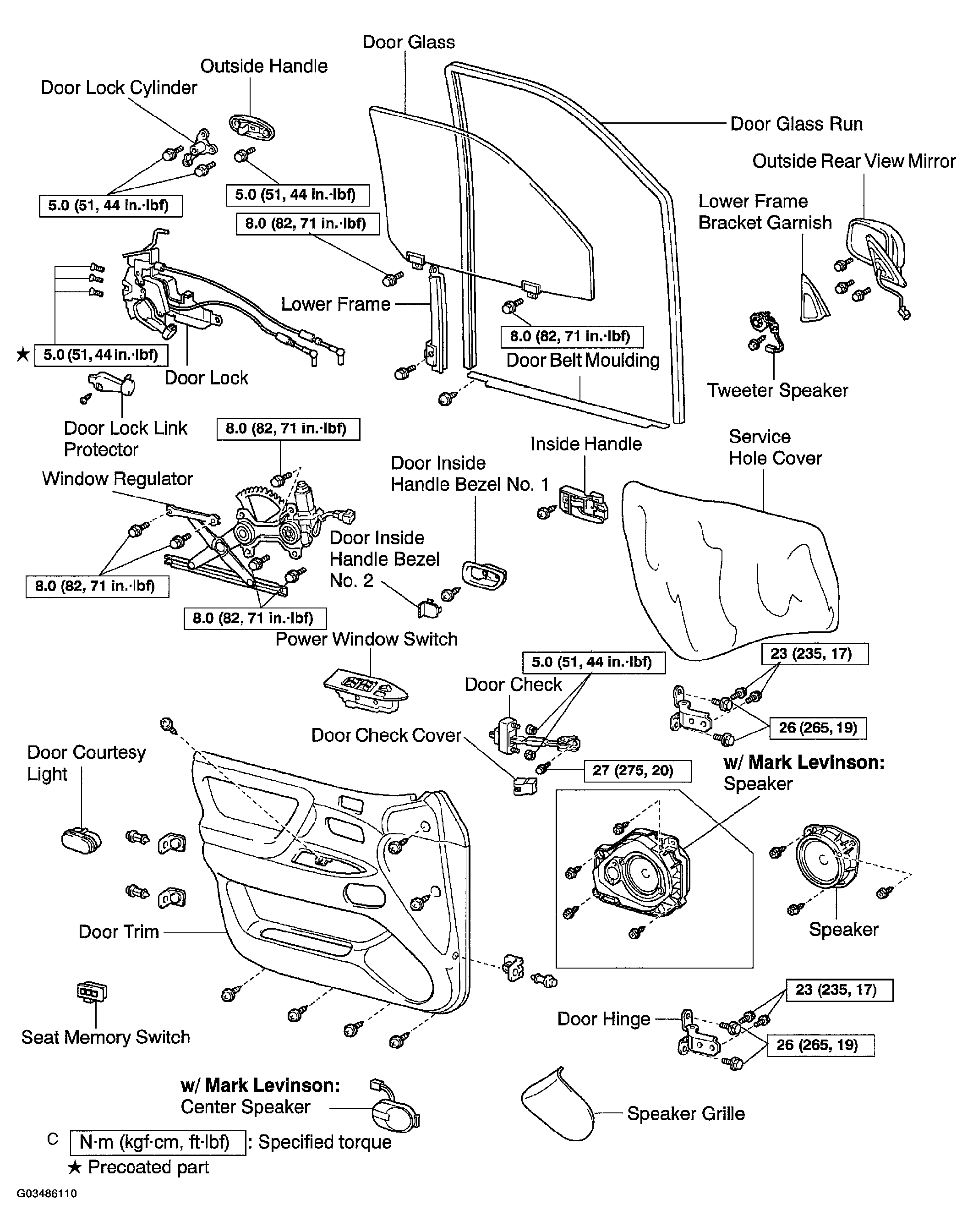

Fig 1: Exploded View Of Front Door

G03486110

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
