Rear

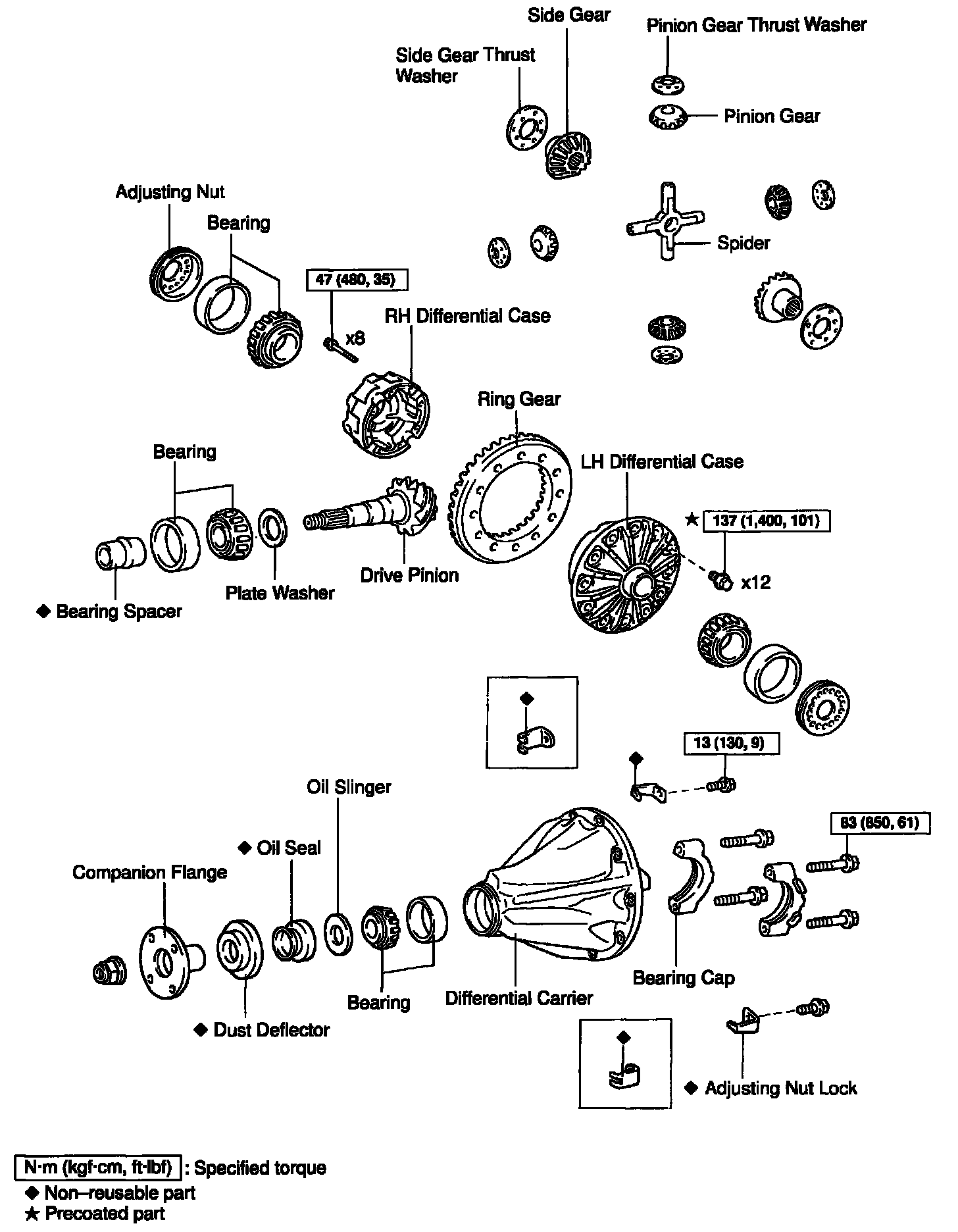

Part 1 Of 2:

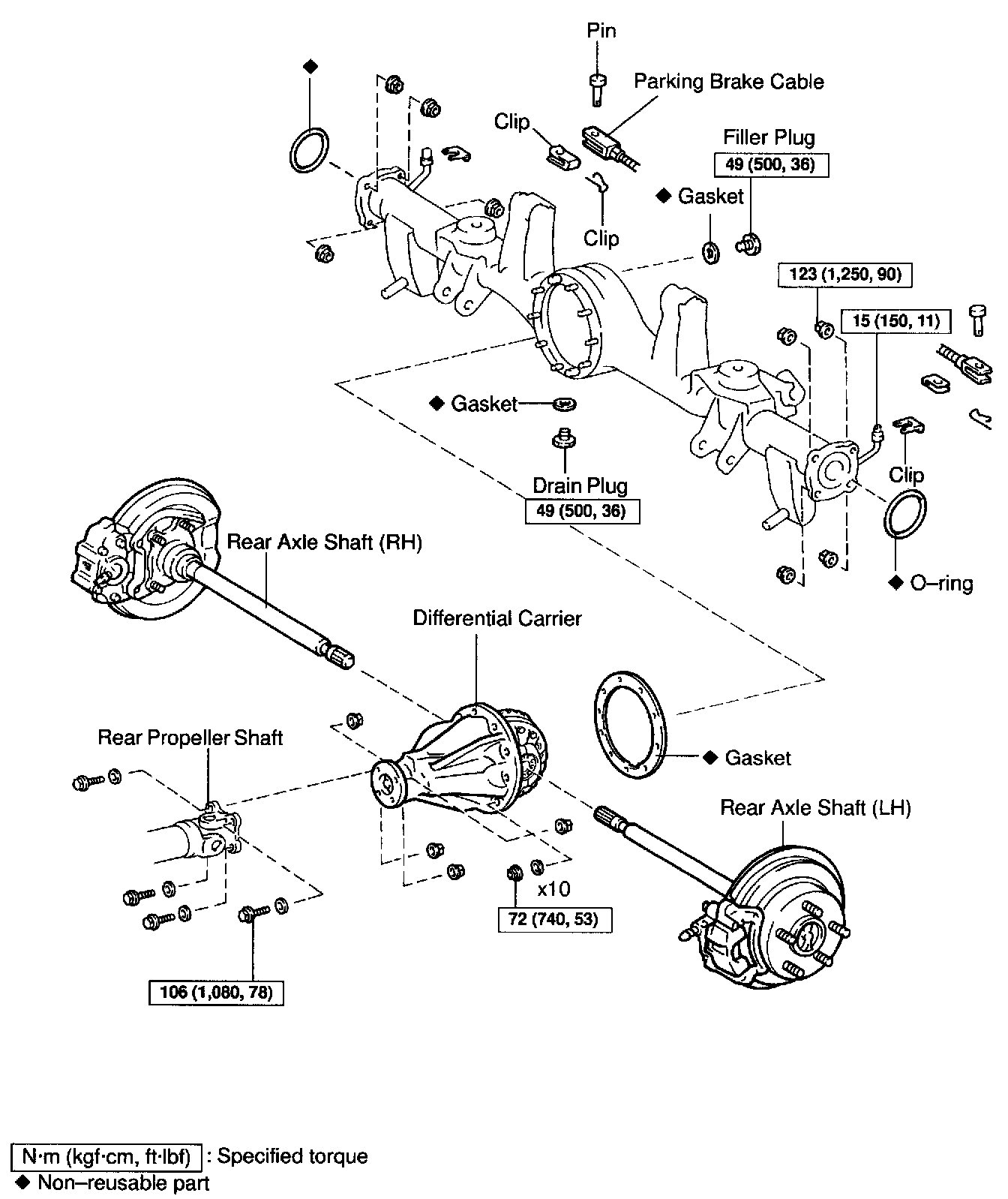

Part 2 Of 2:

REAR DIFFERENTIAL CARRIER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
