System Diagram

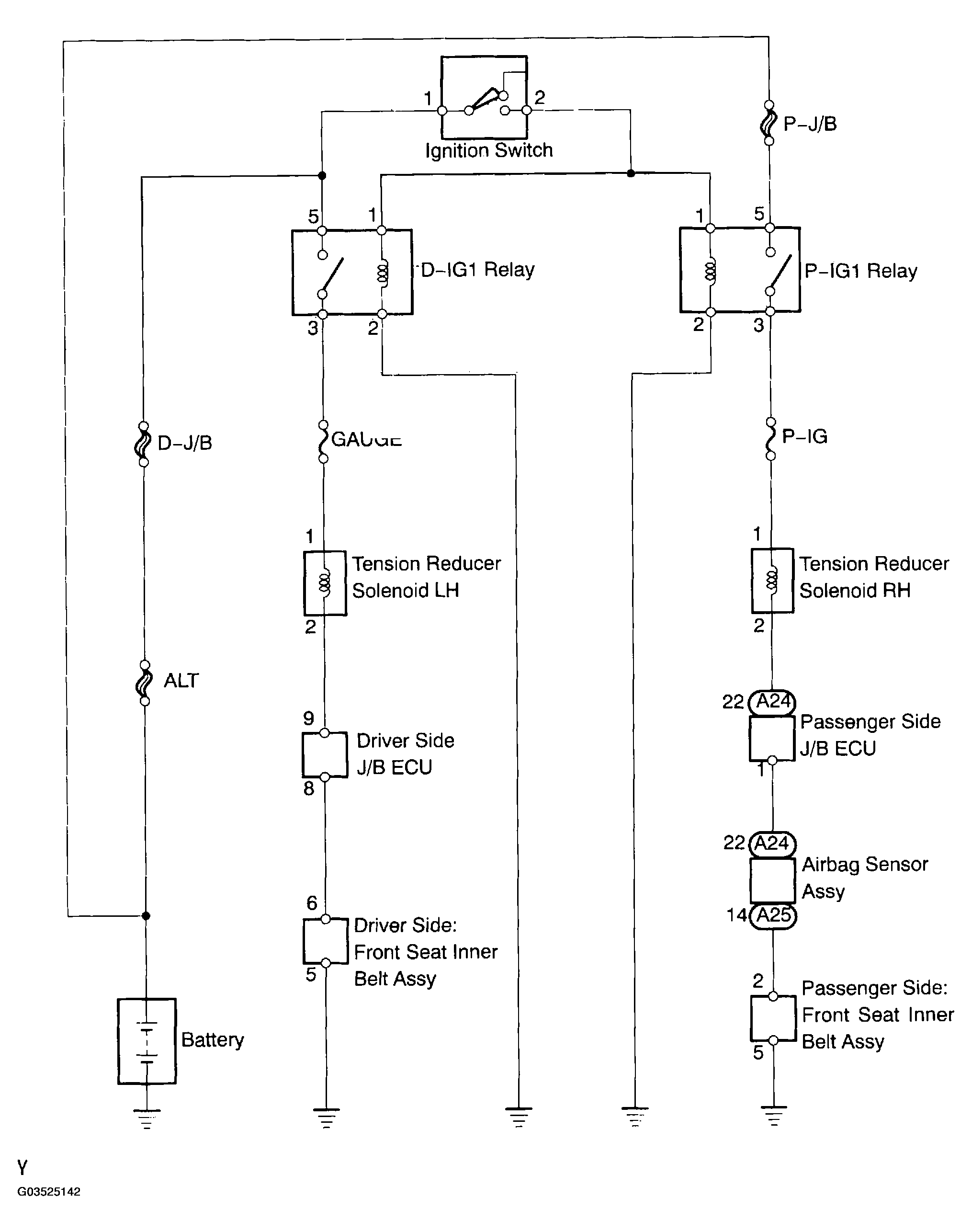

Fig 1: Seat Belt Tension Reducer System Circuit Diagram

G03525142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
