Front Seat Belt With PRETENSIONER: Components

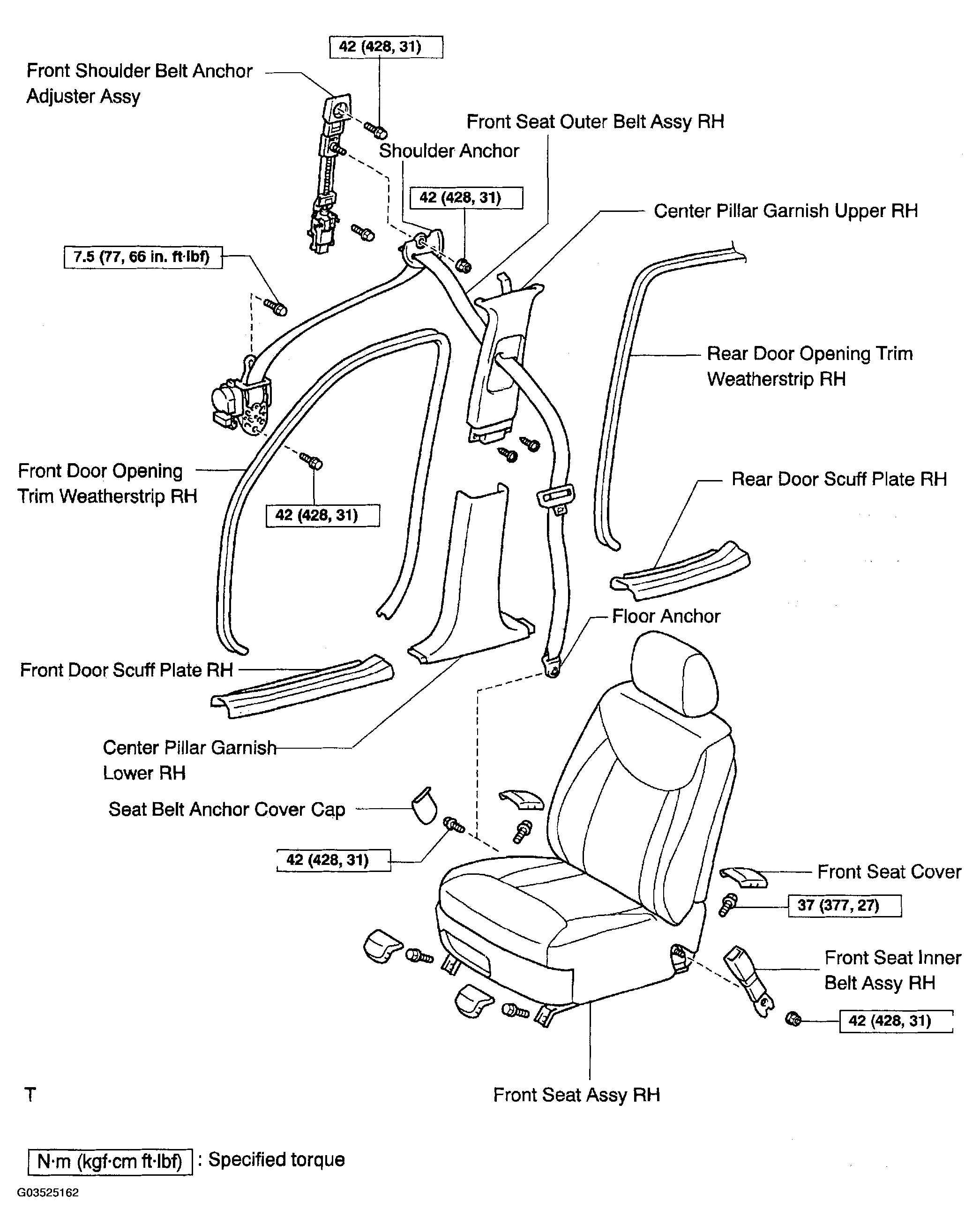

Fig 1: Exploded View Of Front Seat Belt Components And Torque Specifications

G03525162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
