Power Door Lock Control System







Connector disconnected:

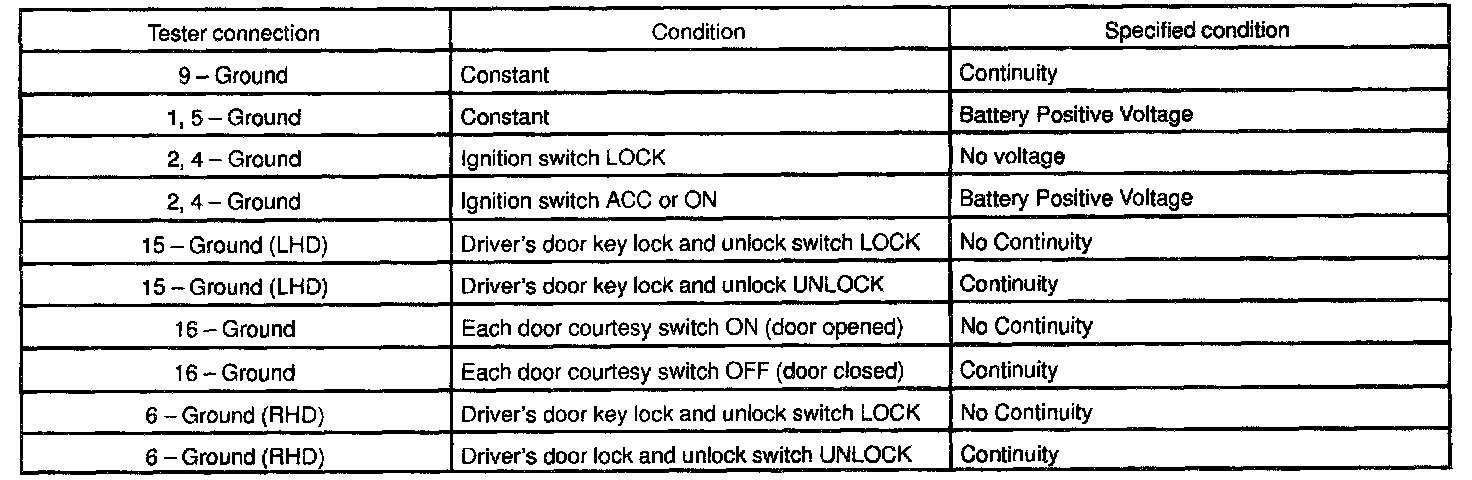

INSPECT POWER WINDOW MASTER SWITCH CIRCUIT
Disconnect the connectors from the switch and inspect connector on the wire harness side.
If circuit is not as specified, replace the switch.

INSPECT POWER WINDOW MASTER SWITCH CIRCUIT
