Shift Lock System: Location

WARNING: This page is about a different variant/trim than selected.

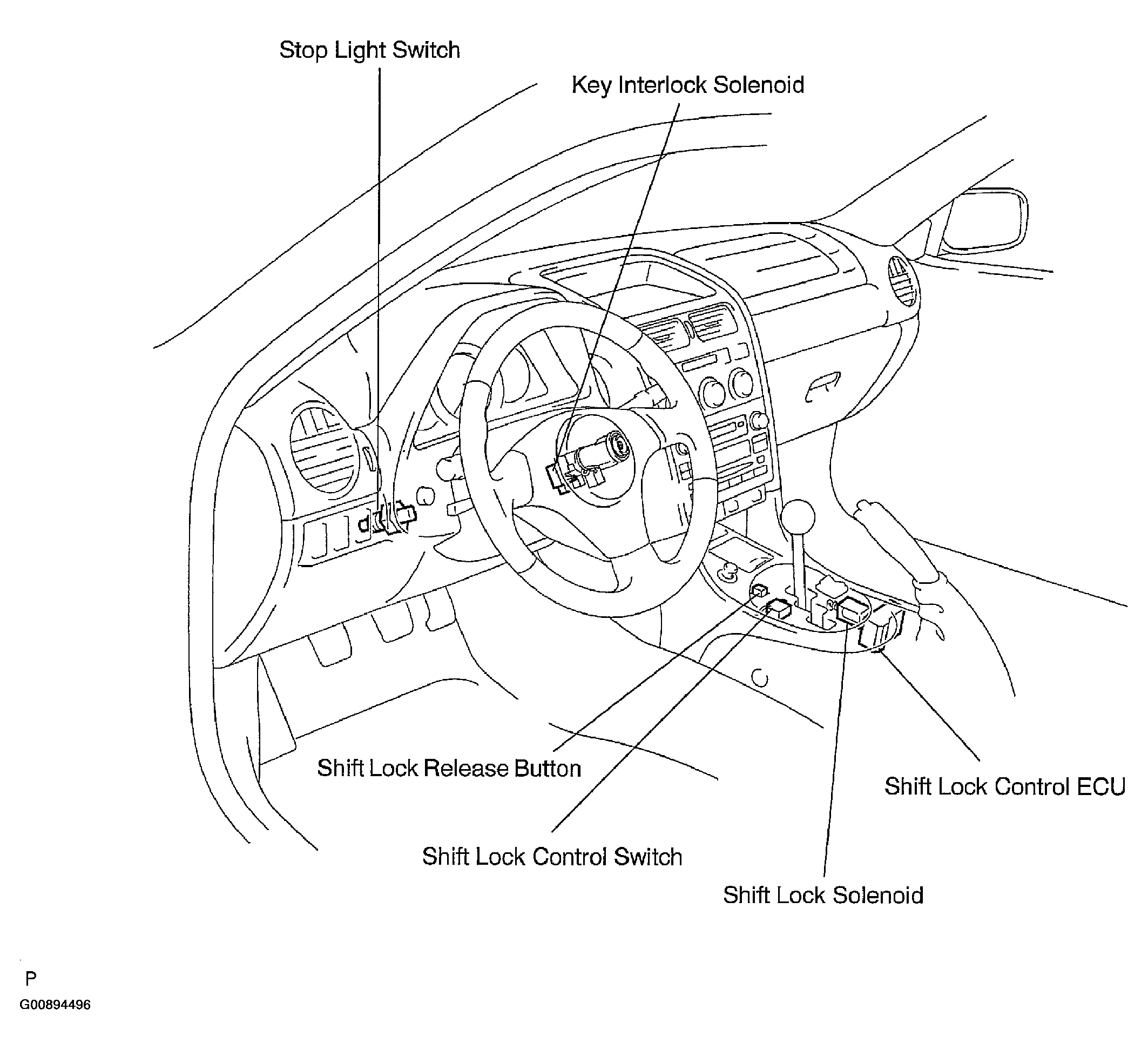

Fig 1: Identifying Shift Lock System Electrical Components Location
G00894496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
