Front Door: Components

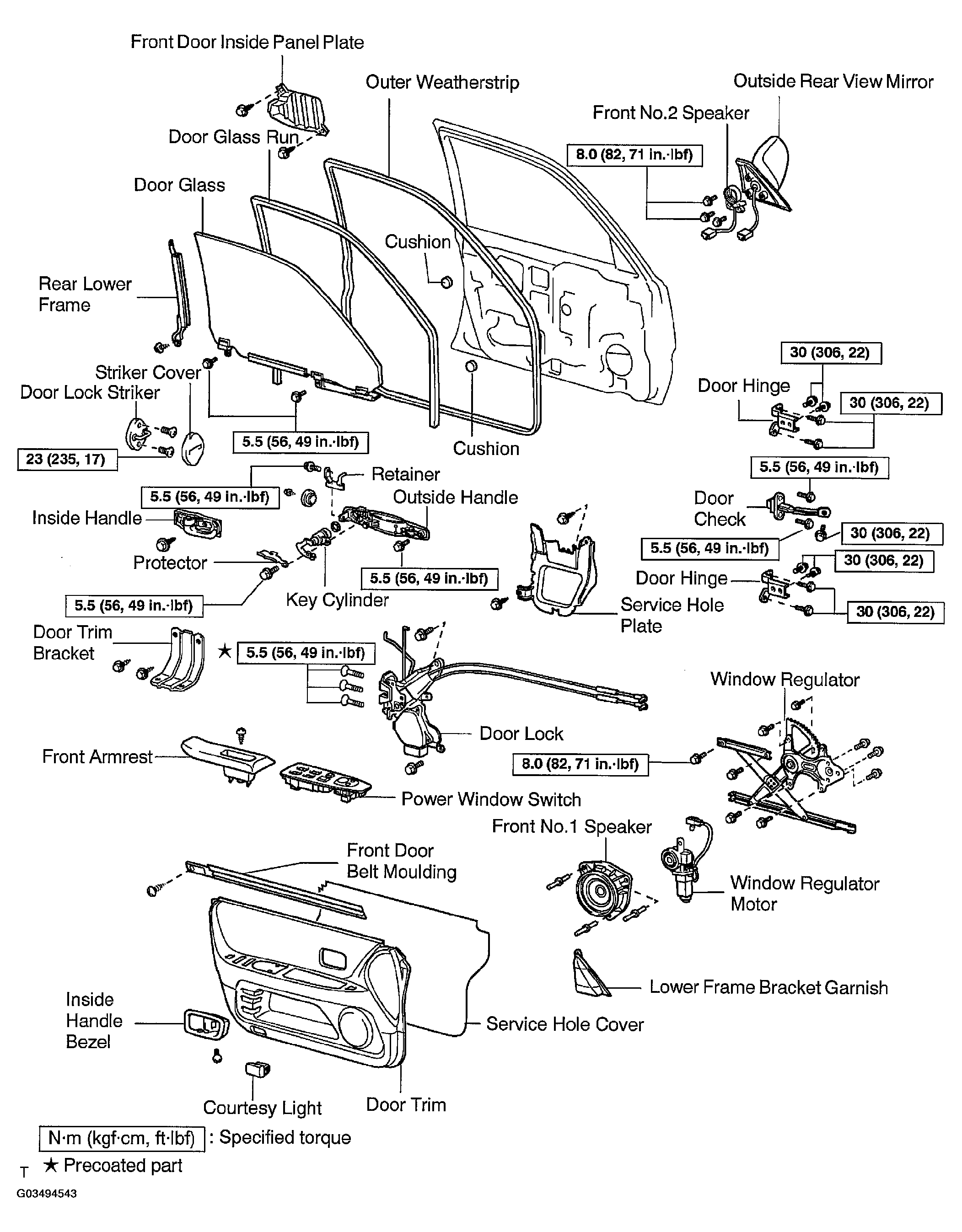

Fig 1: Identifying Front Door Components

G03494543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
