Quarter Window ASSY LH Components
Quarter Window ASSY LH Components

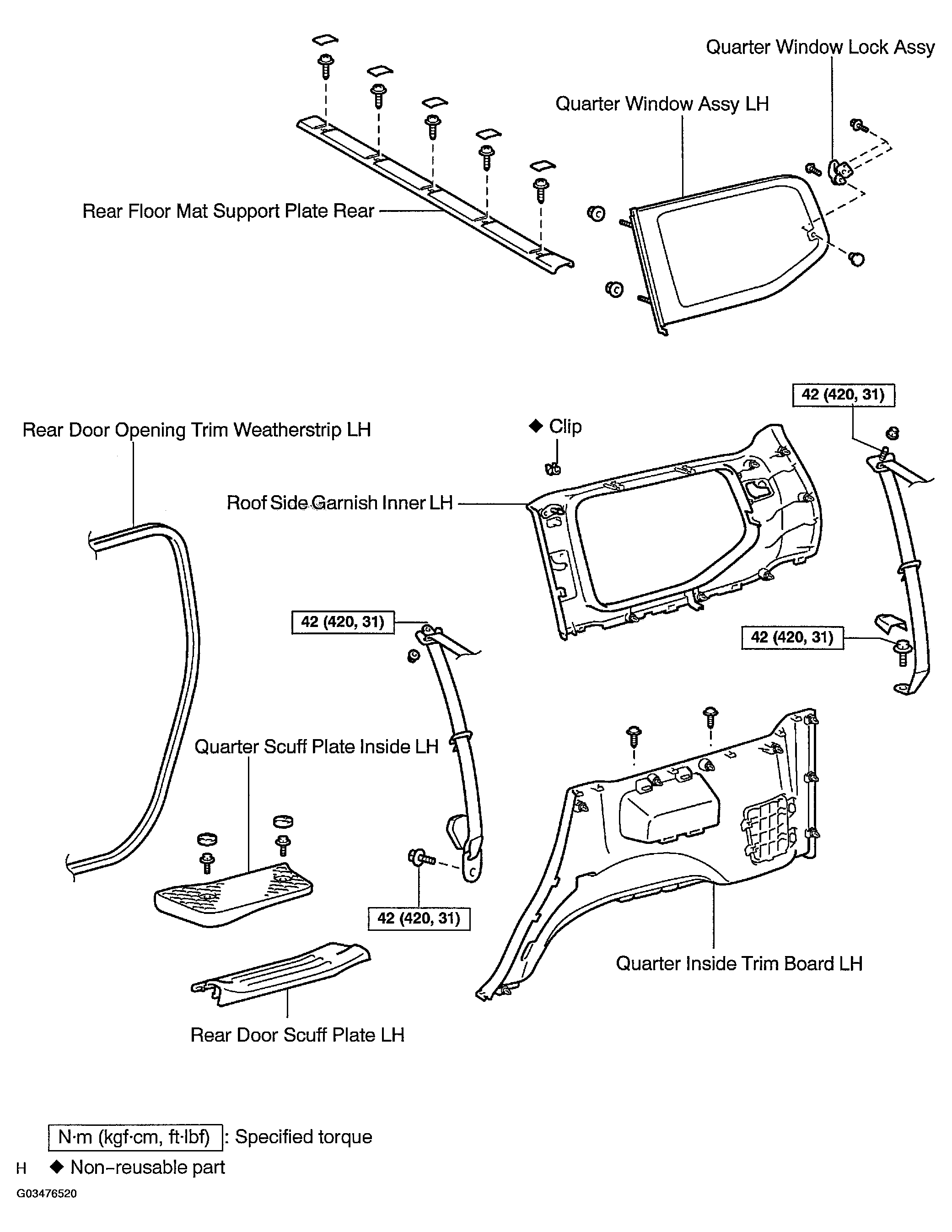

Fig 1: Identifying Quarter Window Assy LH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
