Automatic Transmission - Diagnostics
>>
Problem Symptoms Table
>>
Chapter 3: Off-Vehicle Repair
Chapter 3: Off-Vehicle Repair

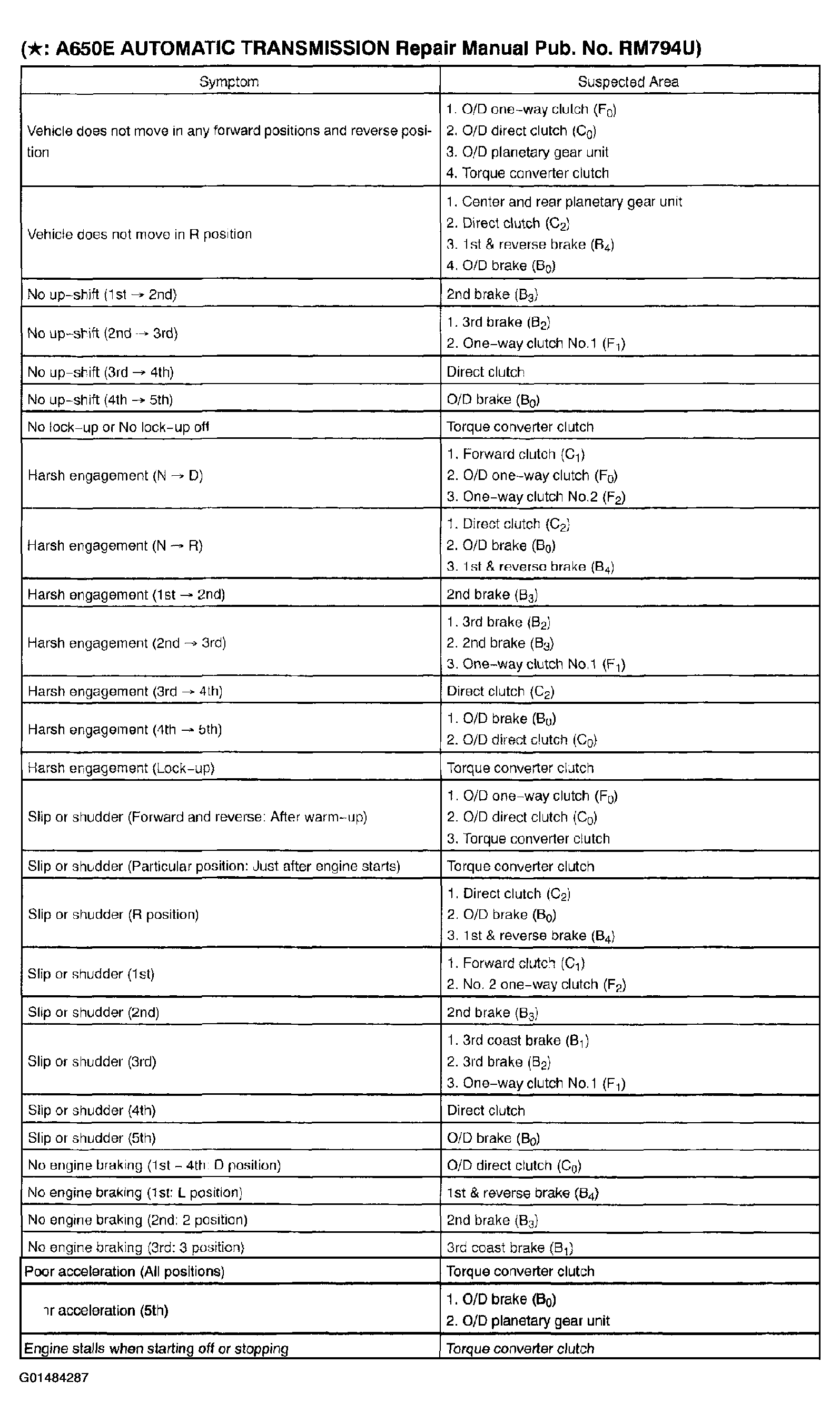

Fig 1: Chapter 3: Off-Vehicle Repair Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
