Home >> Lexus >> 2004 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations

Door Module: Locations

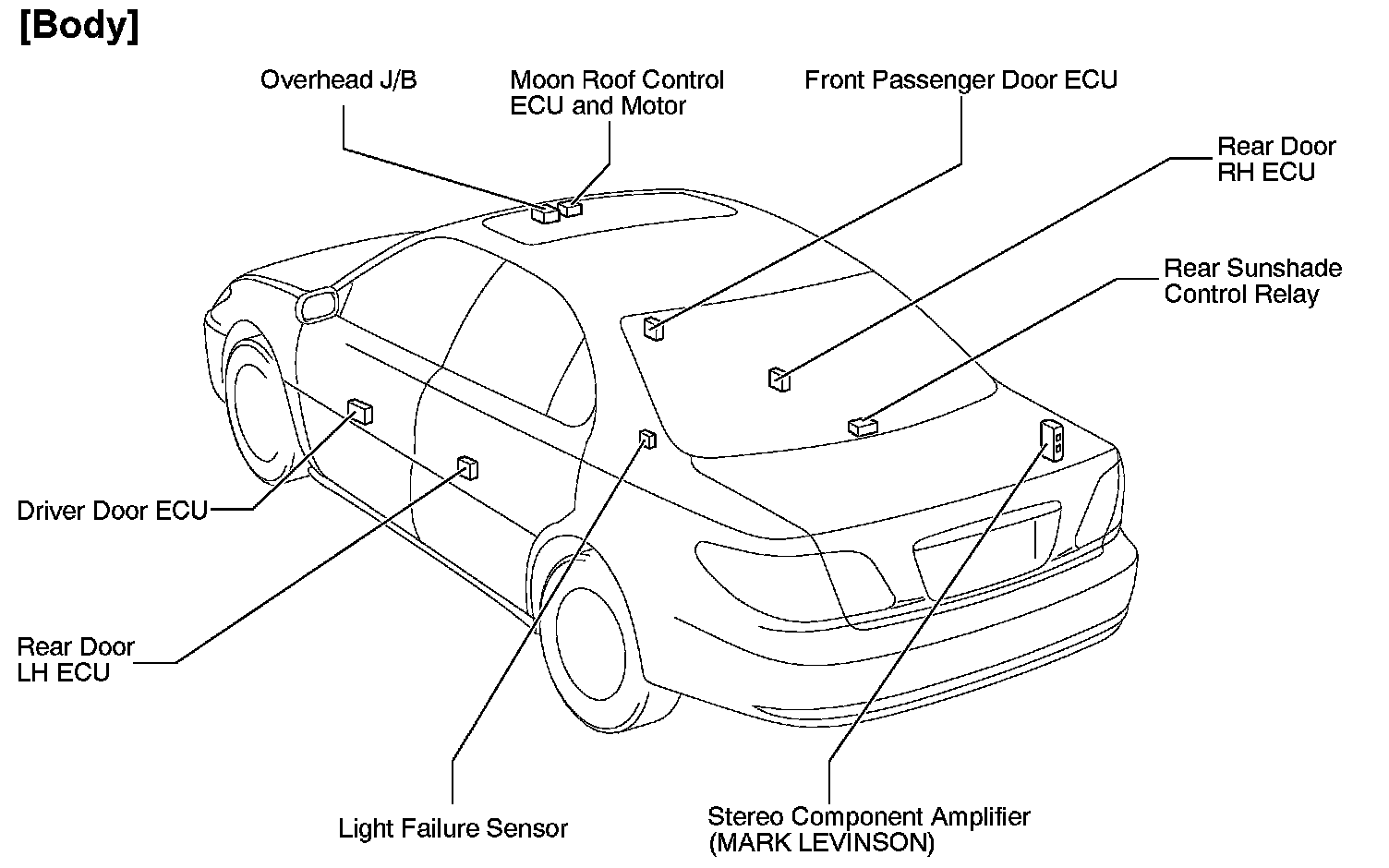

Body:

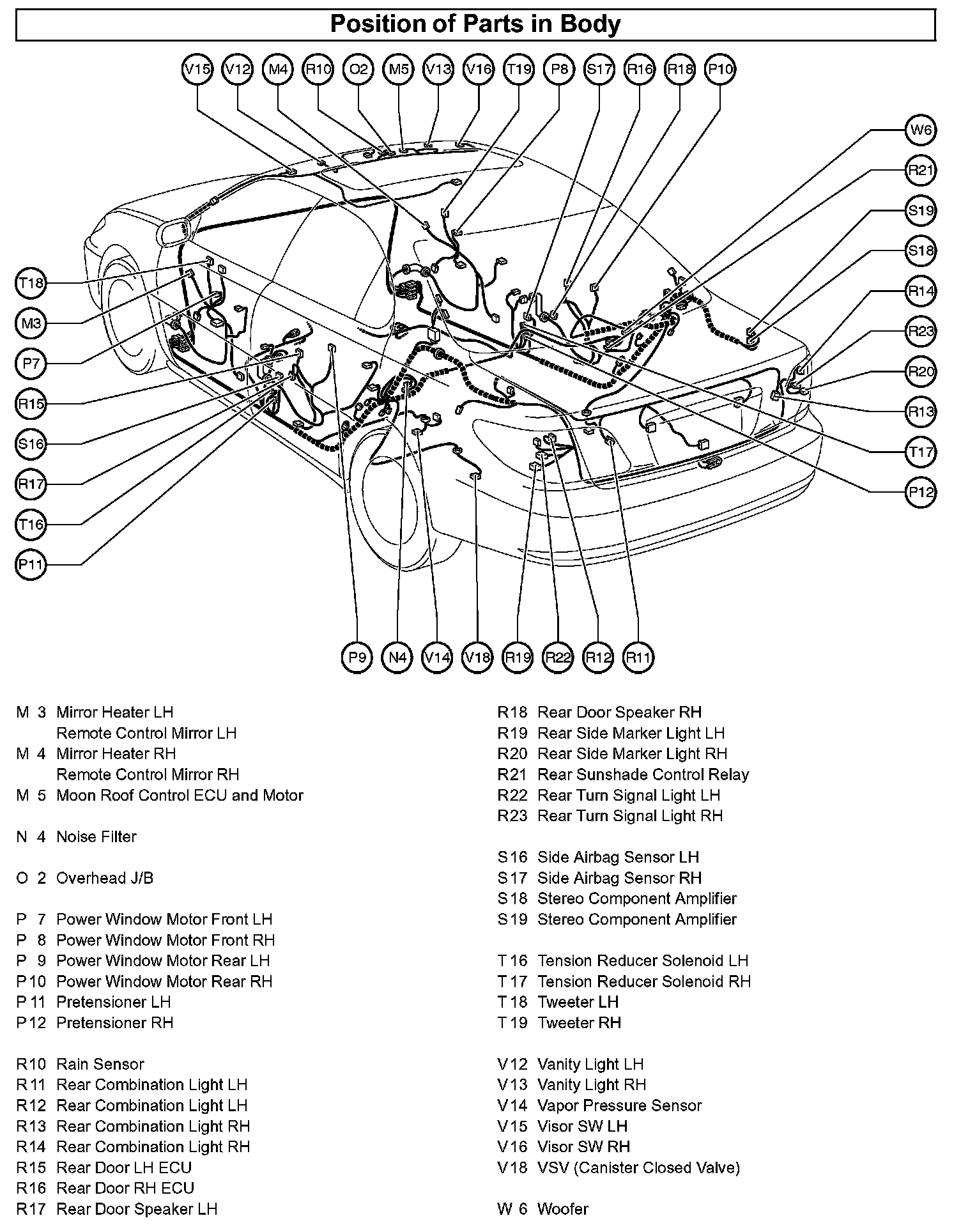

Position Of Parts In Body:

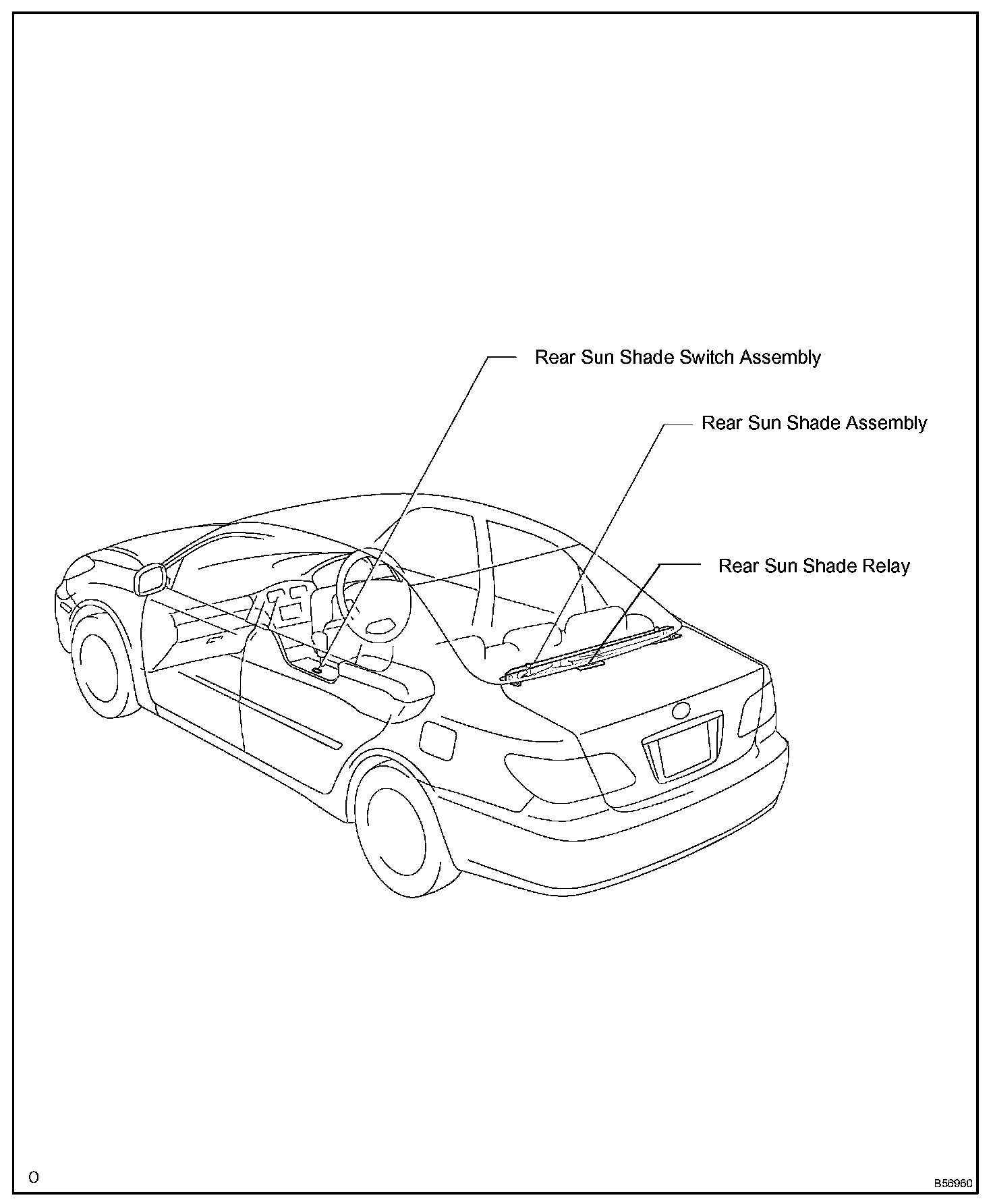

Power Rear Sun Shade System:
