Control Module: Testing and Inspection

TERMINALS OF ECM

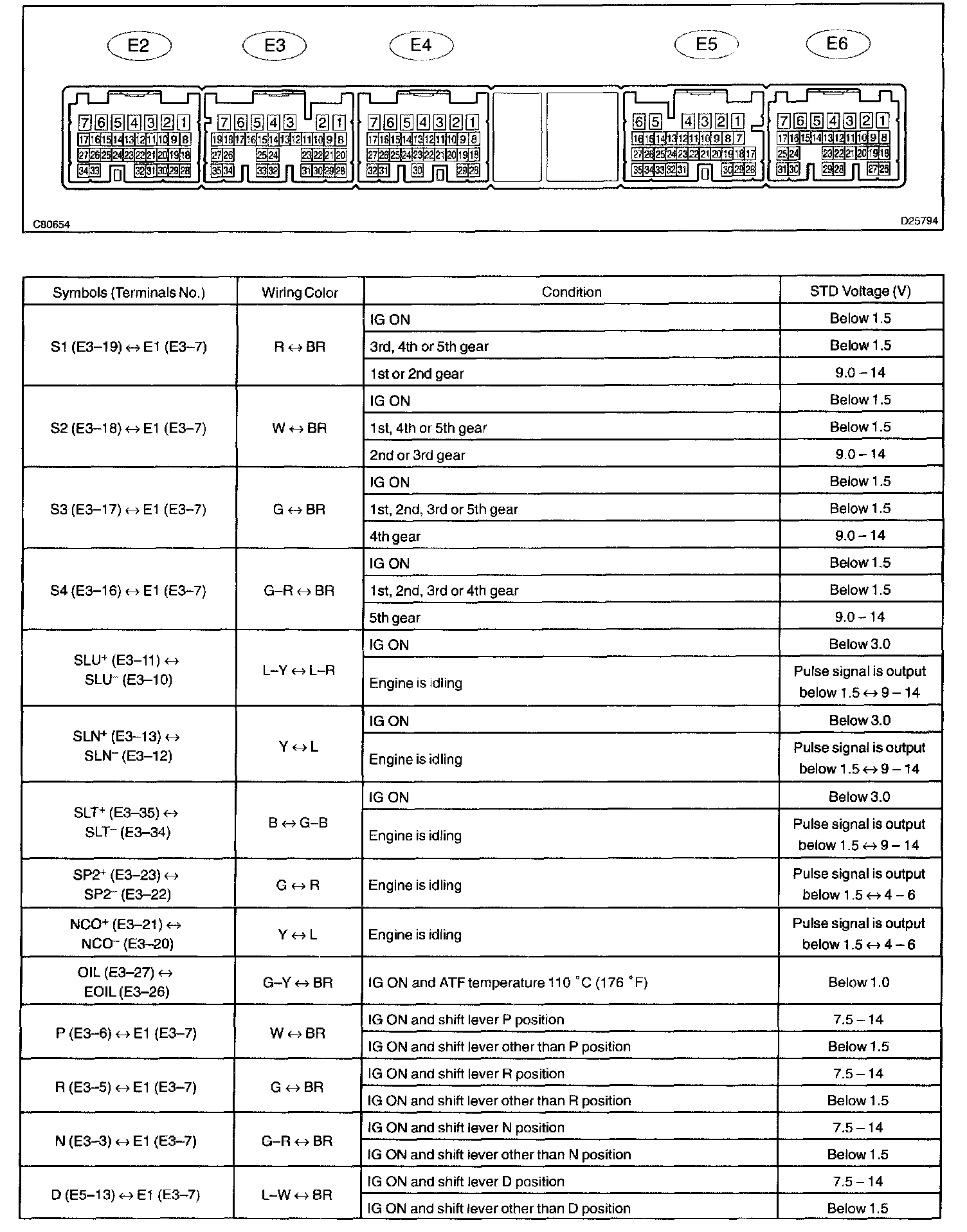

Terminals Of ECM/Pinouts Part 1:




Terminals Of ECM/Pinouts Part 2:

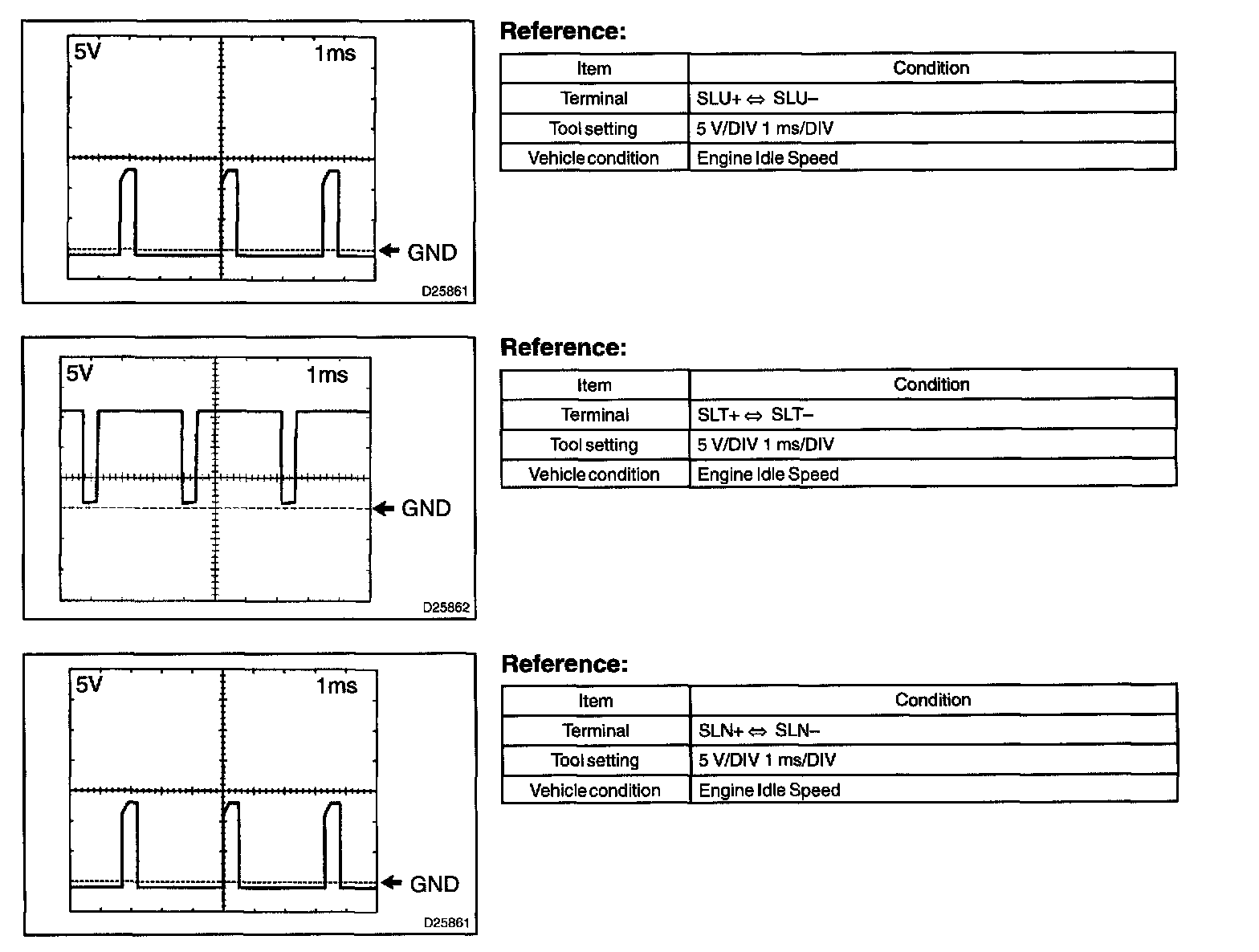

Oscilloscope Wave Forms Part 1:

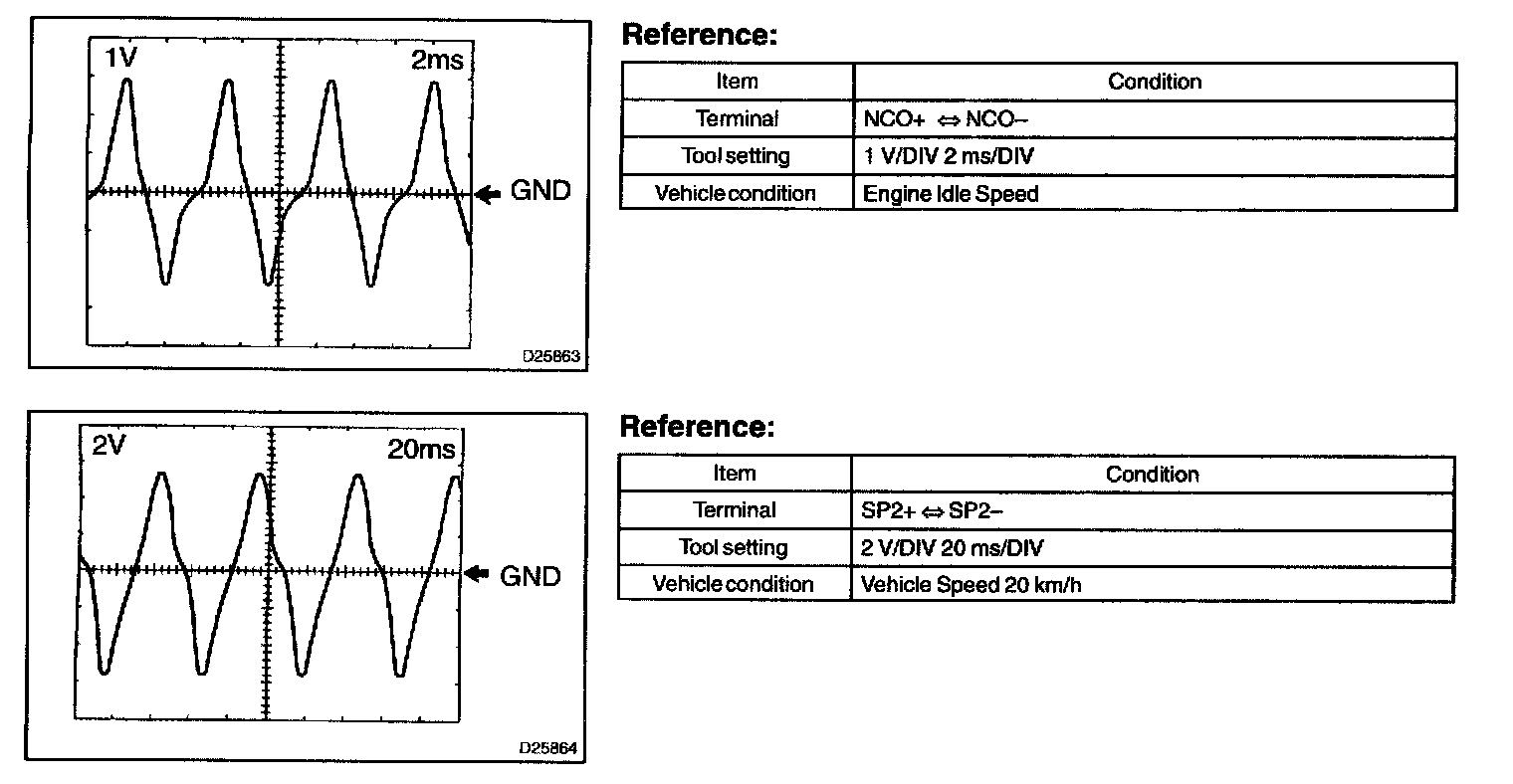

Oscilloscope Wave Forms Part 2:
