Intake Manifold

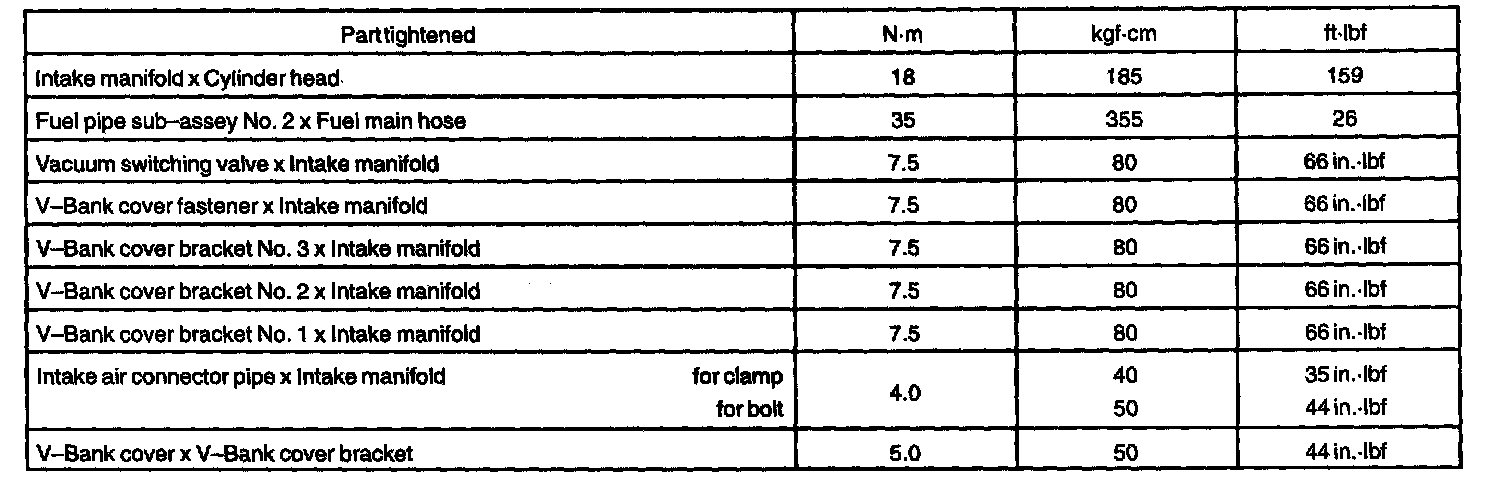

Intake Manifold Torque Specifications

Intake Manifold Torque Specifications:






Intake Manifold Gasket Information:




Face the white painted side upward.

Intake Manifold Gaskets:
