Information Bus: Locations

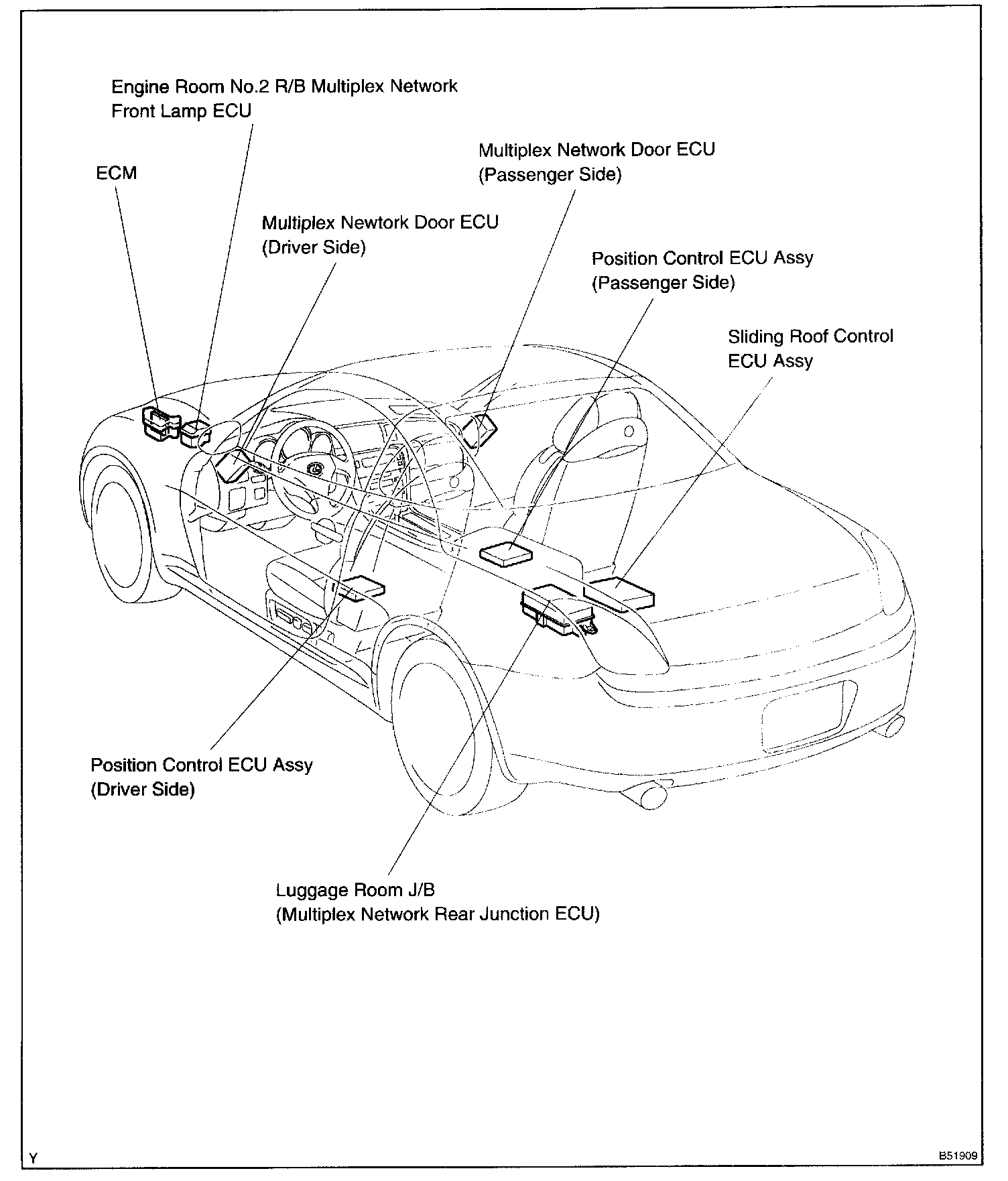

Multiplex Communication System Part 1:

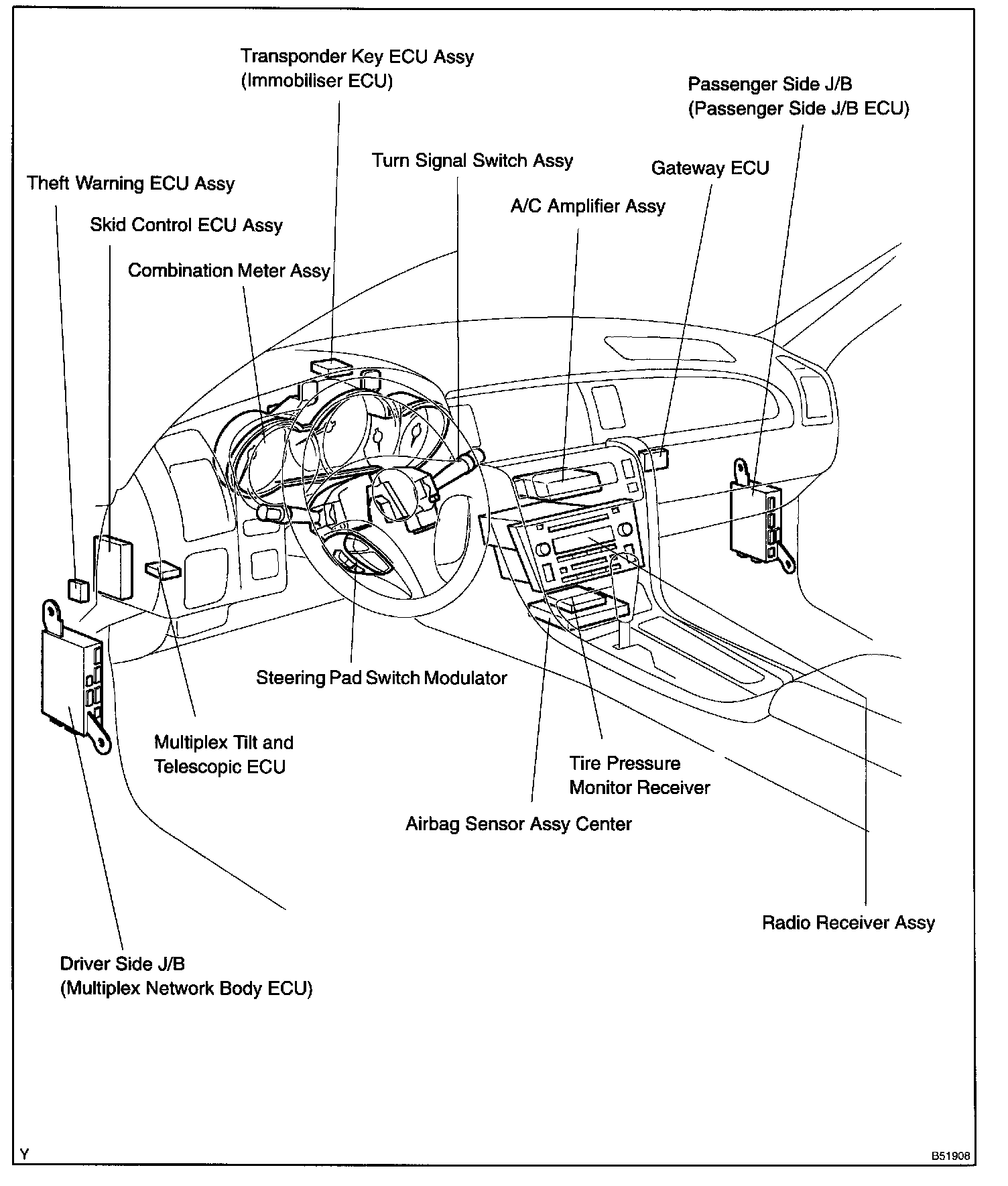

Multiplex Communication System Part 2:
