Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

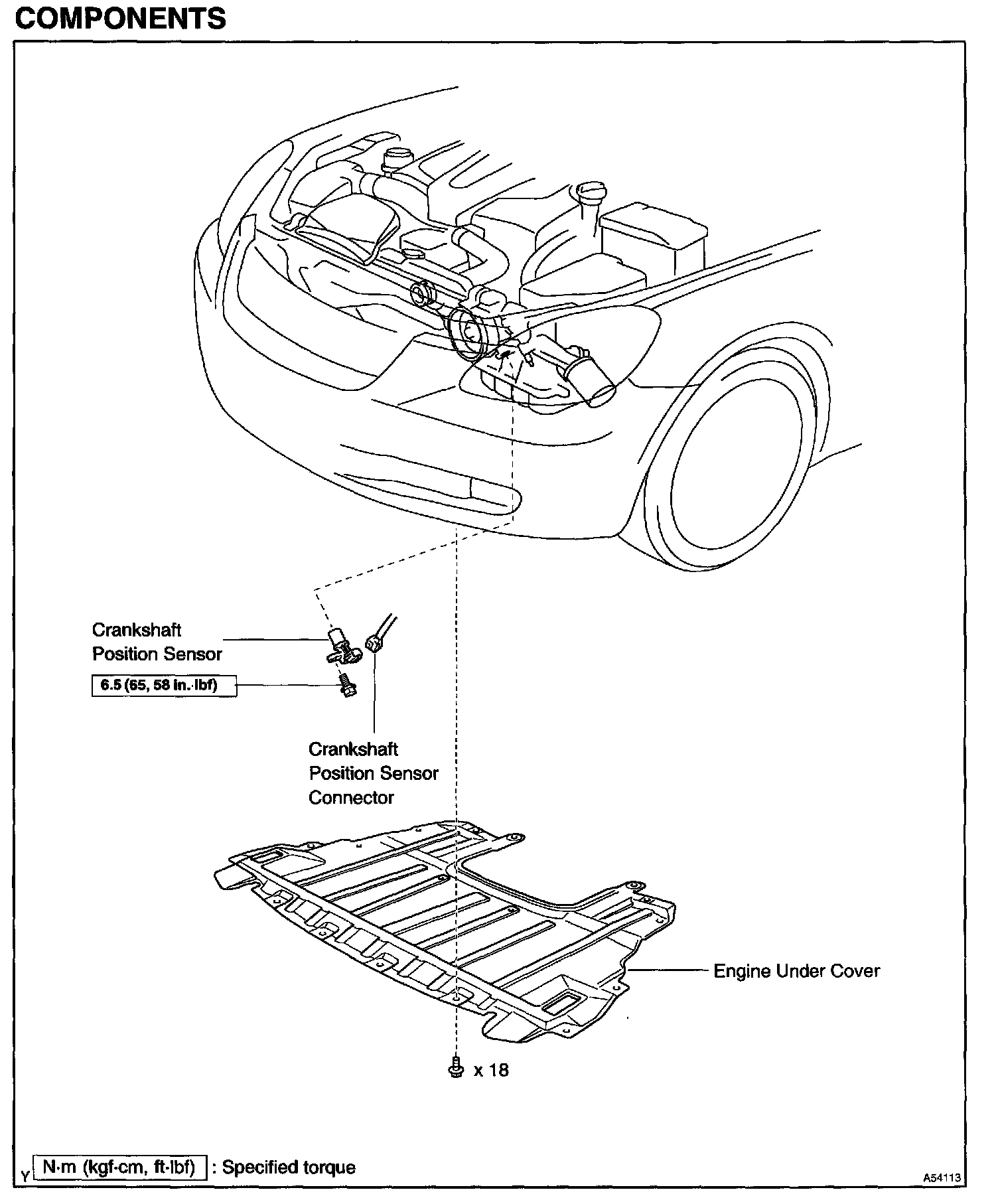

REPLACEMENT
1. Remove engine under cover
2. Remove crankshaft position sensor
3. Install crankshaft position sensor

Torque: 6.5 Nm (65 kgf.cm, 57 in.lbf)

4. Install engine under cover
