Drive/Propeller Shaft

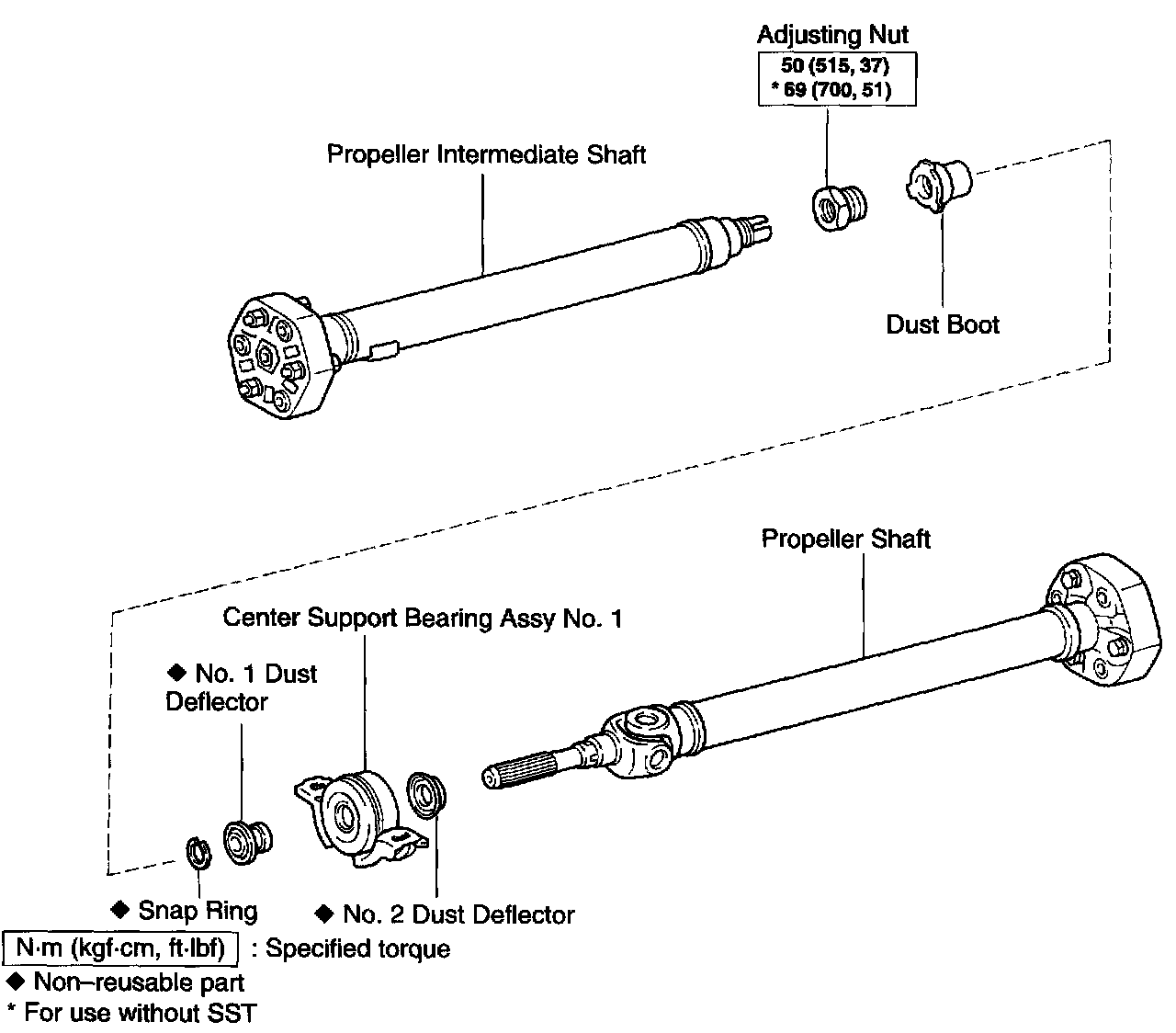

Part 1 Of 2:

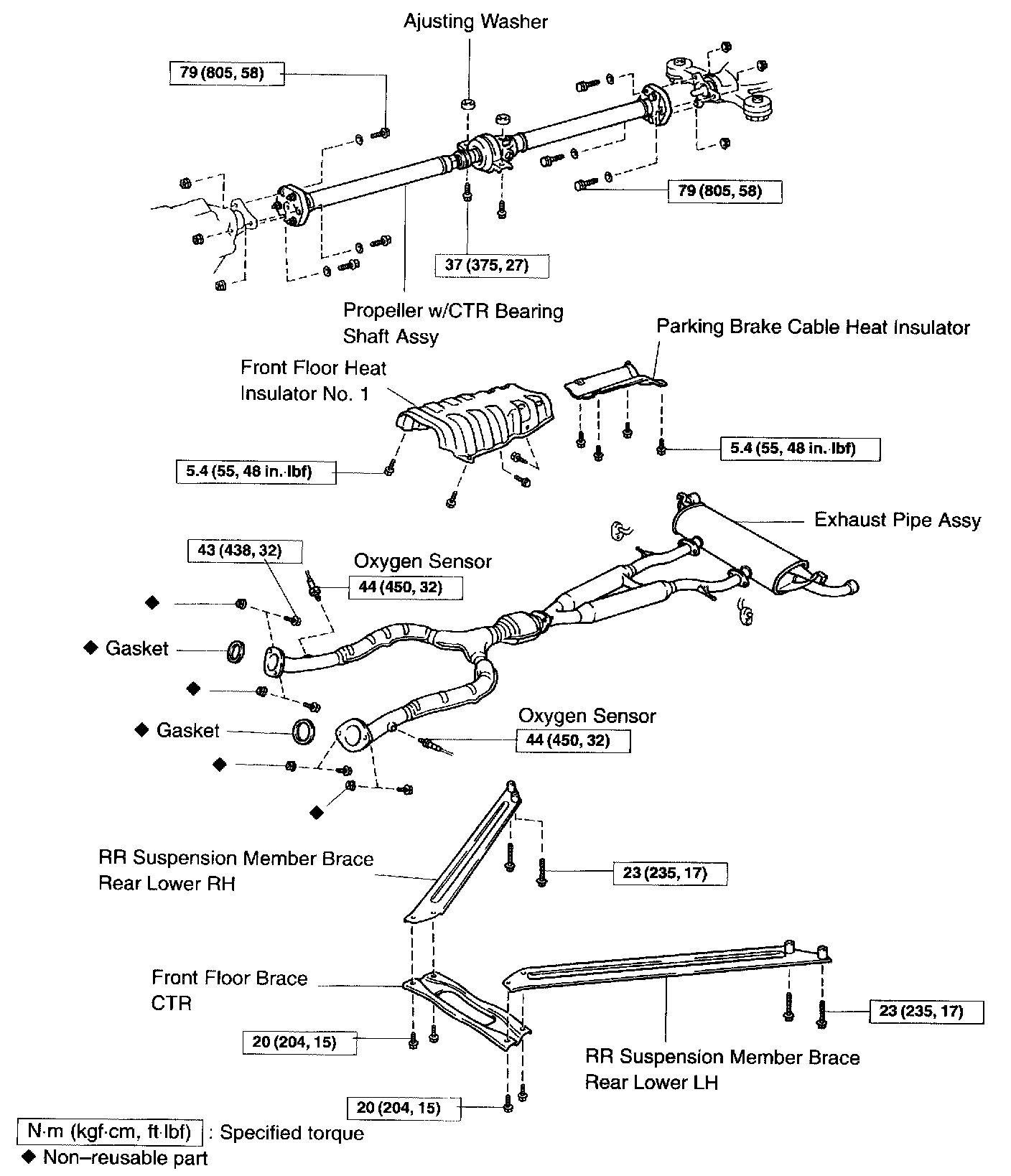

Part 2 Of 2:





PROPELLER W/CENTER BEARING SHAFT ASSY OVERHAUL W/ RELATED COMPONENTS
