SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Alternator
Alternator

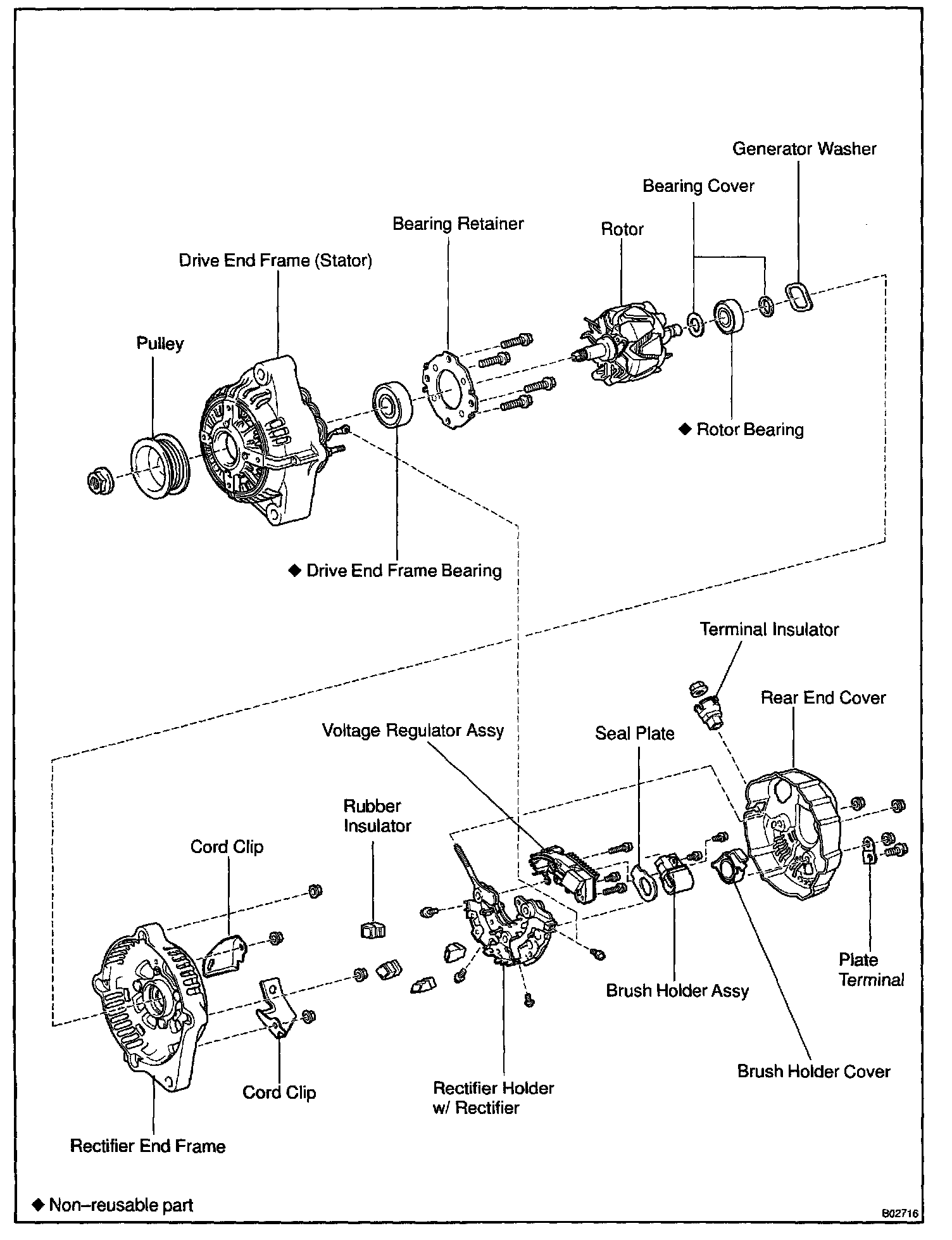

Generator Part 1:

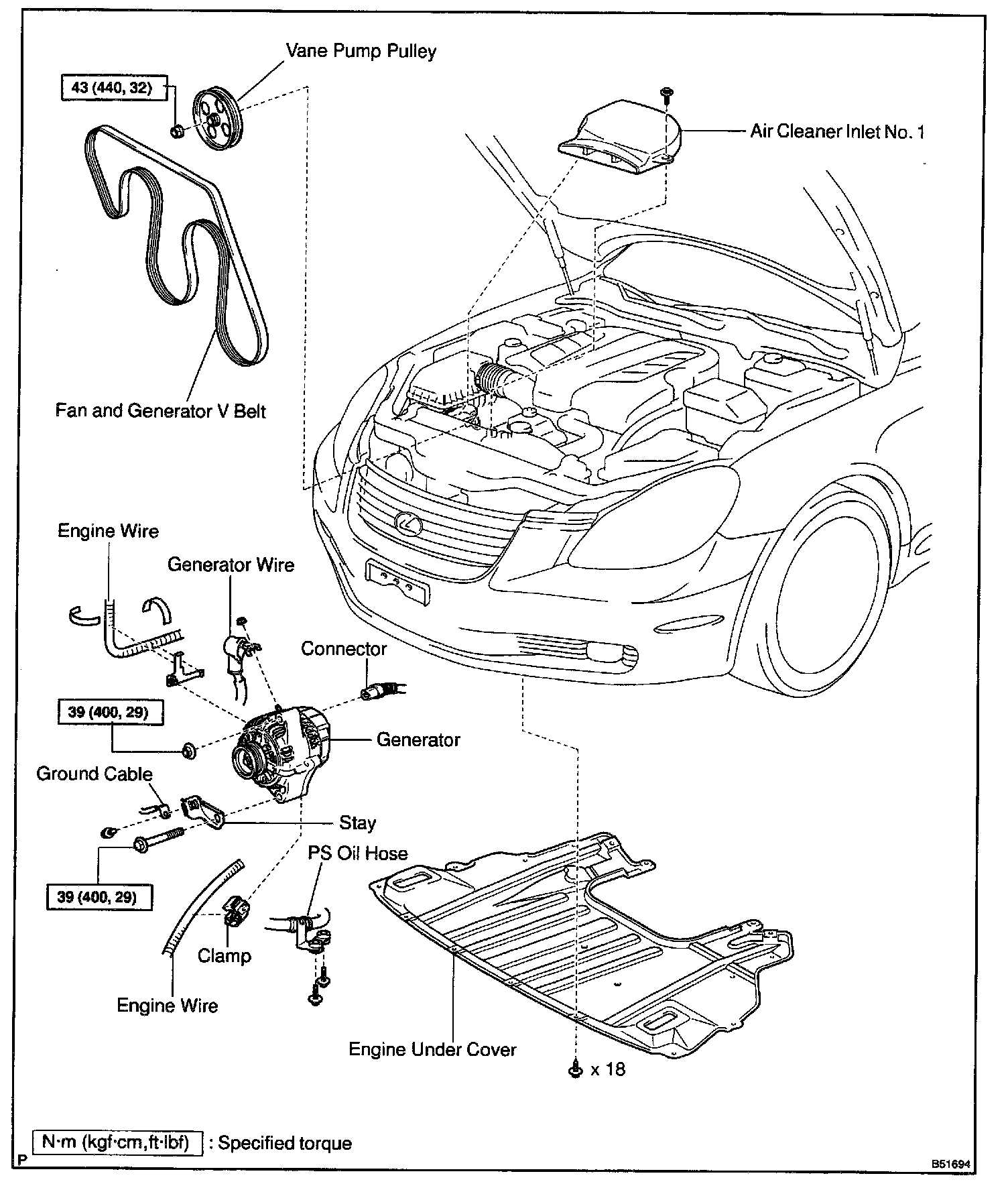

Generator Part 2:
