Home >> Lexus >> 2003 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection

Control Module: Testing and Inspection

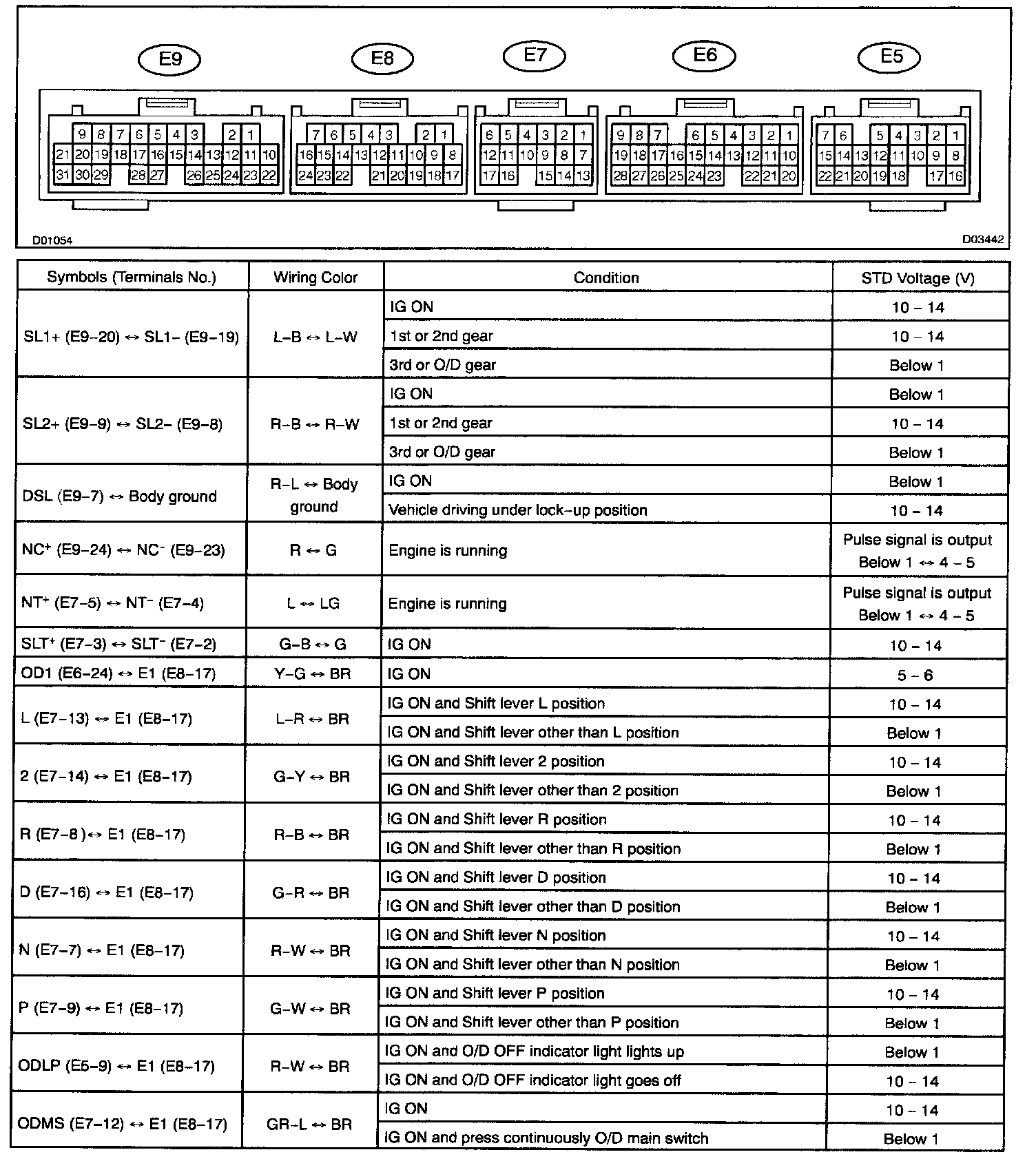

Terminals Of ECM/Pinouts:
