Home >> Lexus >> 2003 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

Oil Pump, Engine

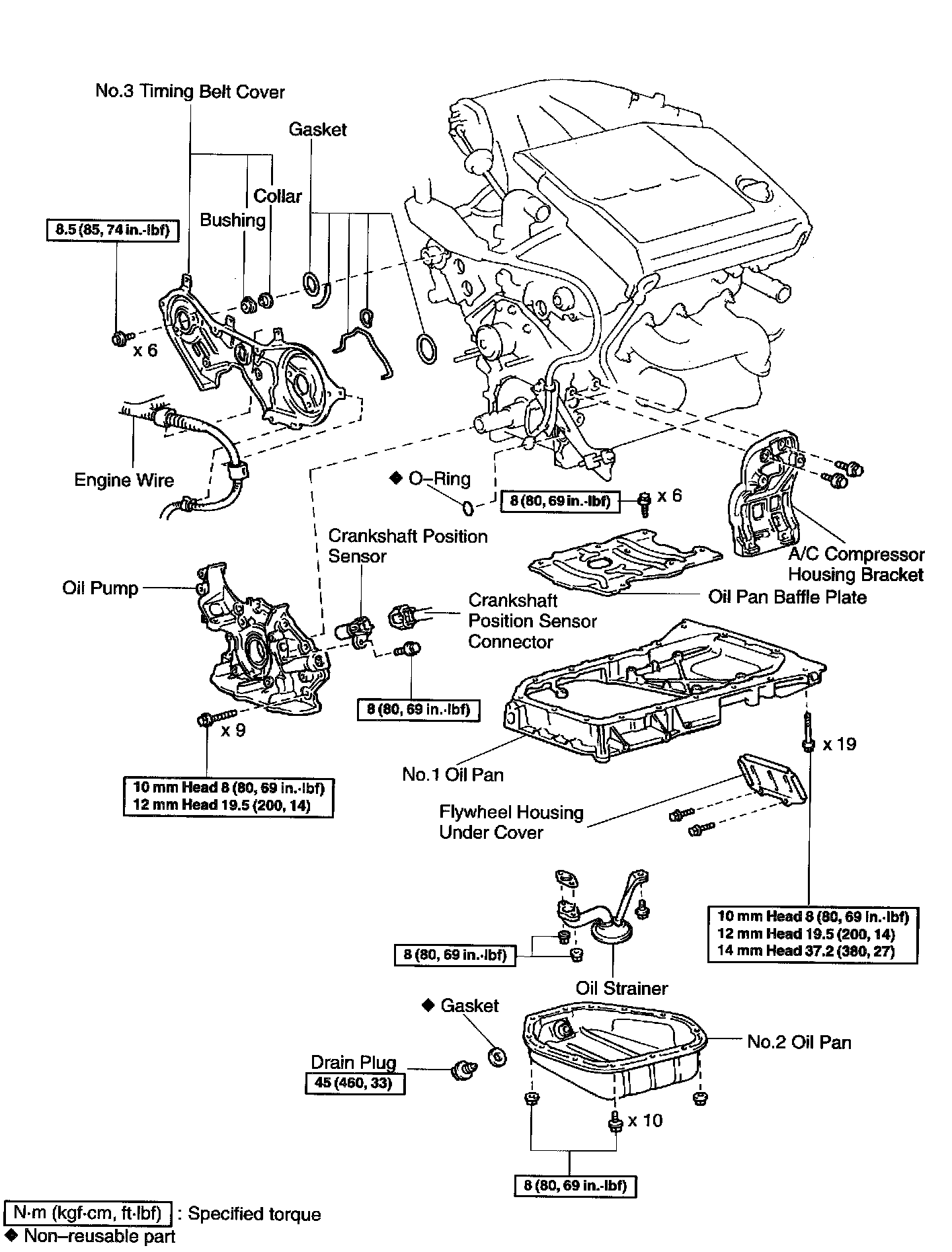

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
