Home >> Lexus >> 2003 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

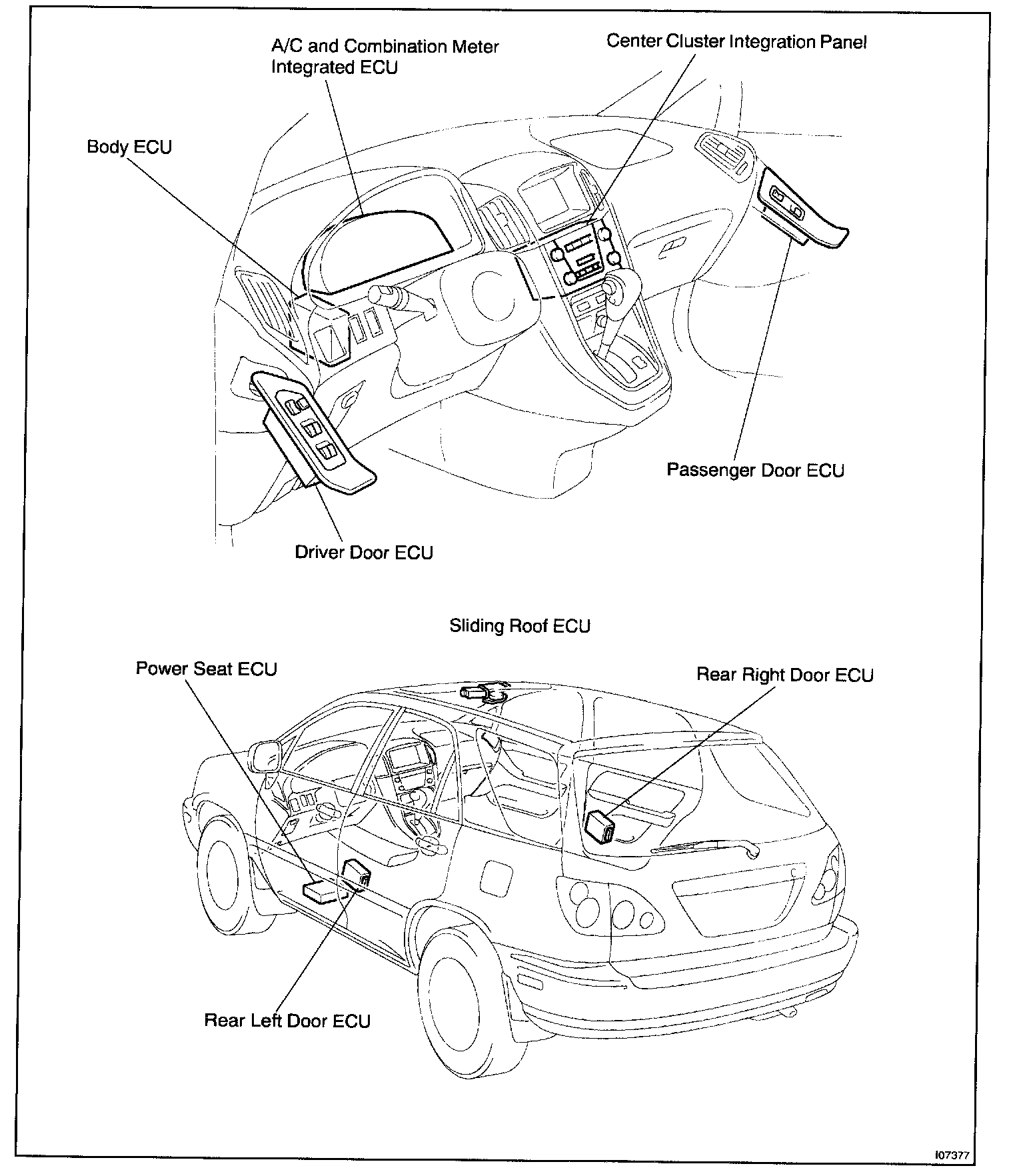

Multiplex Communication System:

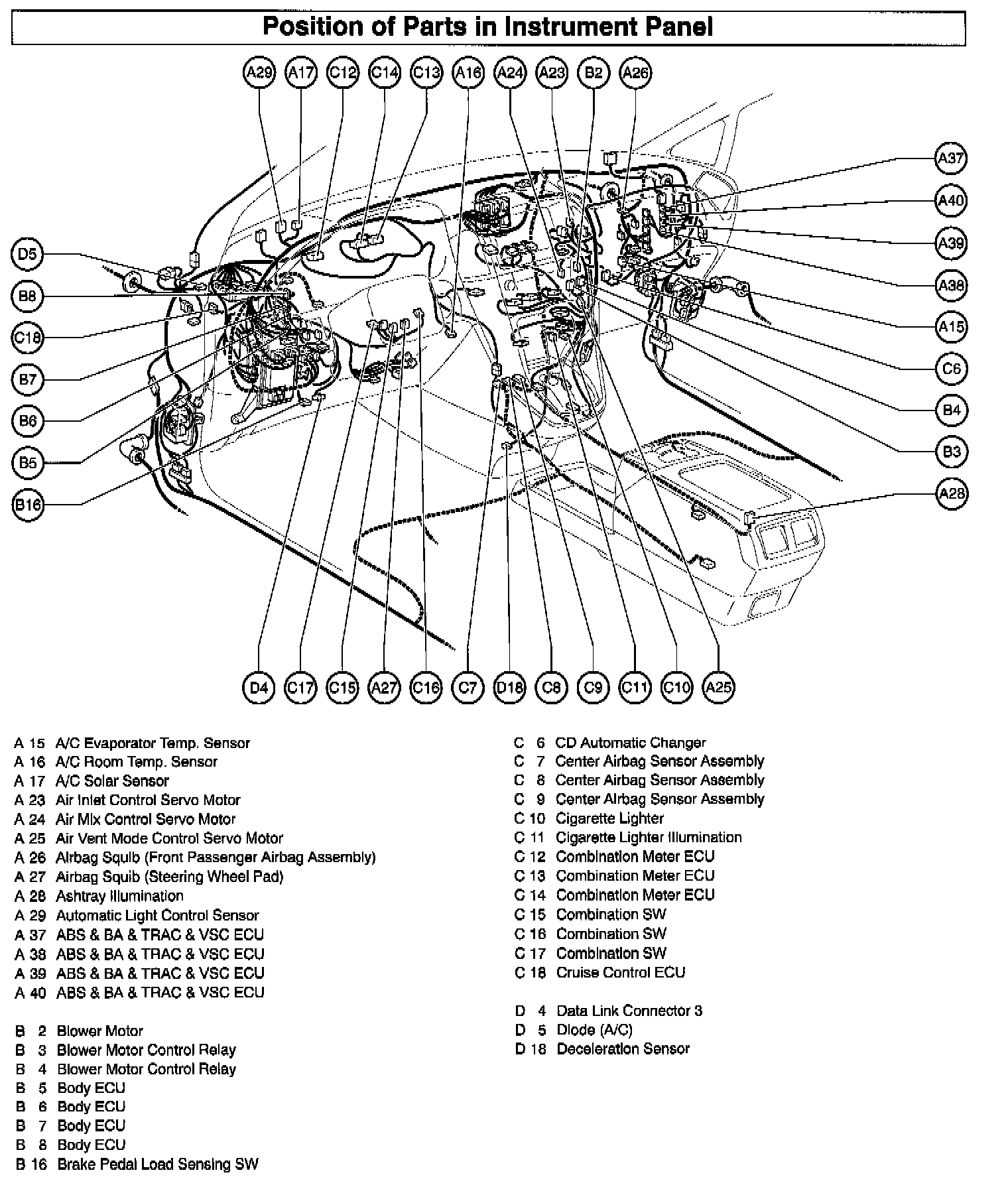

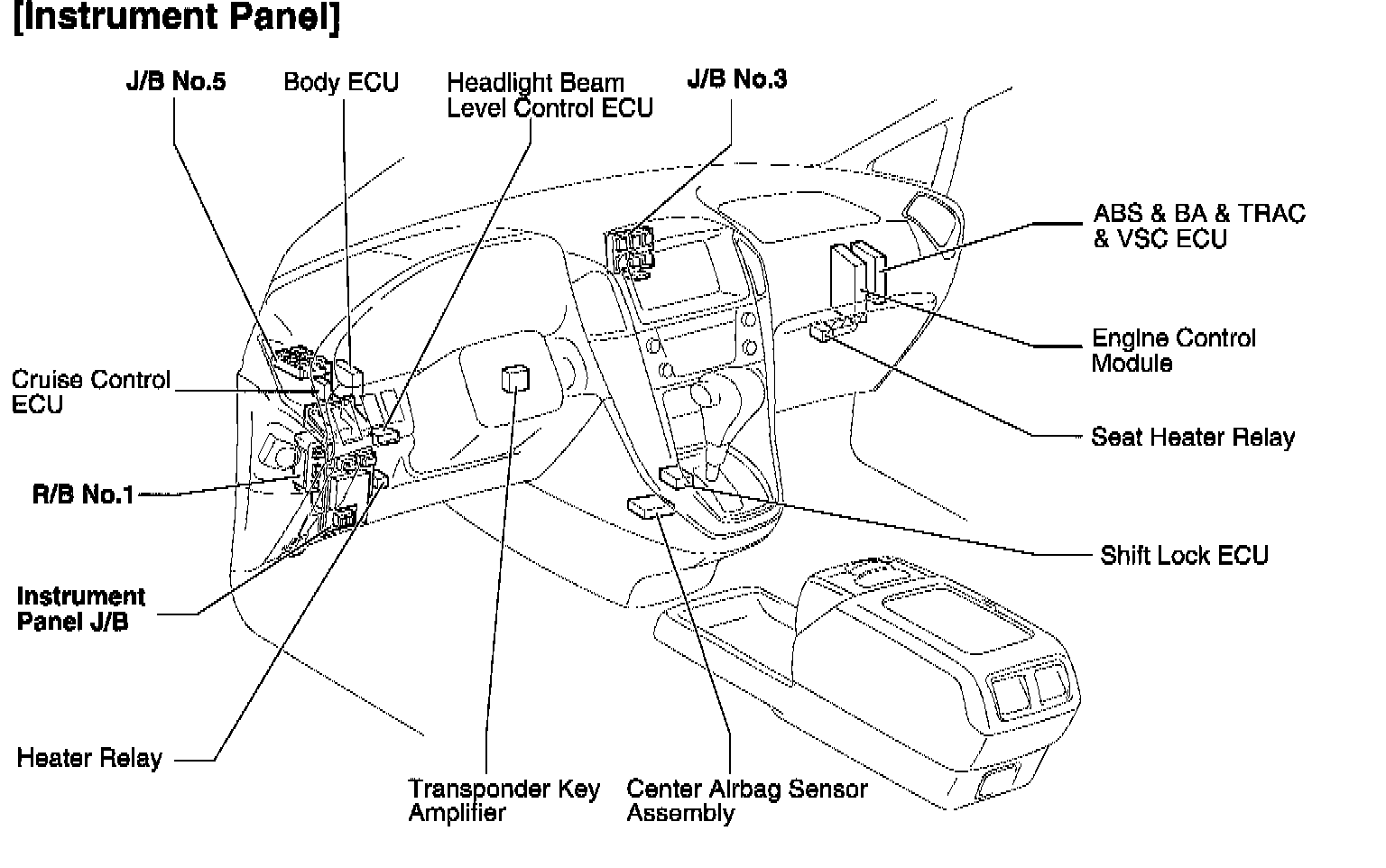

Instrument Panel:



A/C - De:
