Home >> Lexus >> 2003 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> Service Data

Service Data

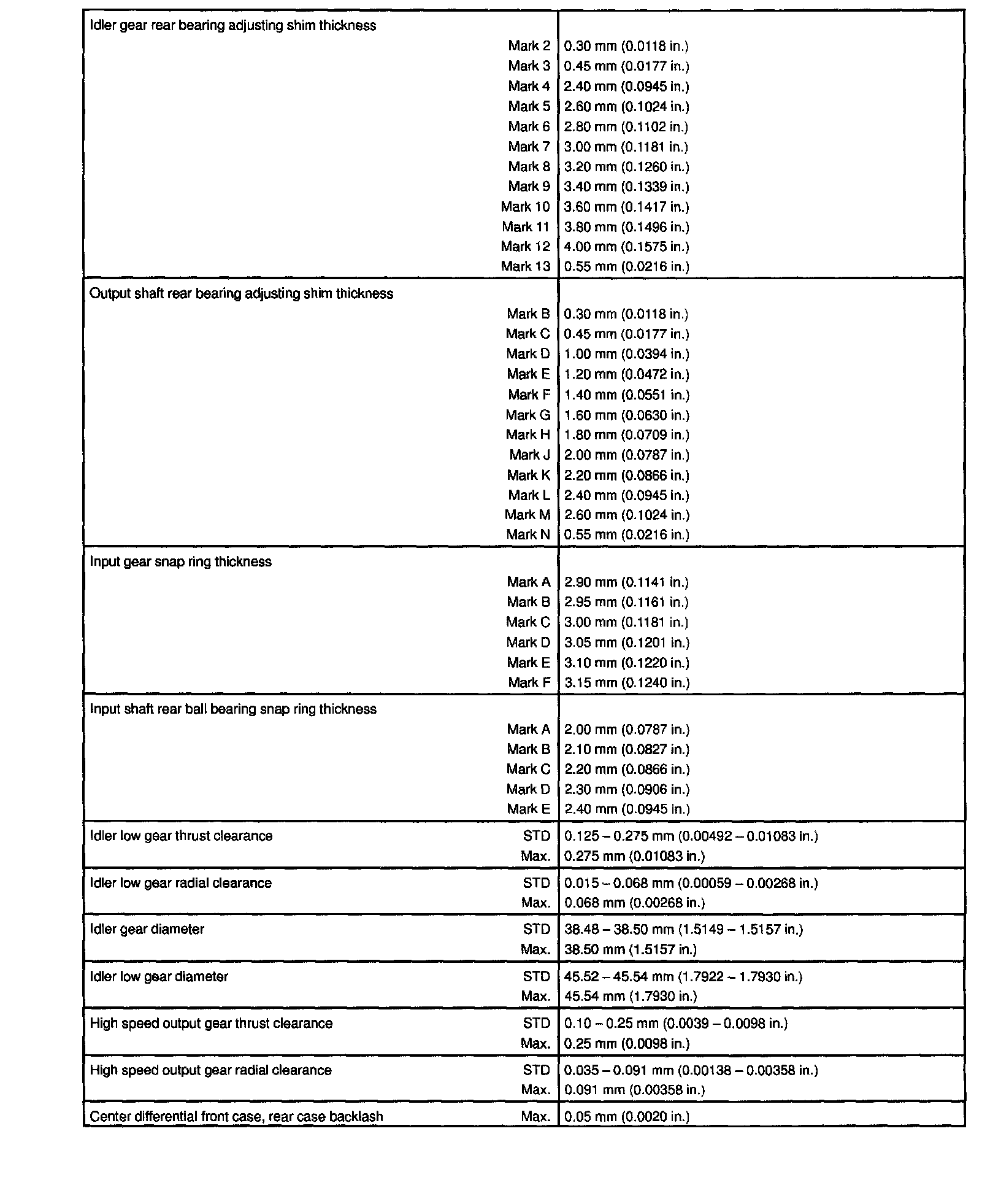

Part 1 Of 2:

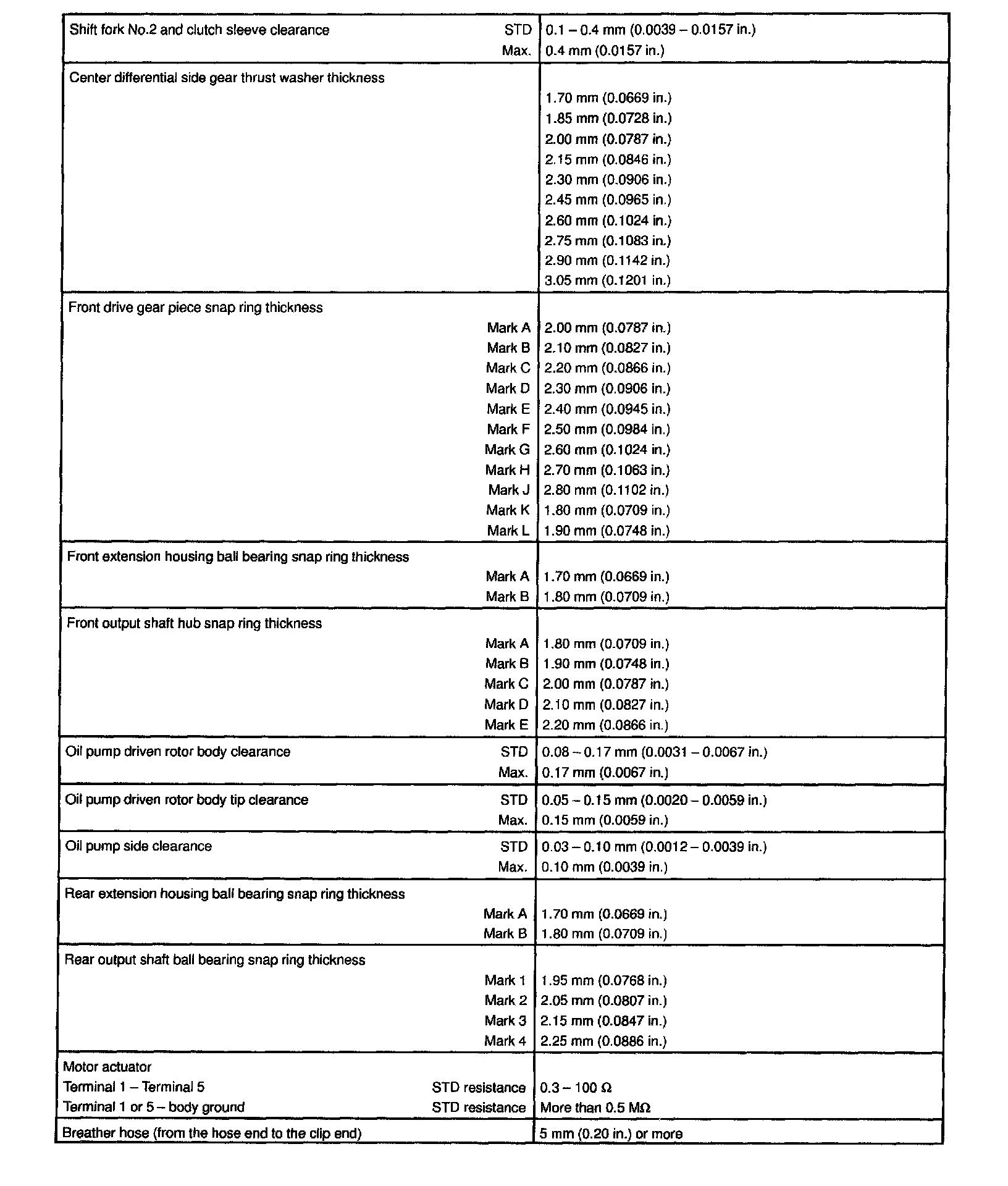

Part 2 Of 2:





TRANSFER CASE
