Ignition Relay: Locations
Engine Room J/B, R/B - Engine Compartment Left:

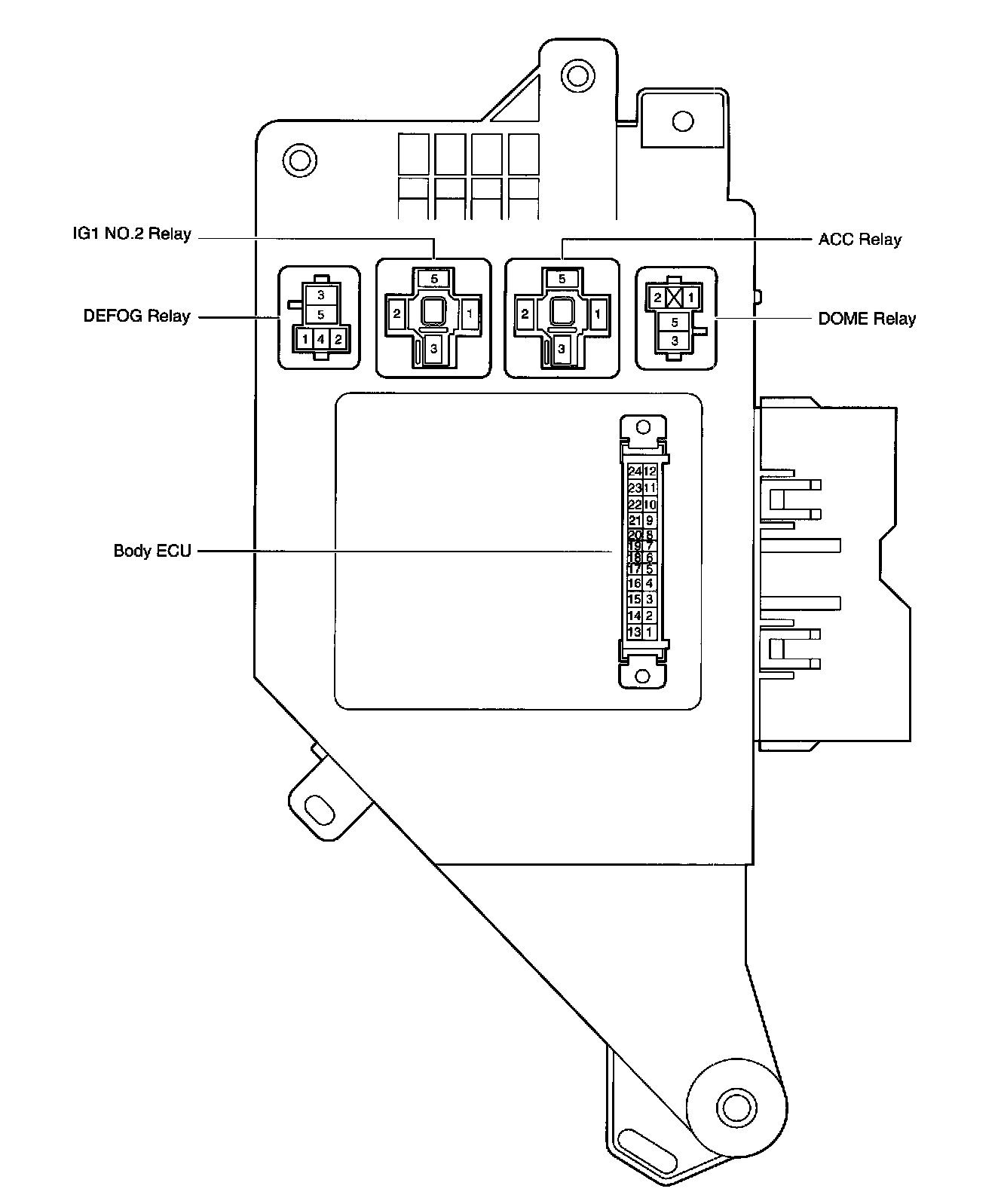

Cowl Side J/B LH - Left Kick Panel:

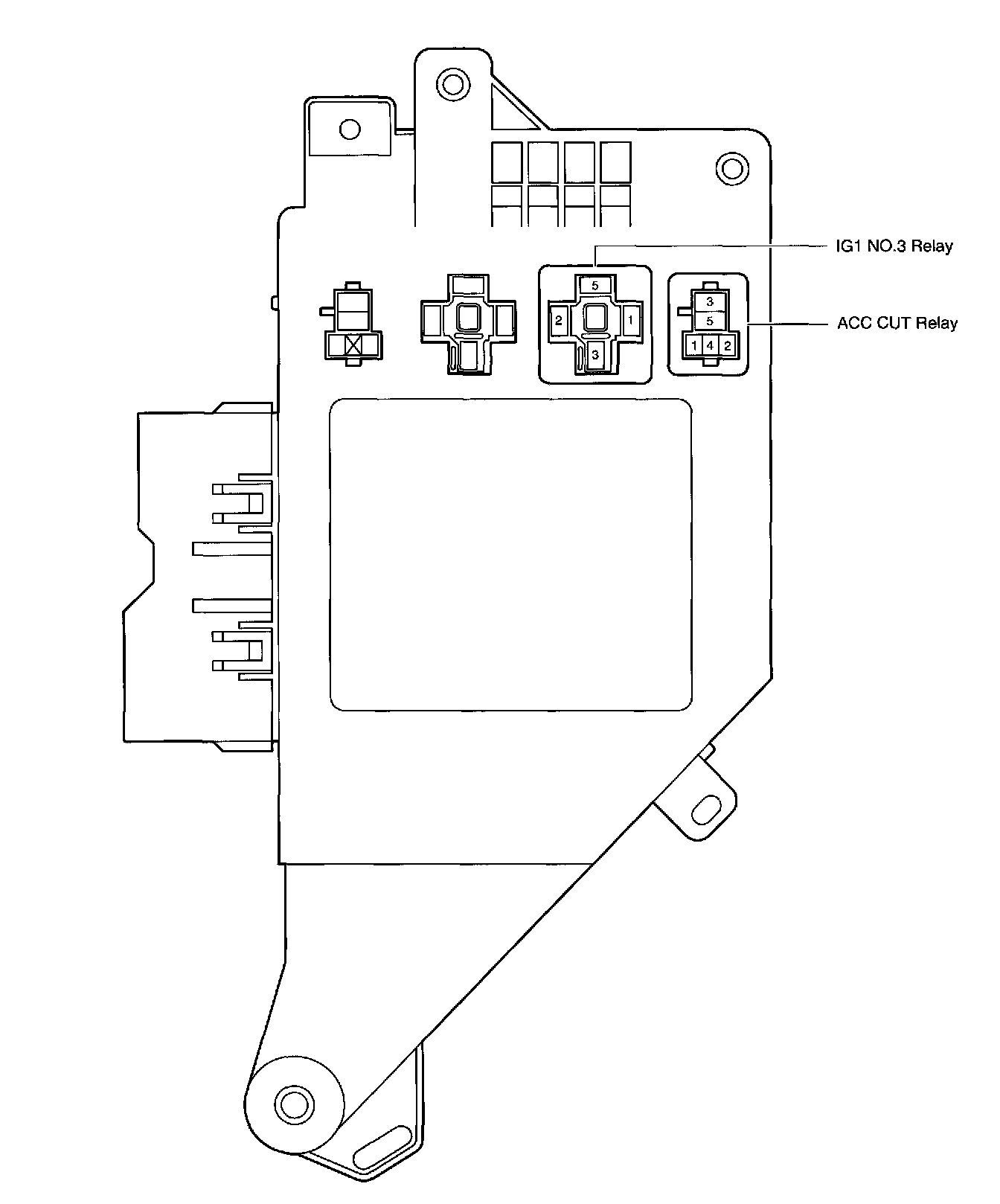

Cowl Side J/B RH - Right Kick Panel:
