Crankshaft Position Sensor: Service and Repair

REPLACEMENT

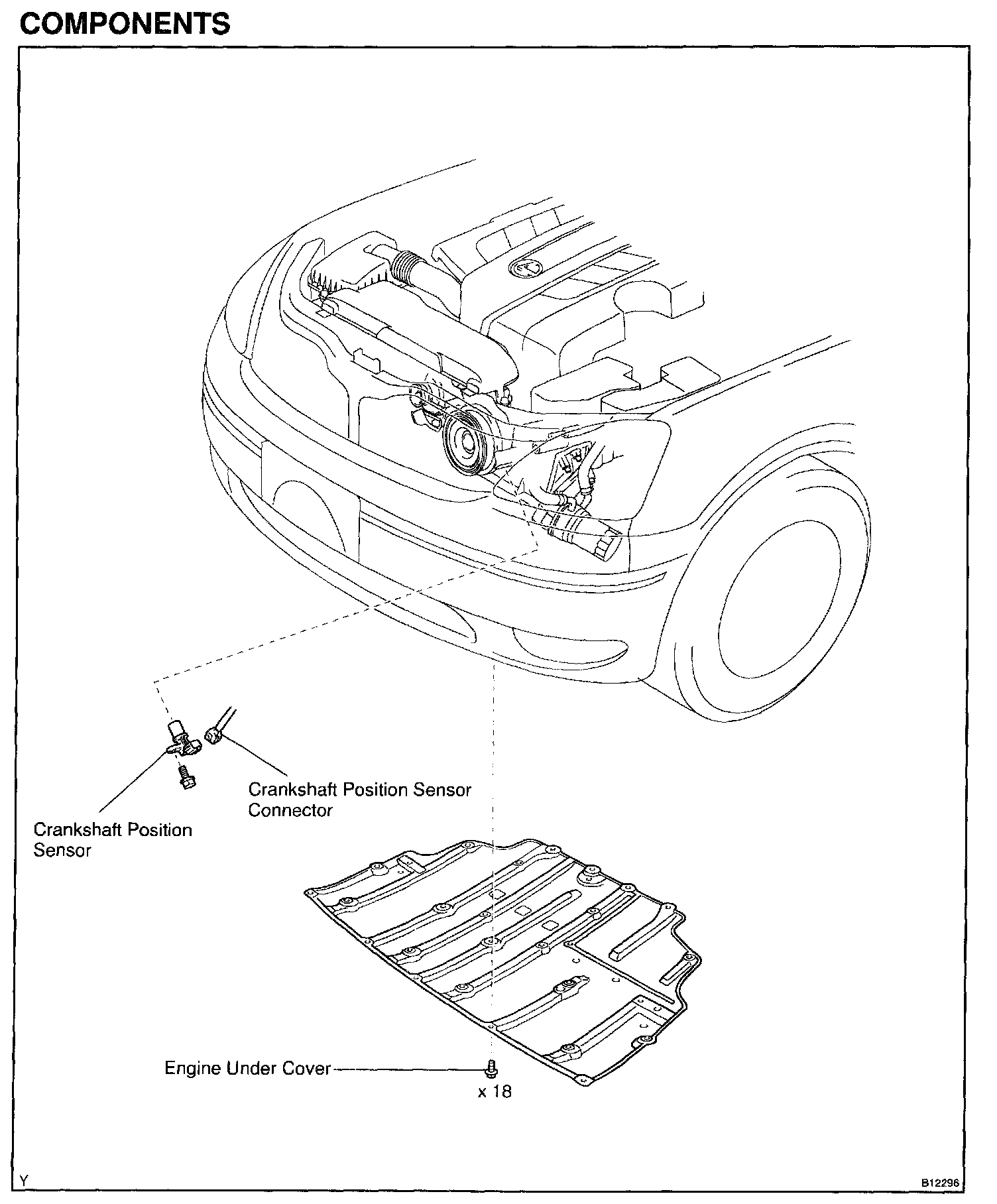

1. REMOVE ENGINE UNDER COVER

2. REMOVE CRANKSHAFT POSITION SENSOR
a. Disconnect the crankshaft position sensor connector.
b. Remove the bolt and crankshaft position sensor

3. REINSTALL NEW CRANKSHAFT POSITION SENSOR
a. Install a new crankshaft position sensor with the bolt.

Torque: 6.5 Nm (65 kgf.cm, 58 in.lbf)

b. Connect the crankshaft position sensor connector.

4. REINSTALL ENGINE UNDER COVER
