Seats

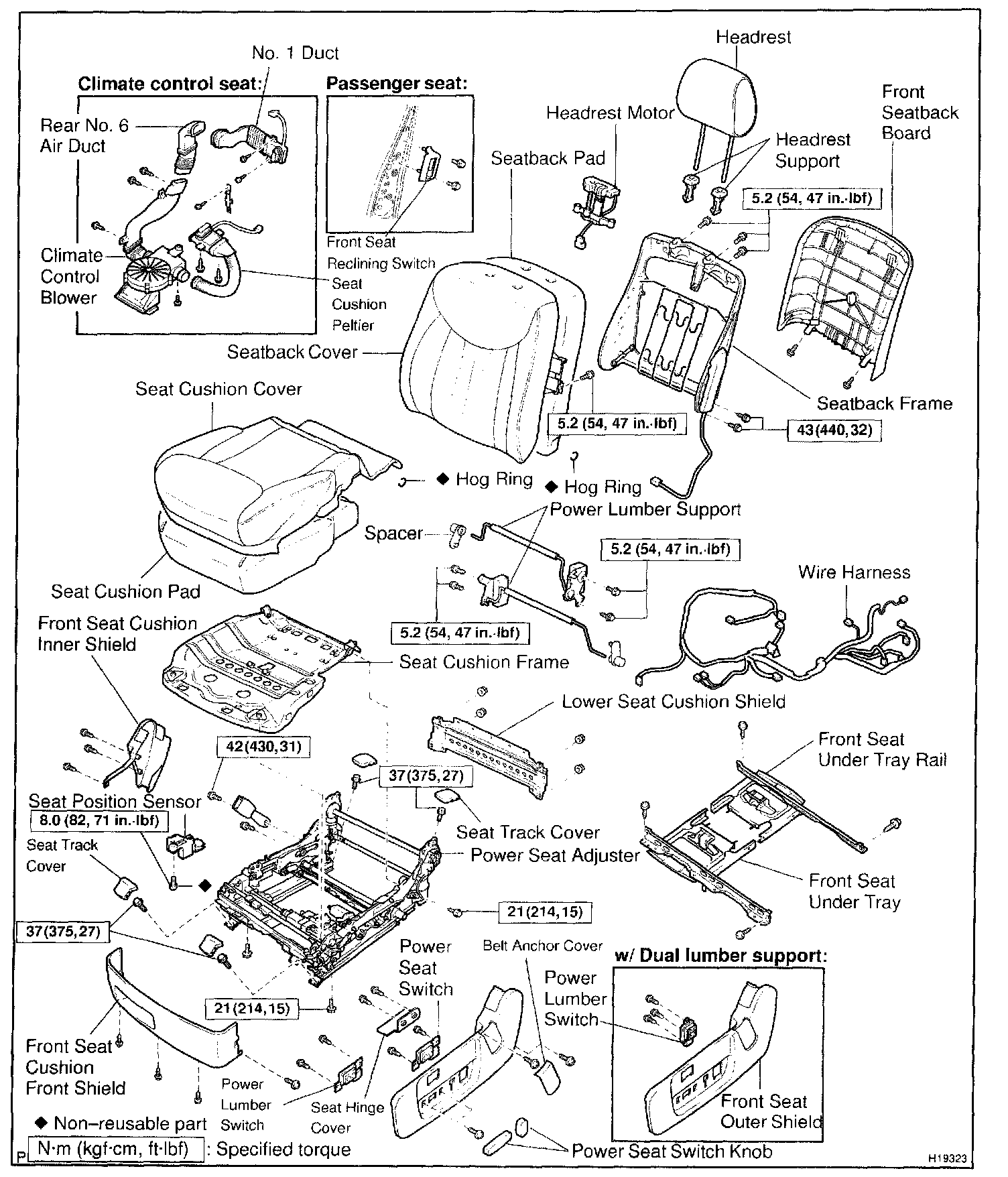

Front Seat:

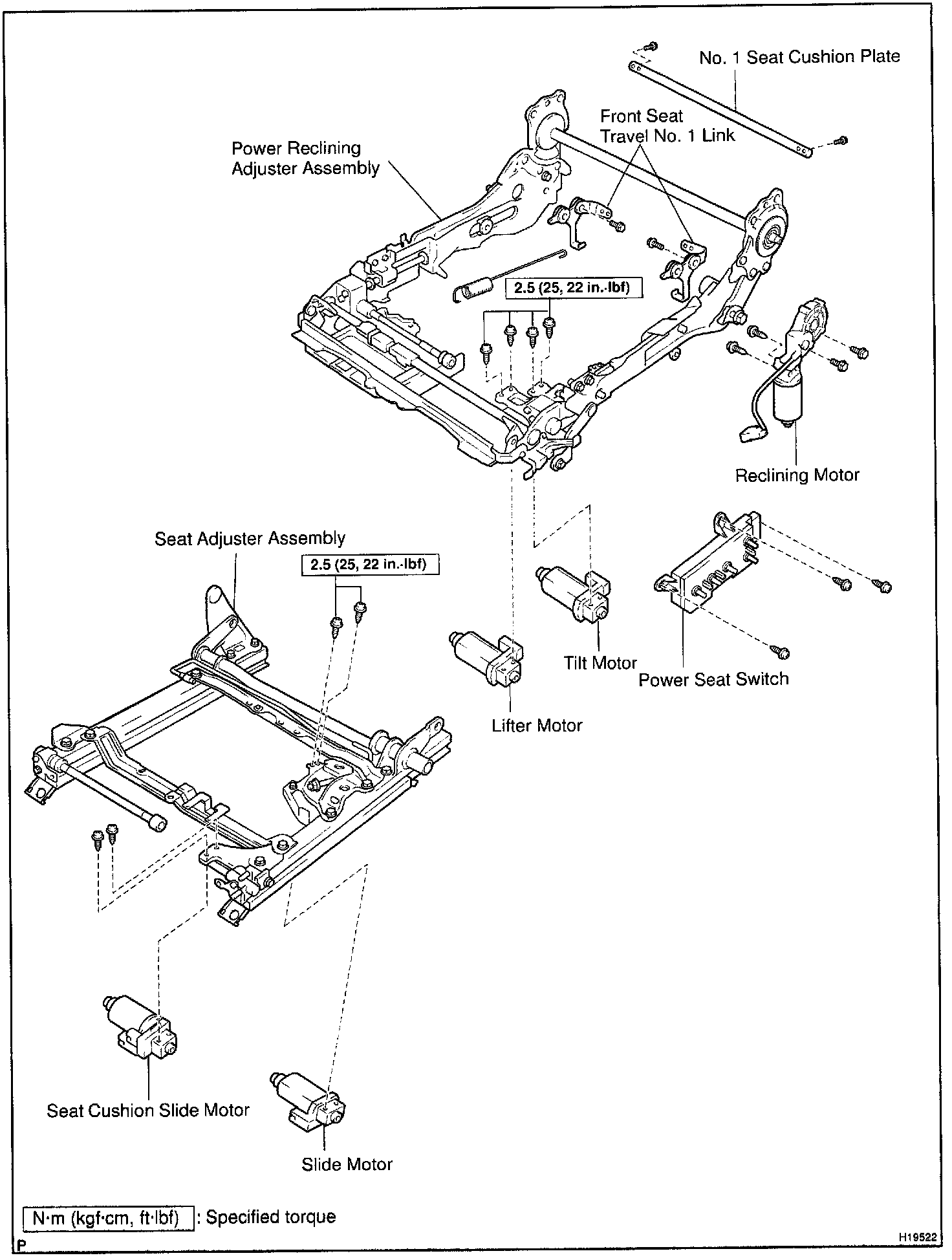

Front Seat:

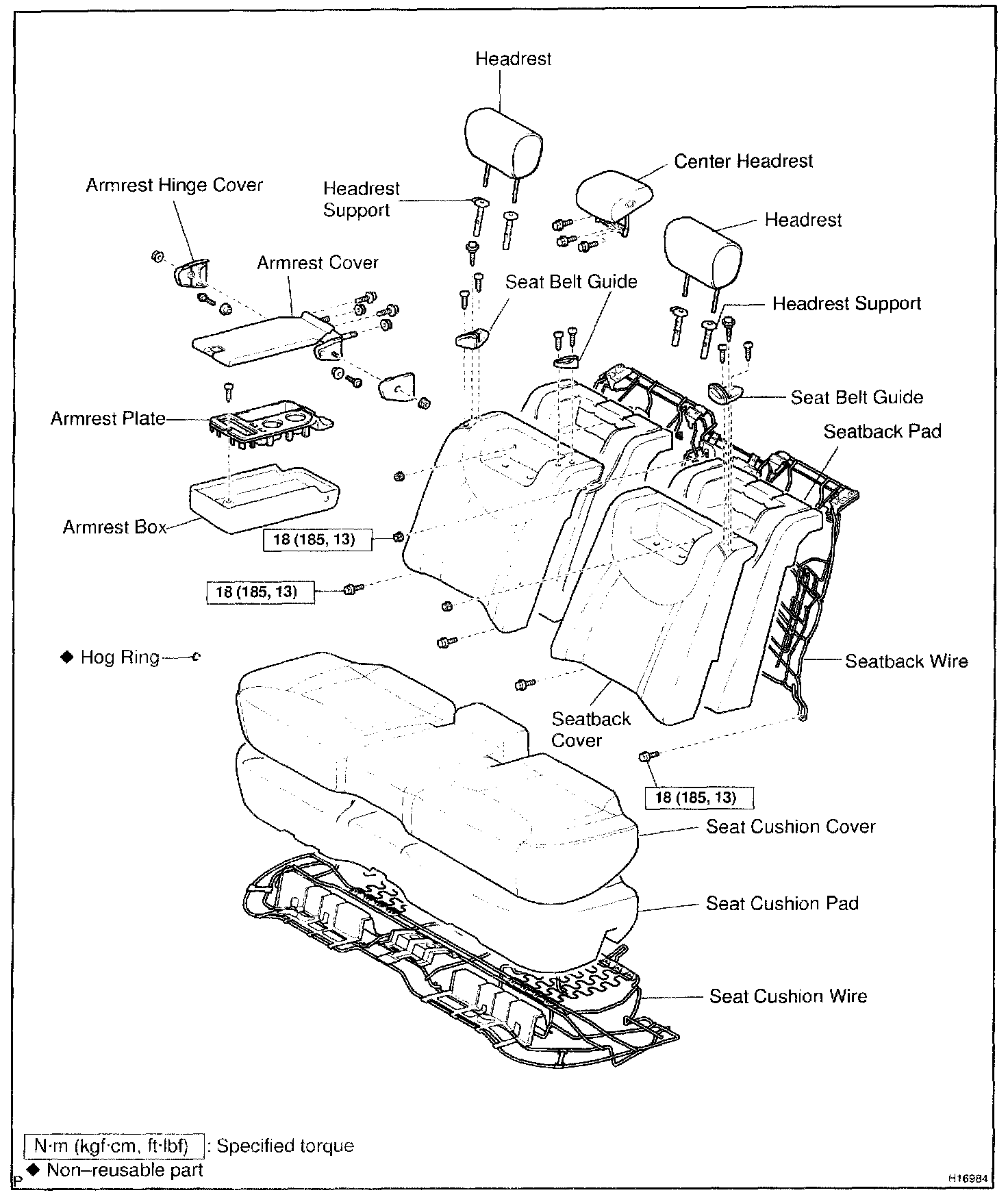

Rear Seat(Fixed Type):

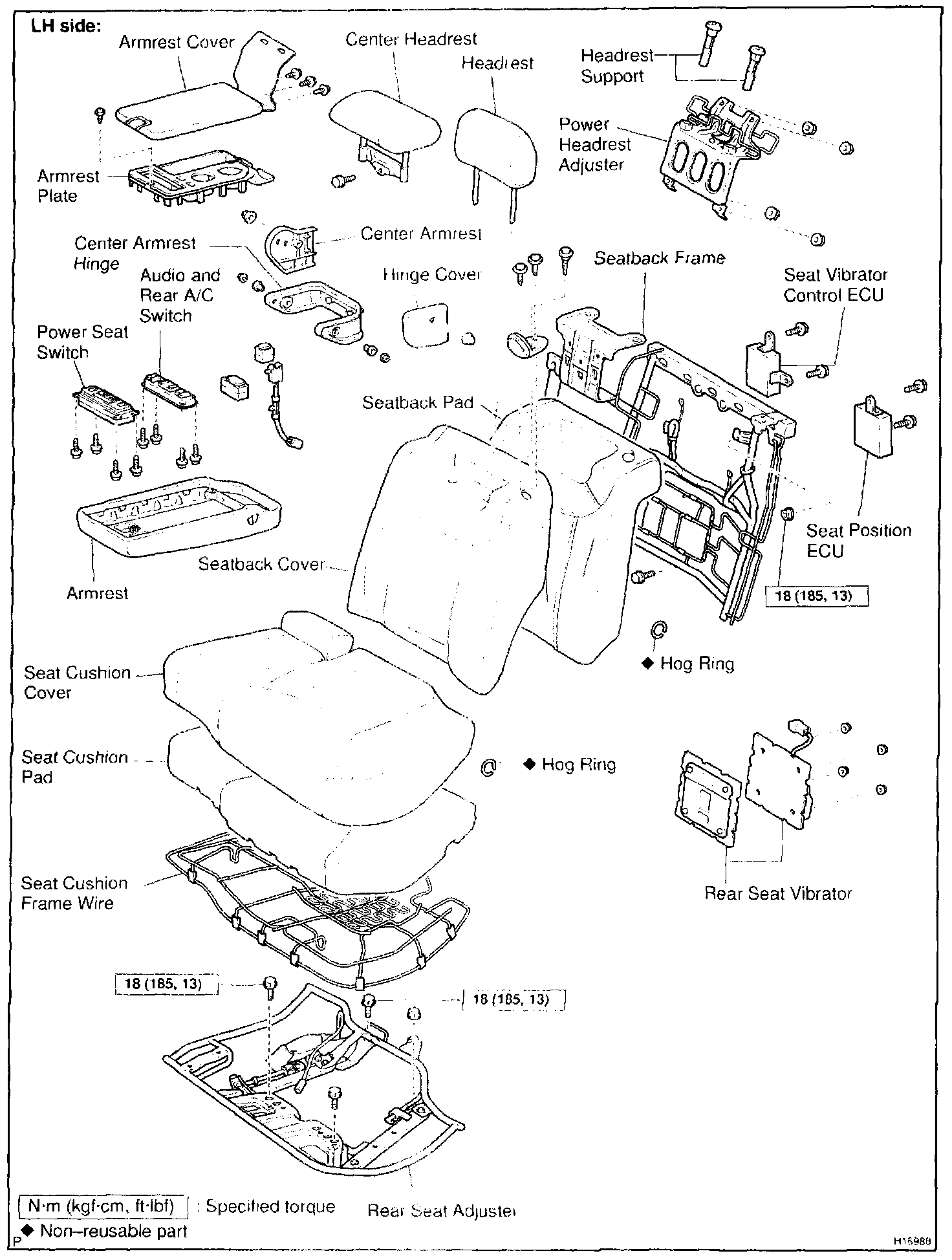

Rear Seat (Power Adjust Type):

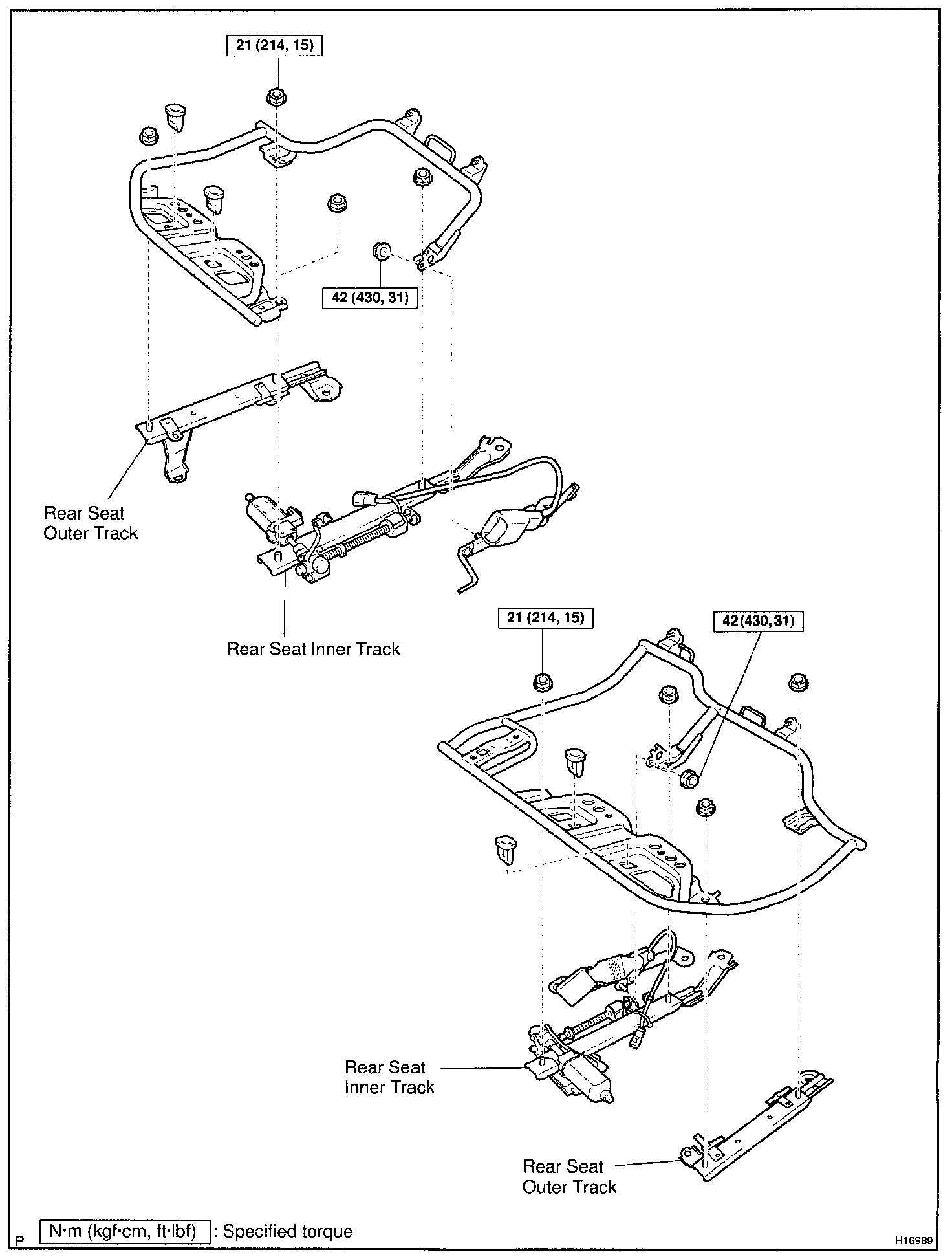

Rear Seat (Power Adjust Type):

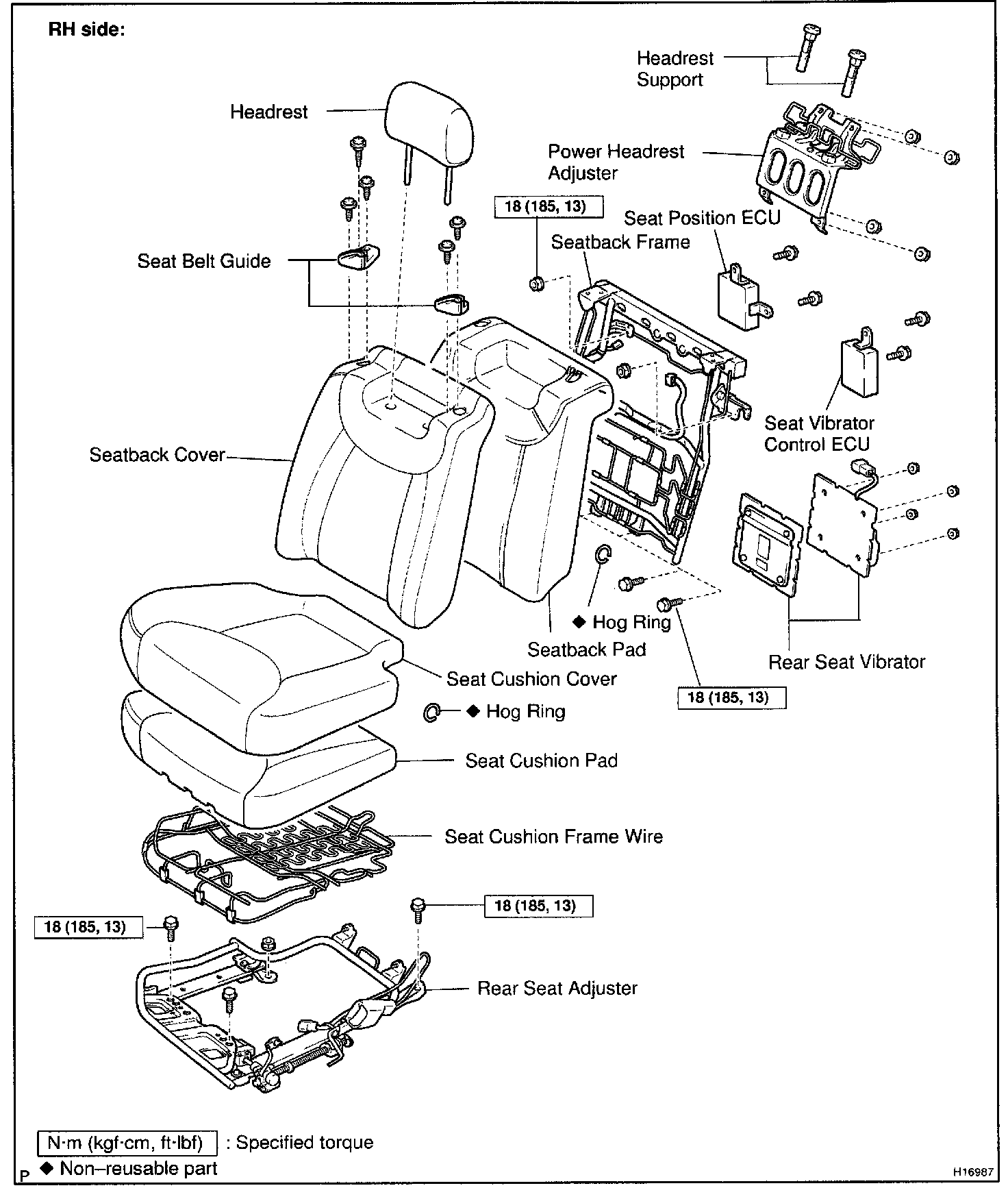

Rear Seat (Power Adjust Type):
