Distance Control ECU Power Source Circuit

CIRCUIT DESCRIPTION

This circuit provides power to operate the distance control ECU.

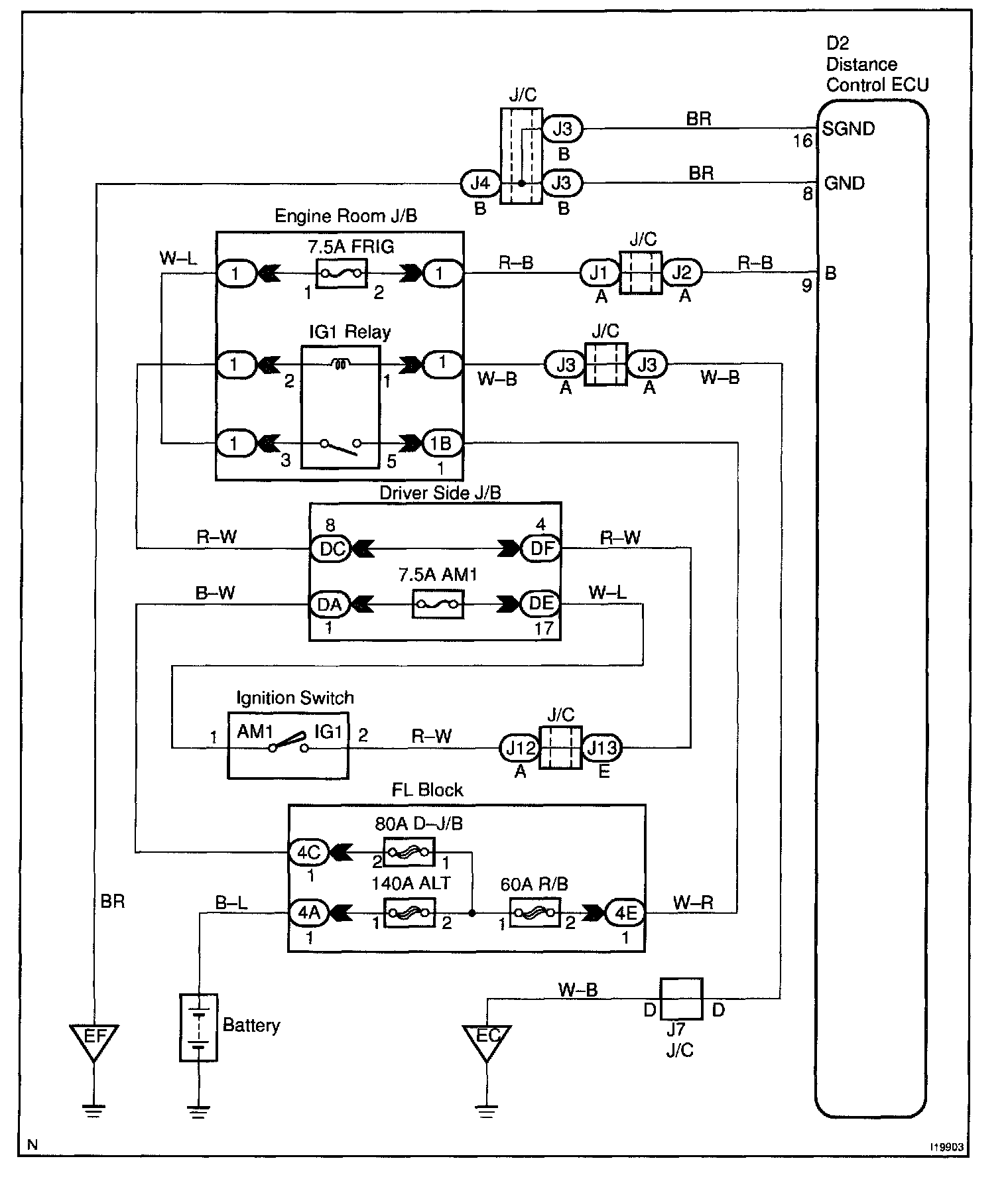

Wiring Diagram:

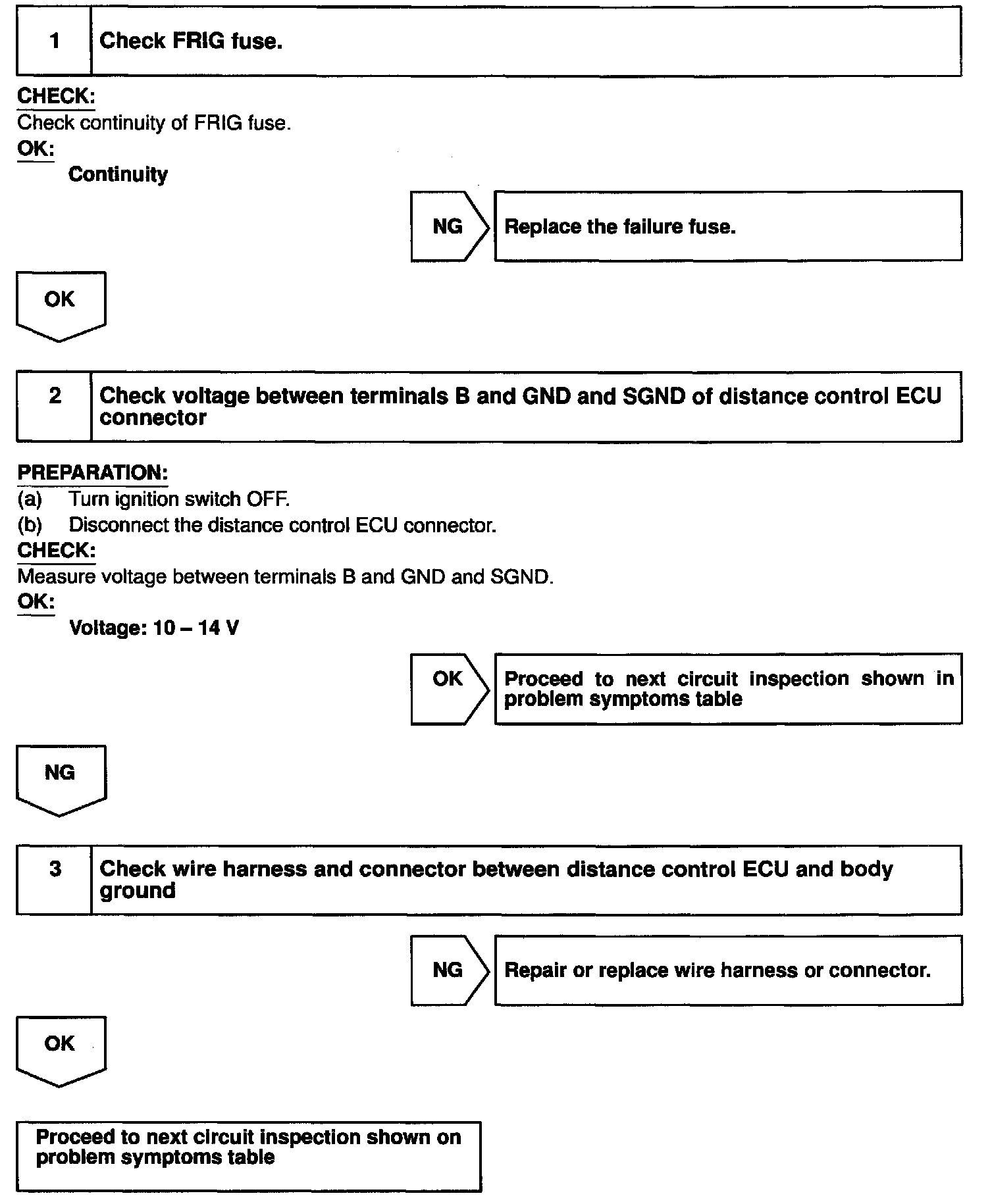

Step 1 - 3:




INSPECTION PROCEDURE
