Control Module HVAC: Testing and Inspection

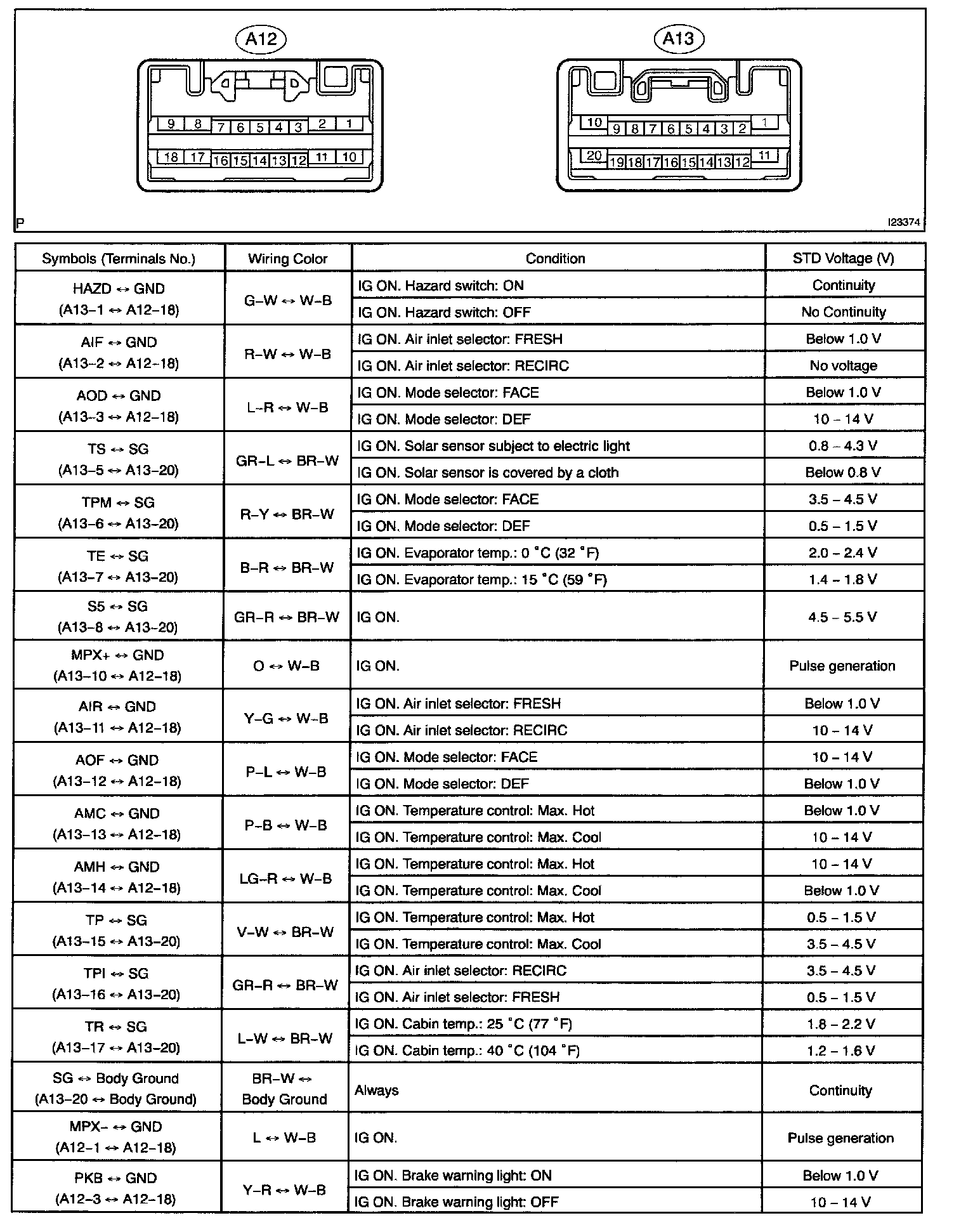

Terminals Of ECU / Pinouts Part 1:

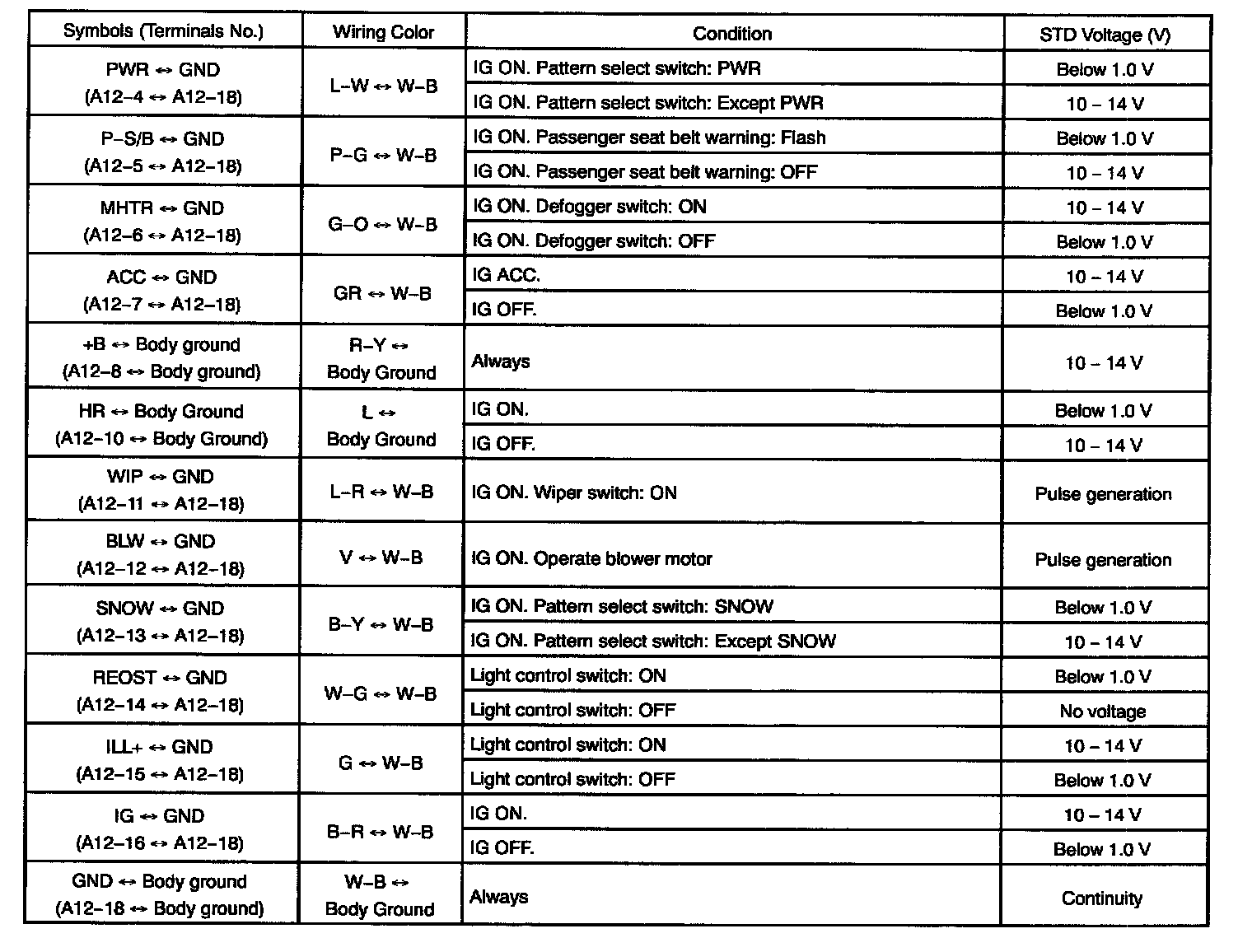

Terminals Of ECU / Pinouts Part 2:
