Home >> Lexus >> 2003 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Condenser Fan

Condenser Fan

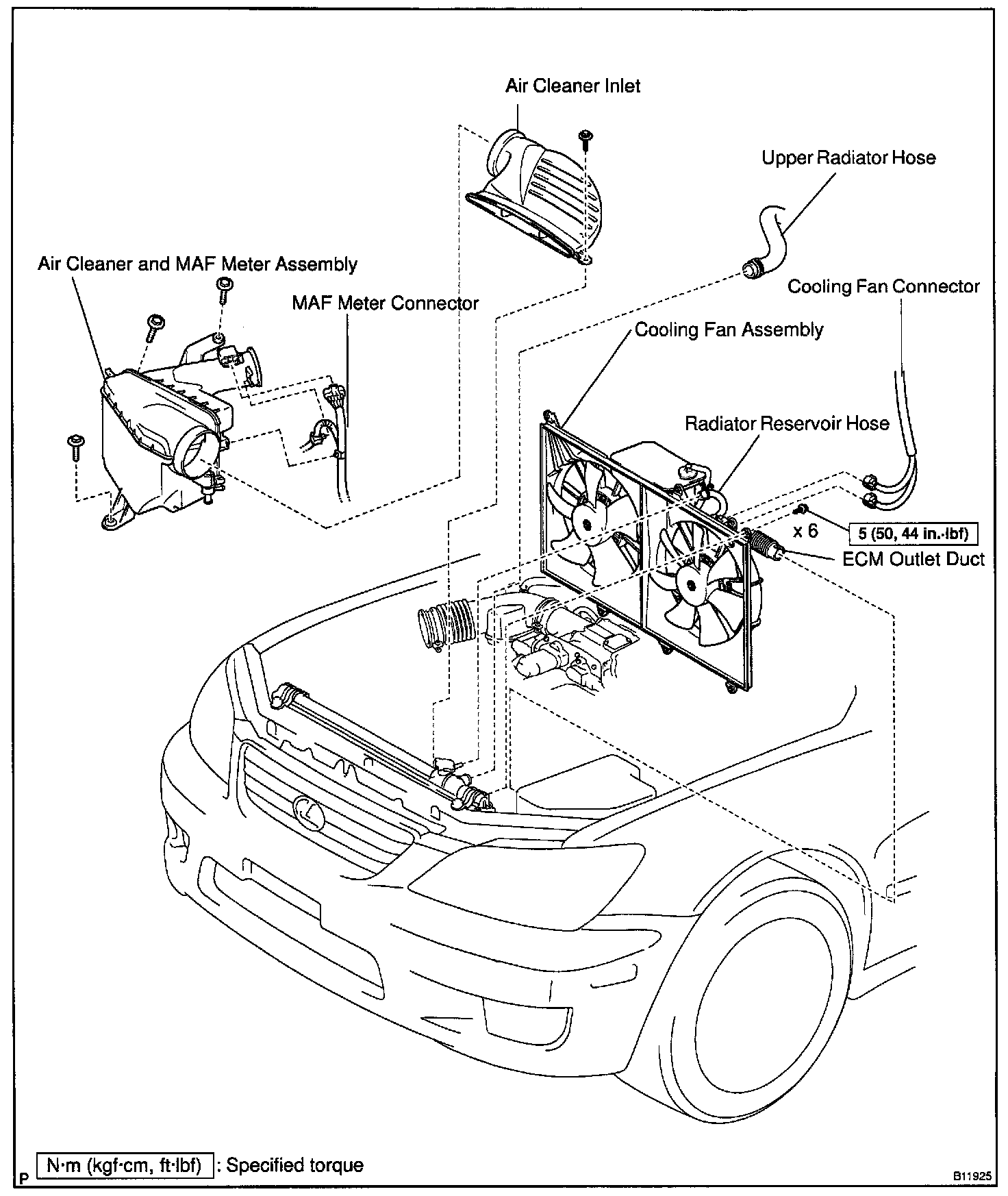

Condenser Fan (Part 1):

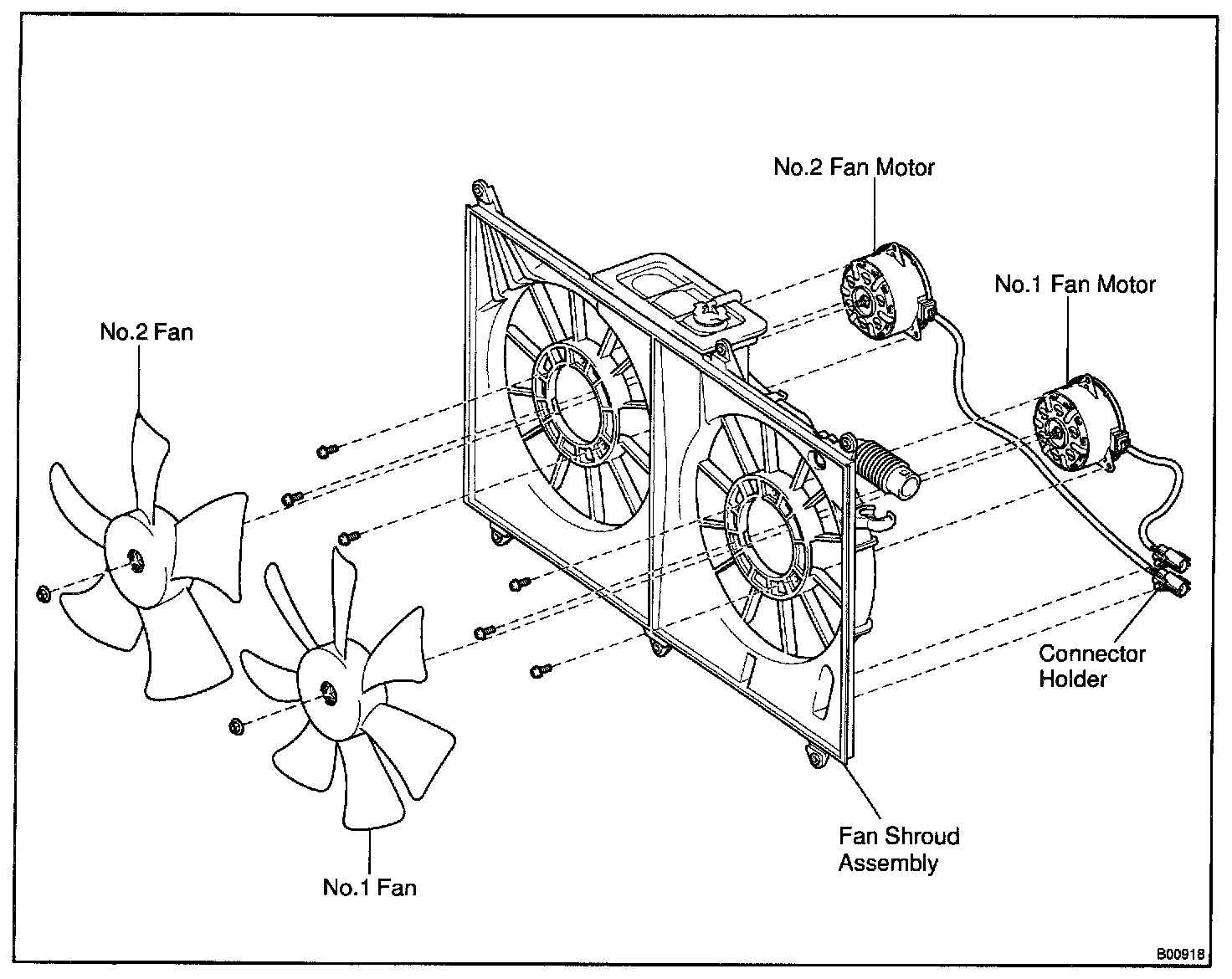

Condenser Fan (Part 2):
