Power Window Control System - Diagnosis: Location

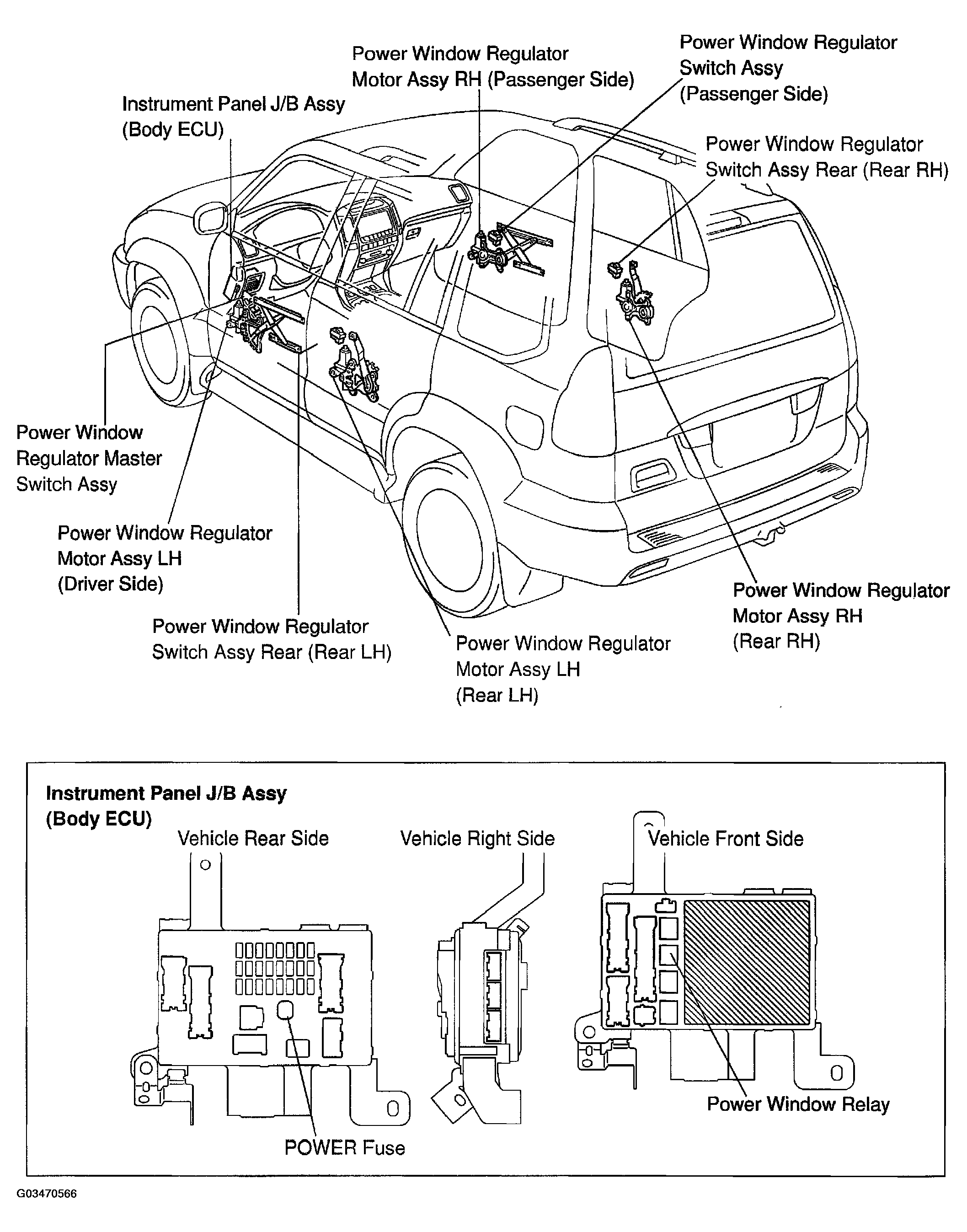

Fig 1: Locating Power Window Control System Components

G03470566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
