Home >> Lexus >> 2003 >> GX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

Lexus Navigation System:

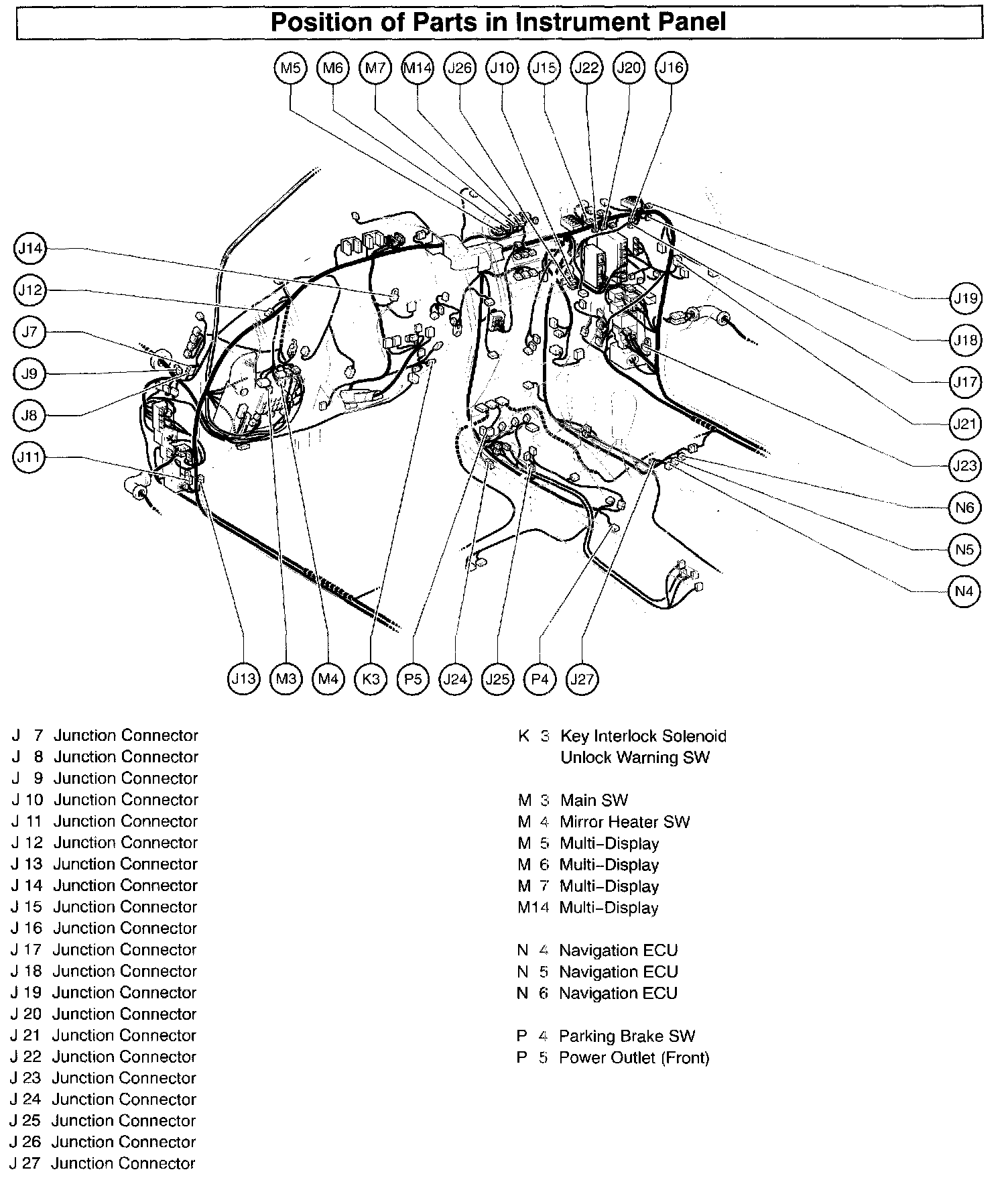

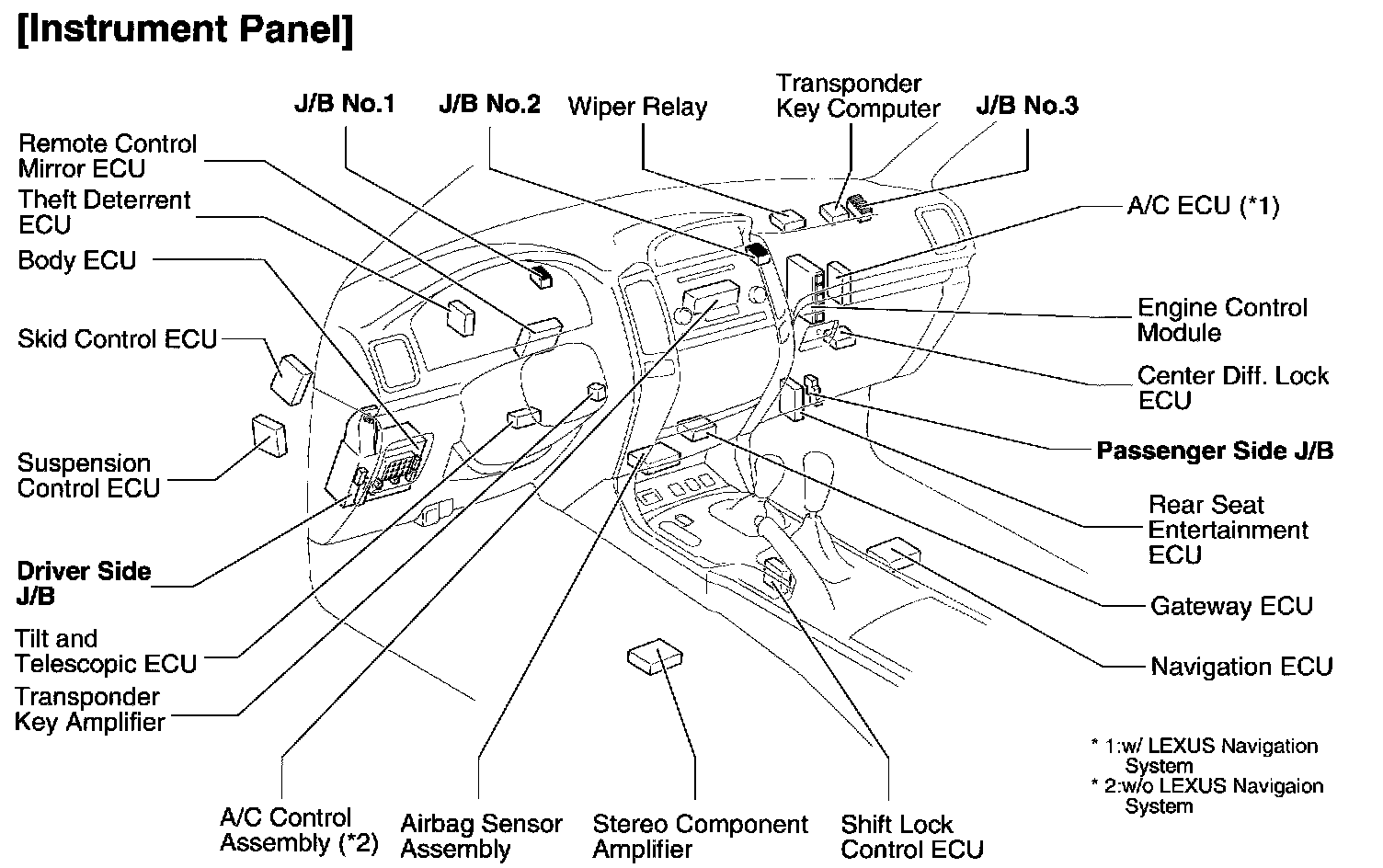

Instrument Panel:

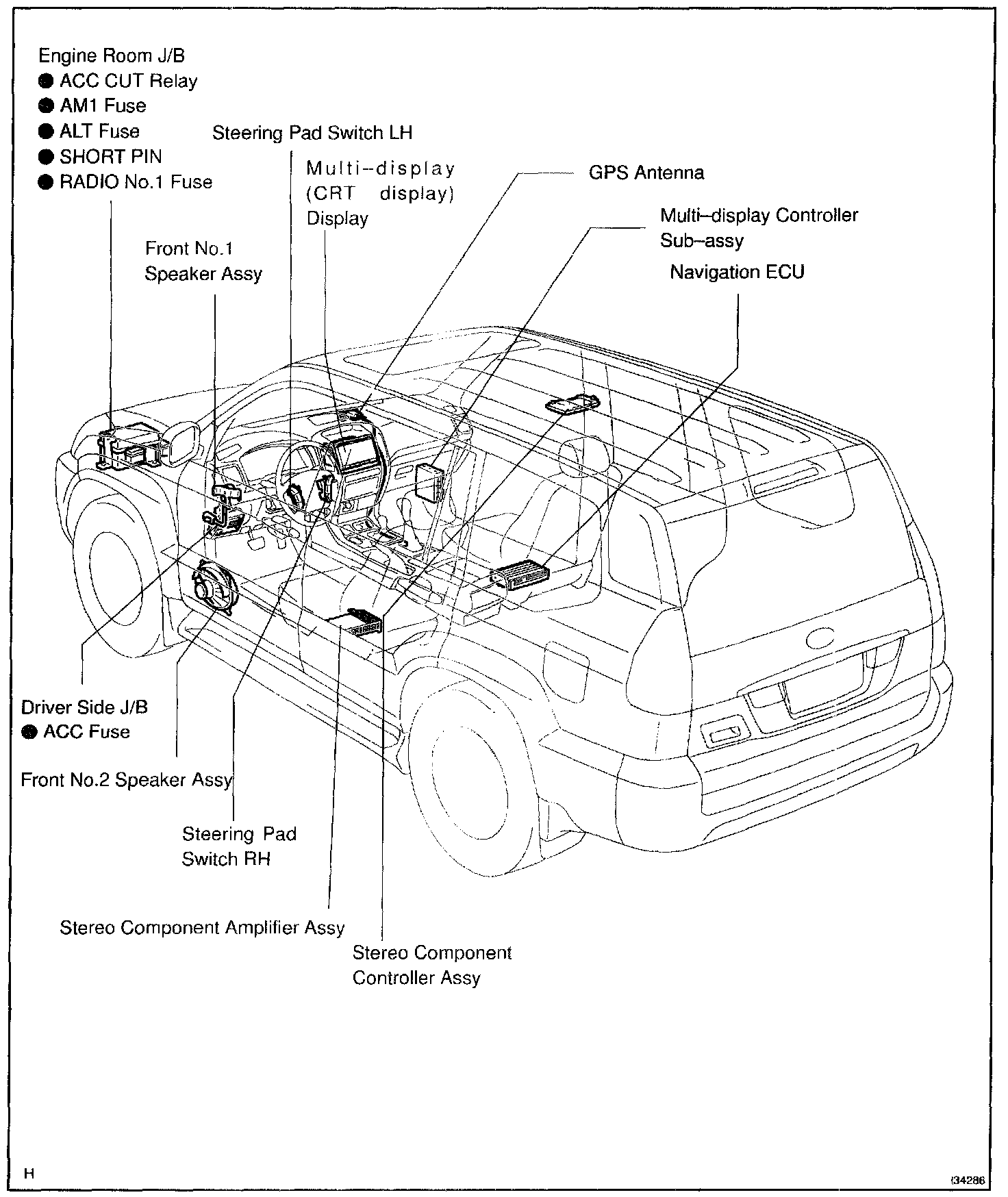

Expanded View:
