System Diagram

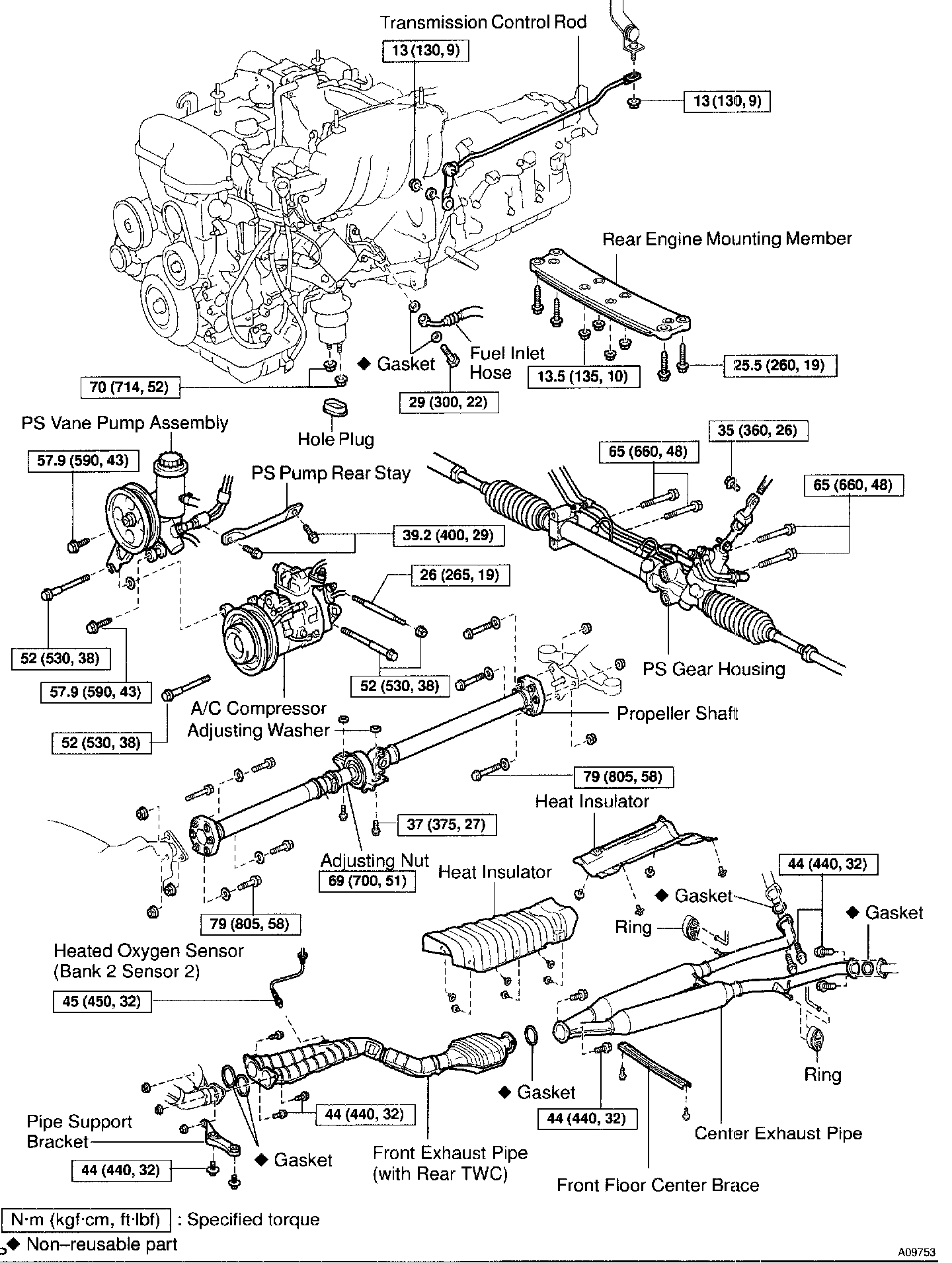

Part 1 Of 3:

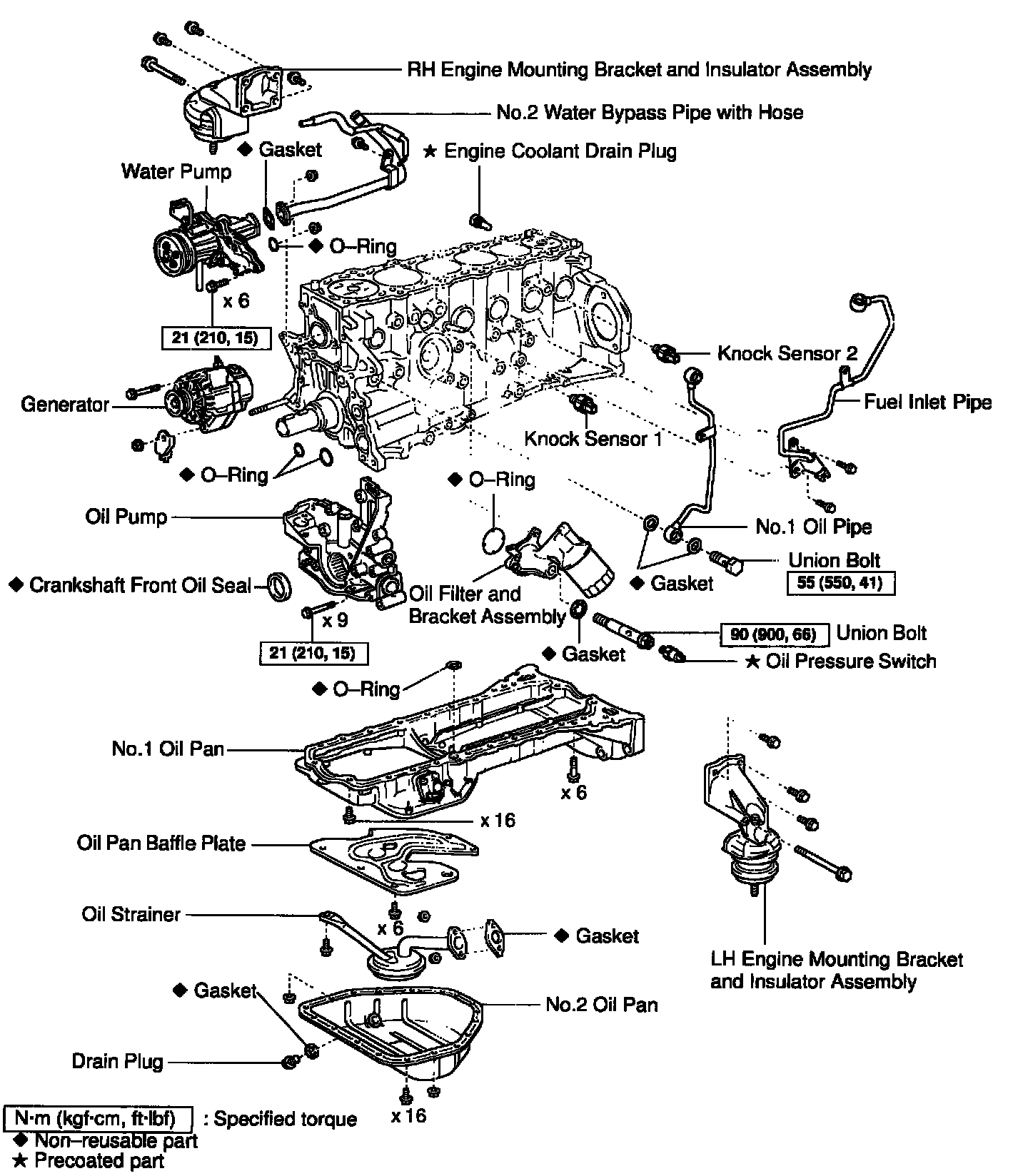

Part 1 Of 2:

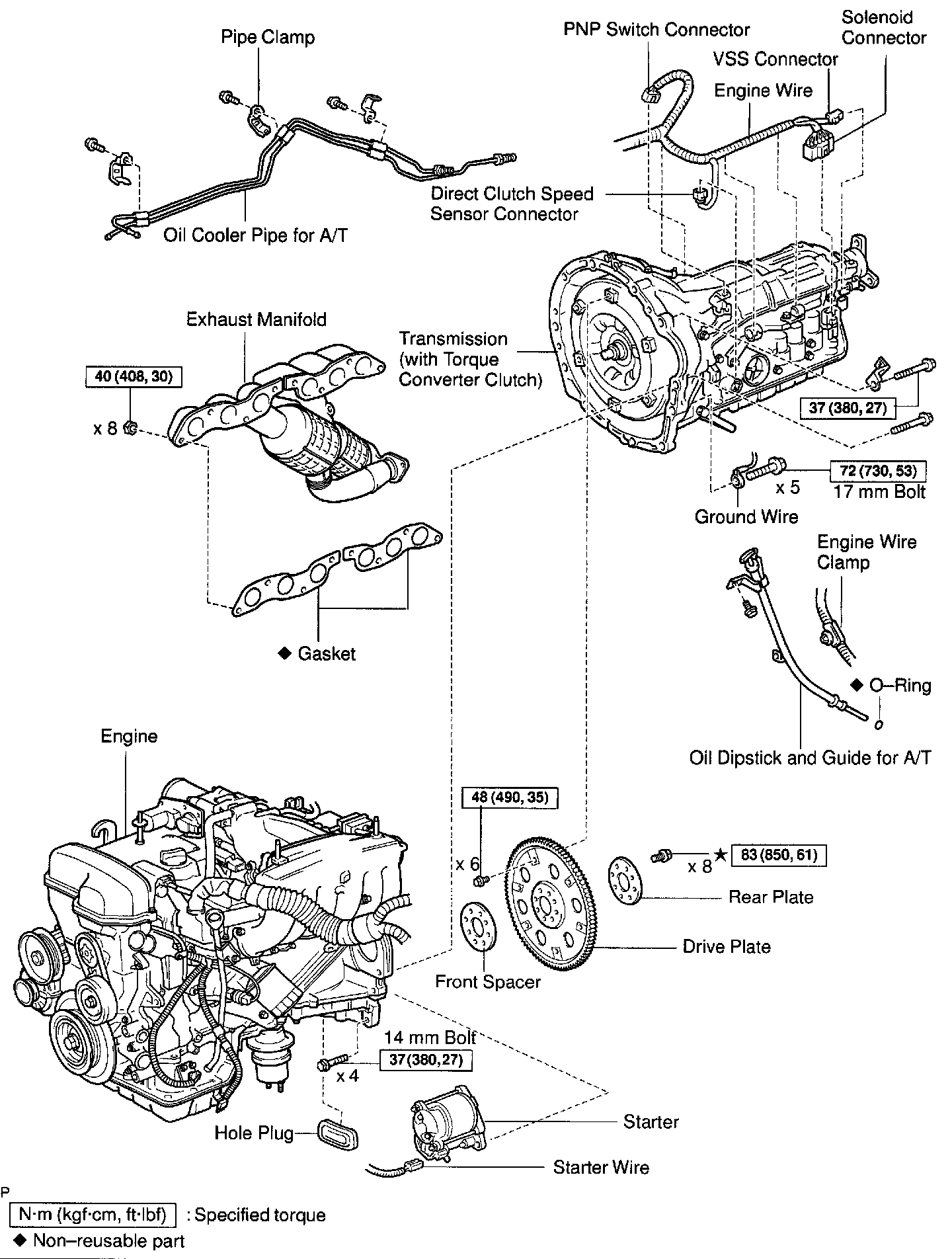

Part 2 Of 3:

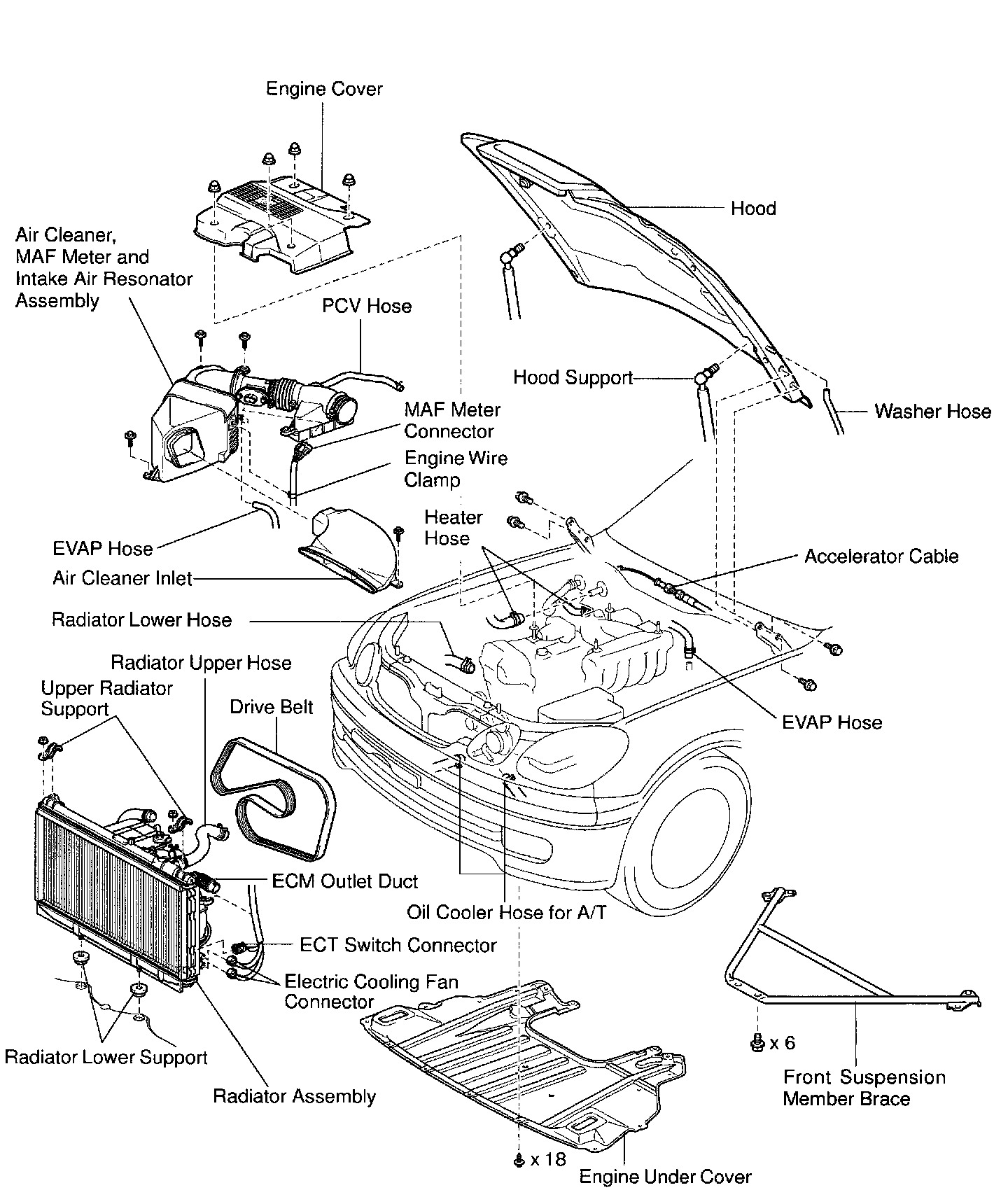

Part 3 Of 3:





ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
