Oil Pump, Engine

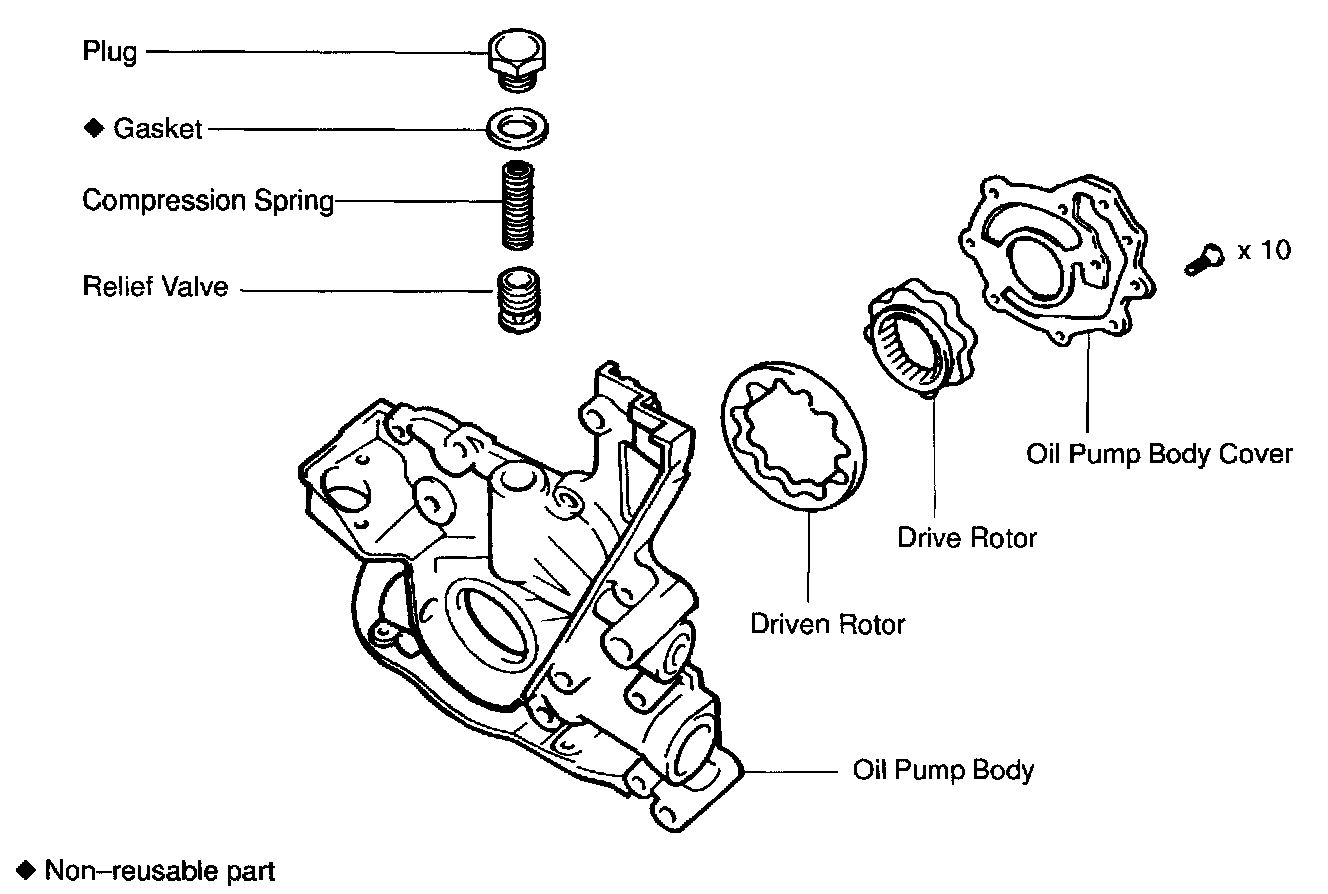

Part 1 Of 2:

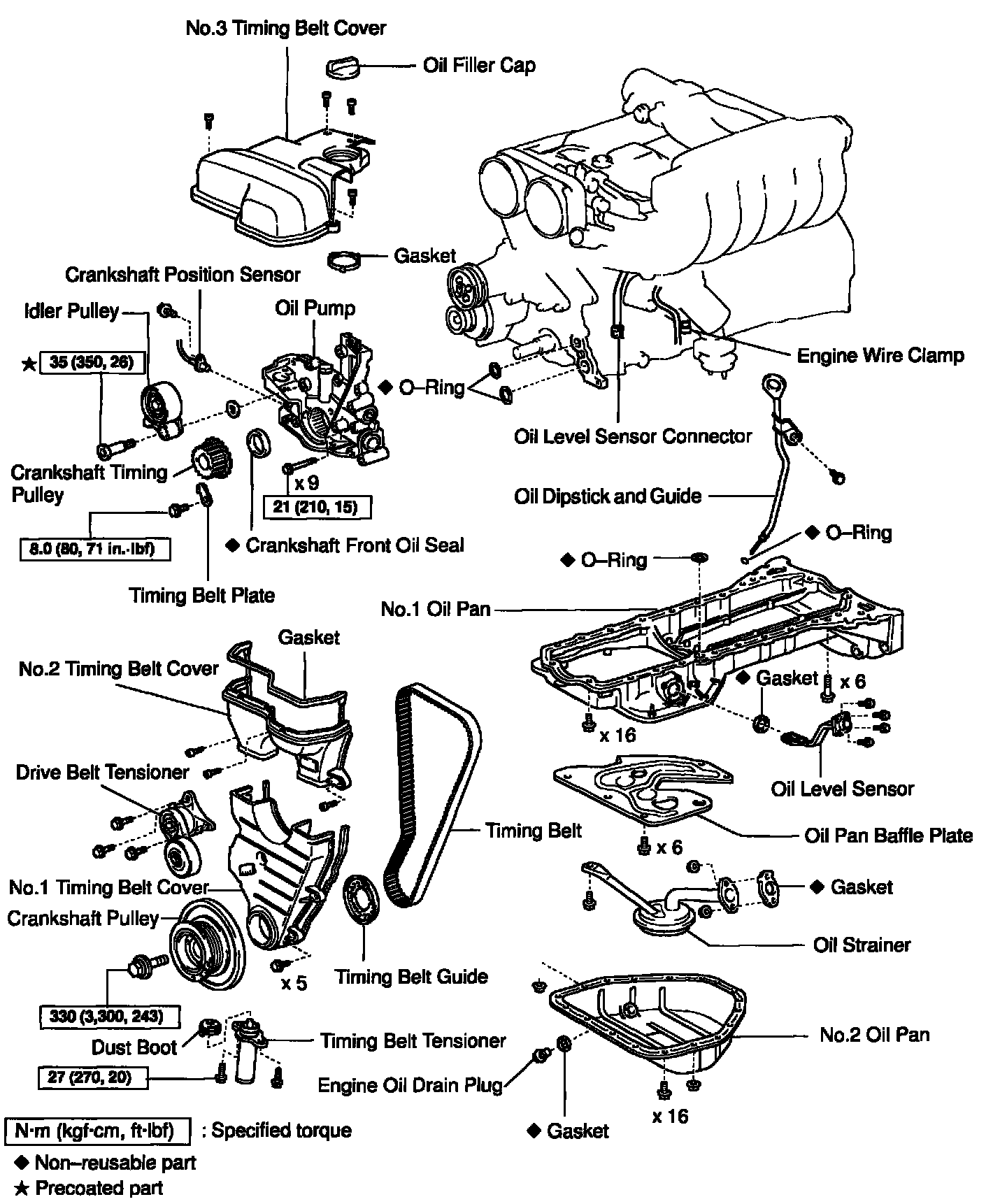

Part 2 Of 2:





OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
