Cylinder Head Assembly

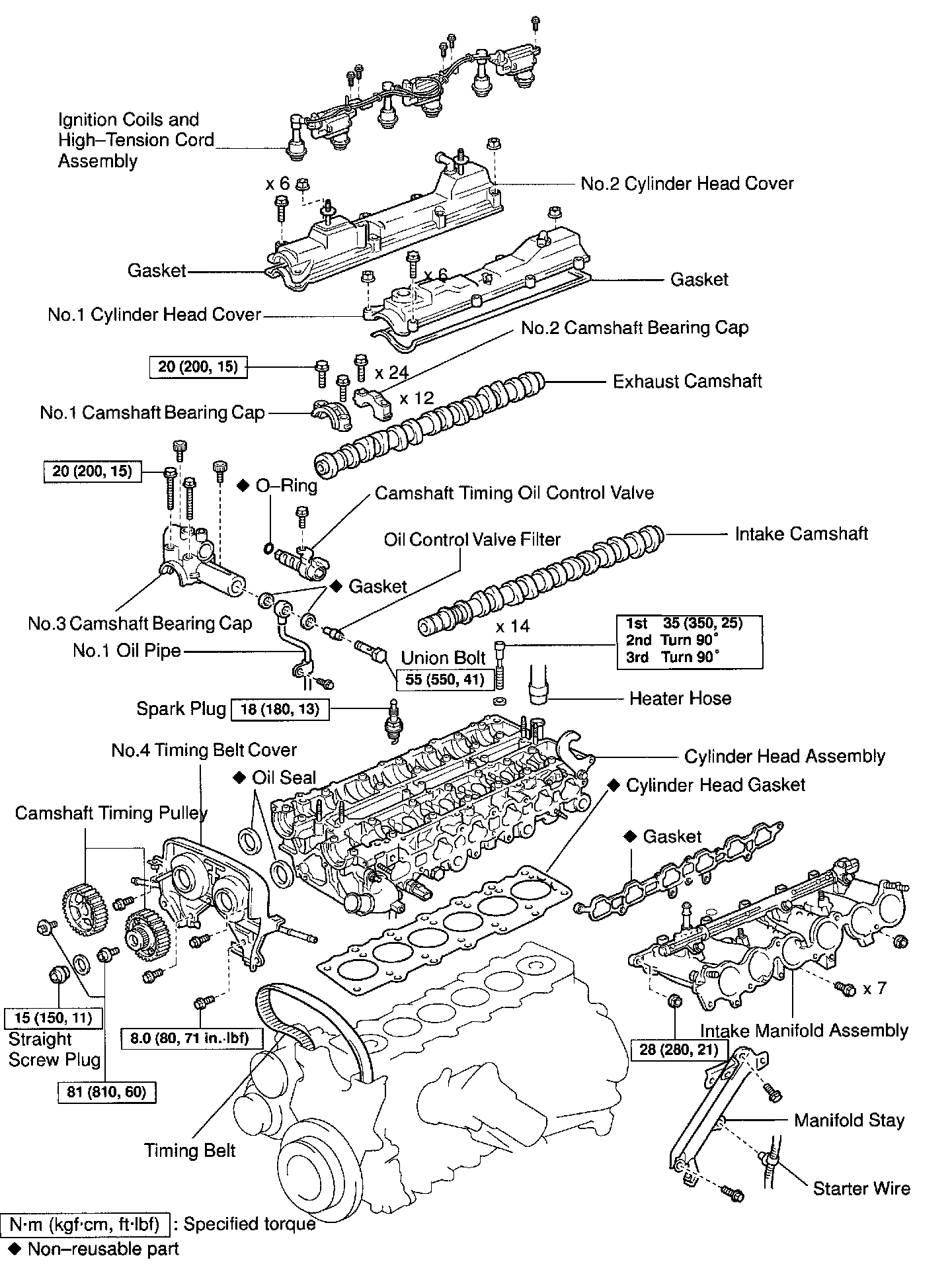

Part 1 Of 4:

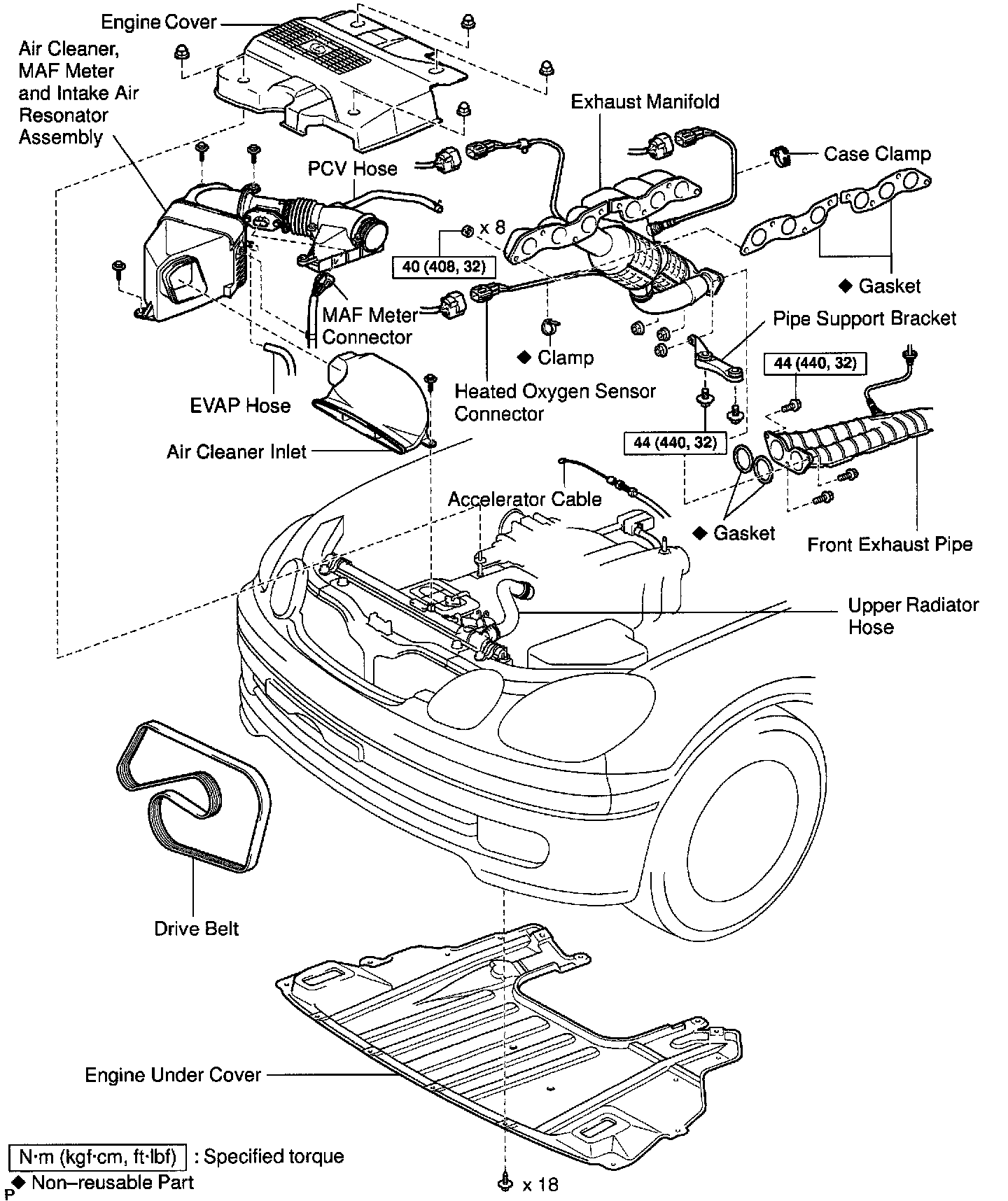

Part 2 Of 4:

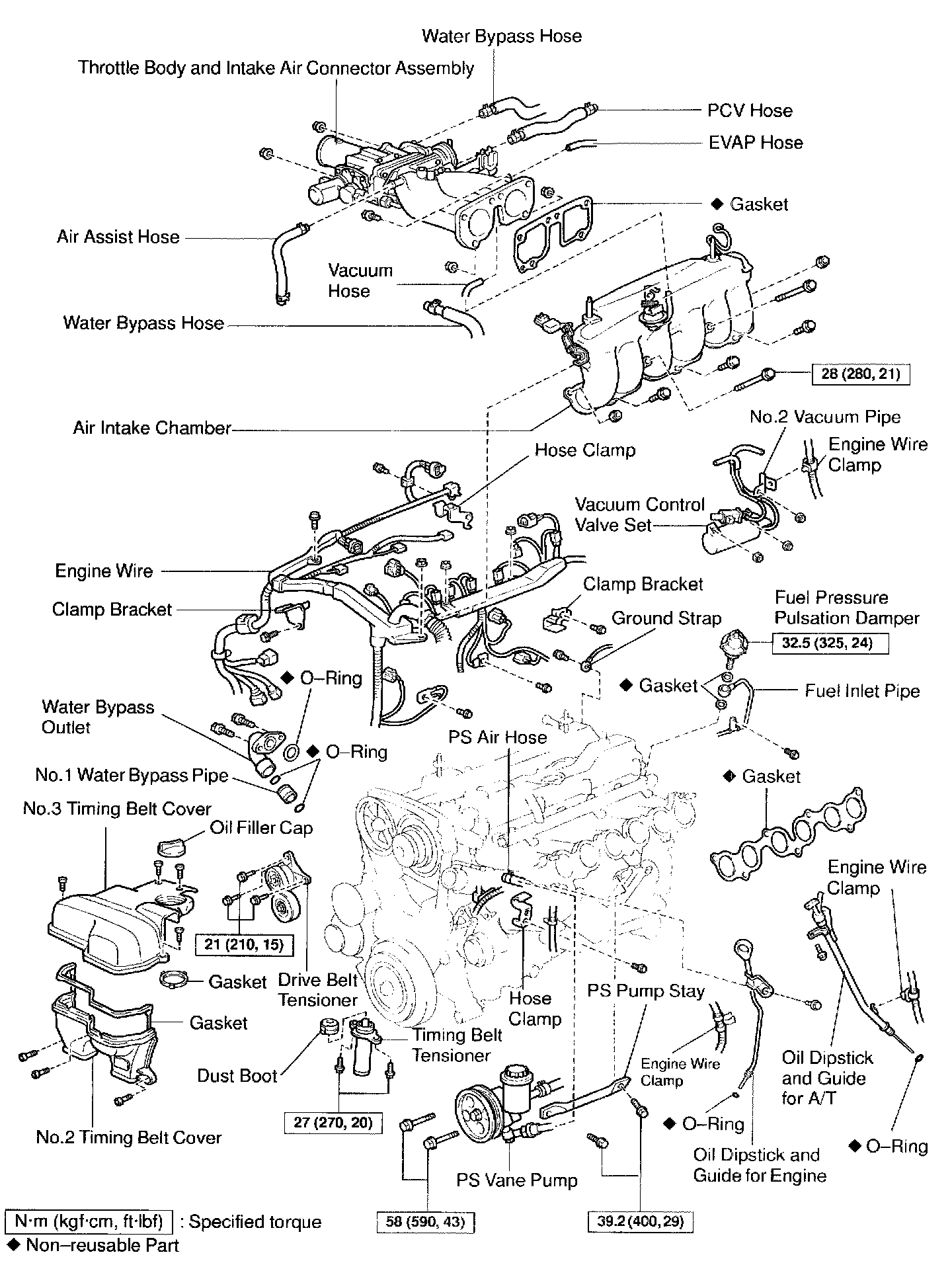

Part 3 Of 4:

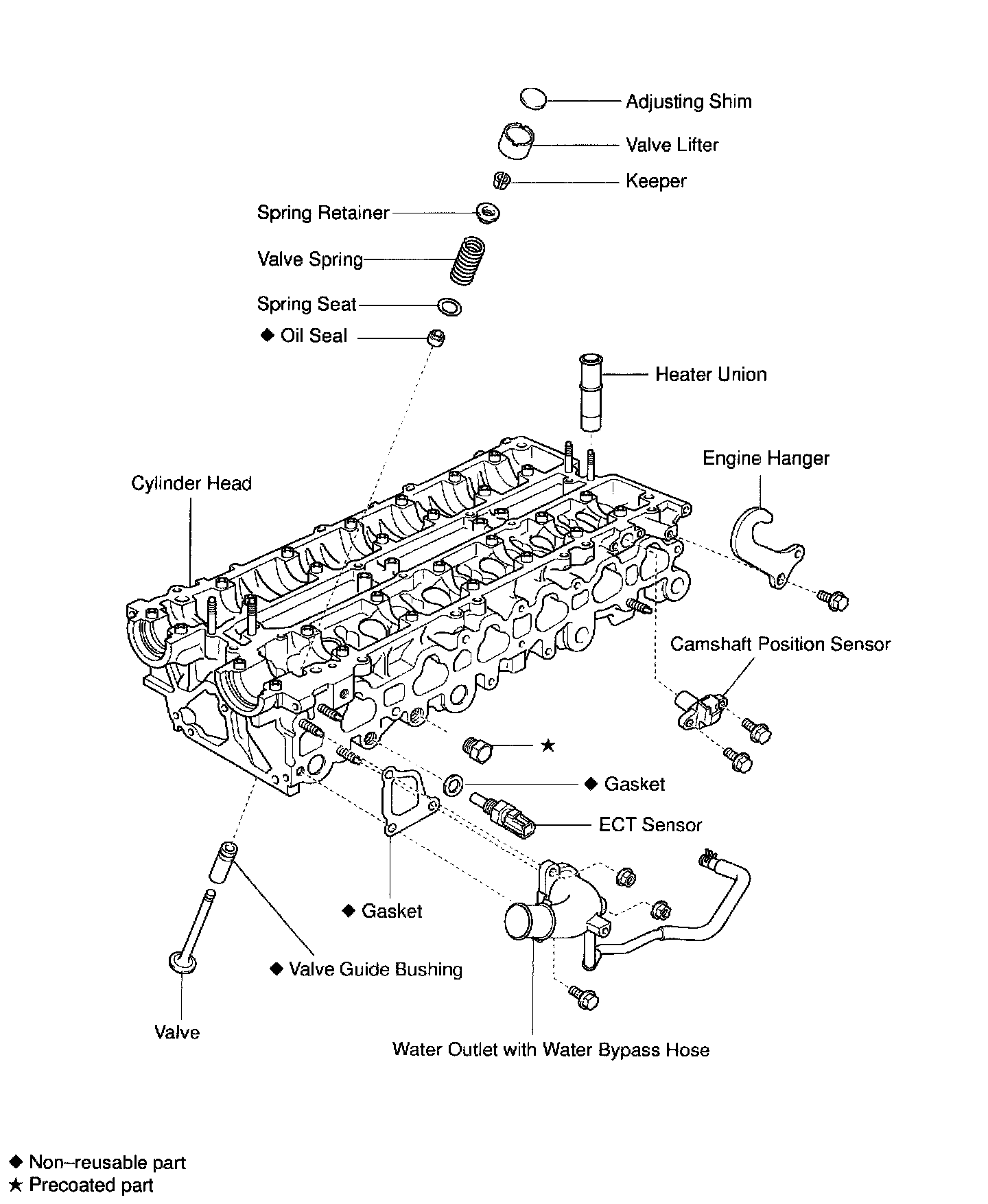

Part 4 Of 4:





CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
