Cylinder Block Assembly

Part 1 Of 2:




Part 2 Of 2:

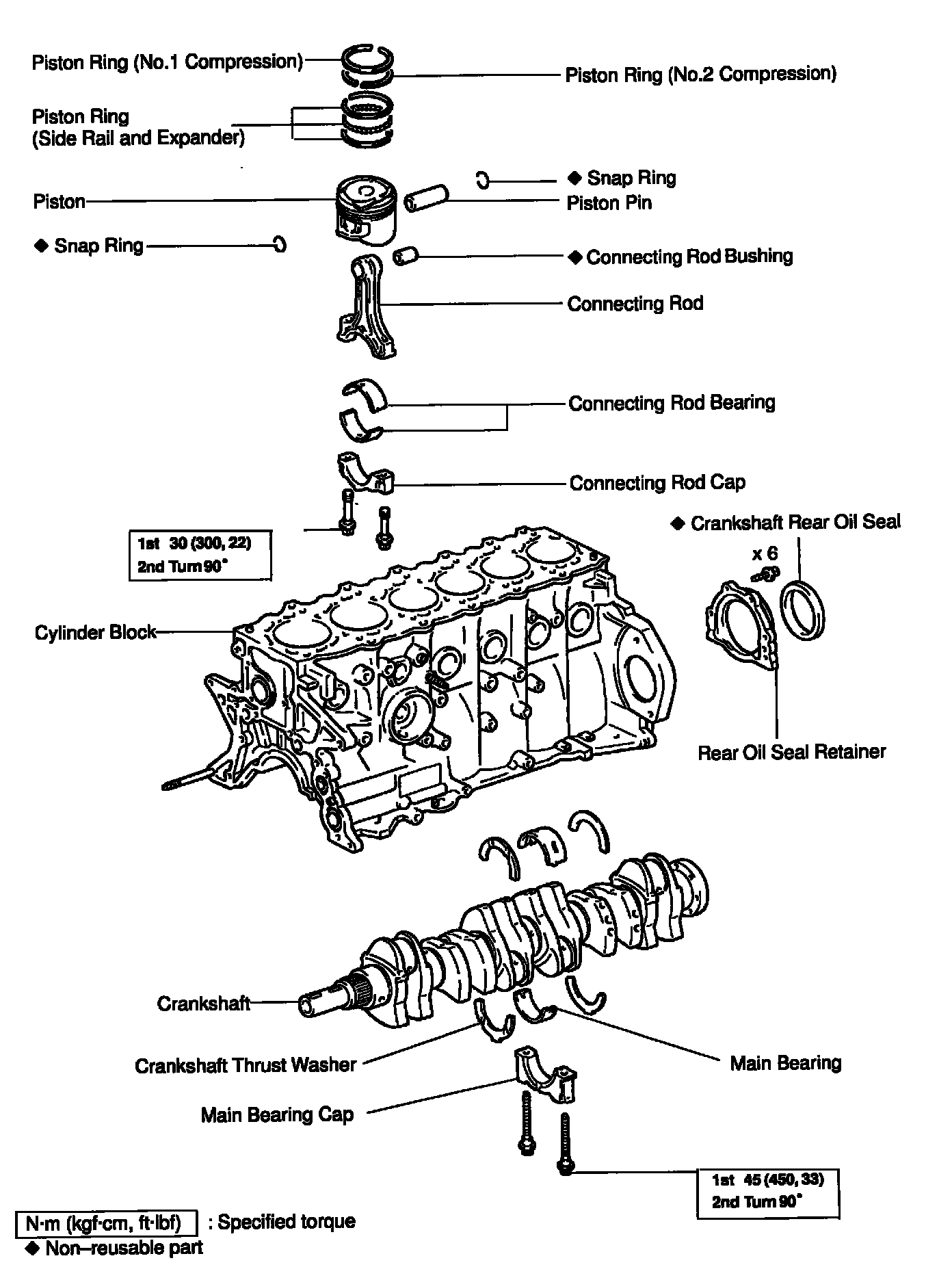

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
