Refrigerant Line: Components

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

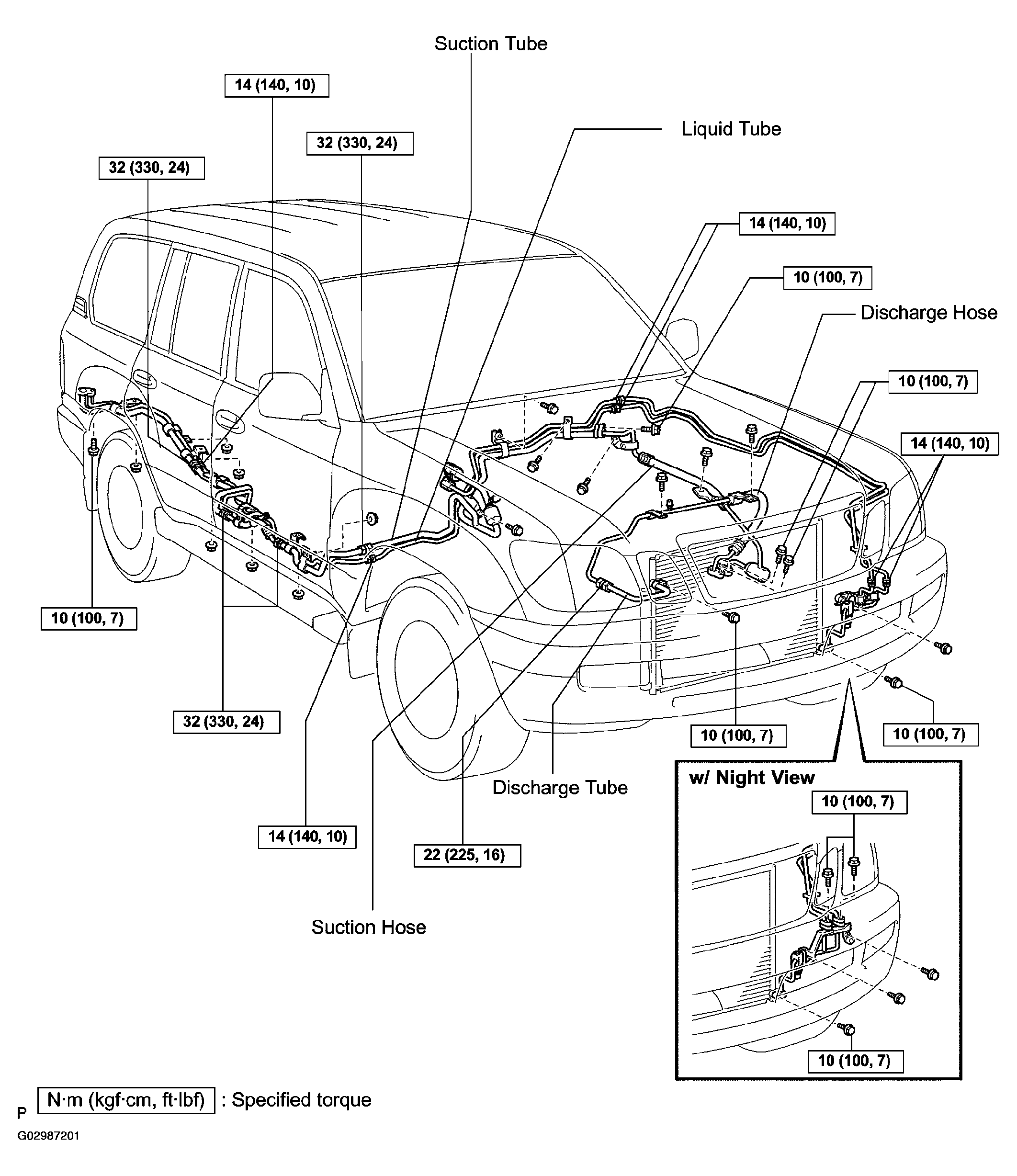

Fig 1: Identifying Refrigerant Line Components
G02987201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
