Home
>>
Lexus
>>
2002
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Body
Body

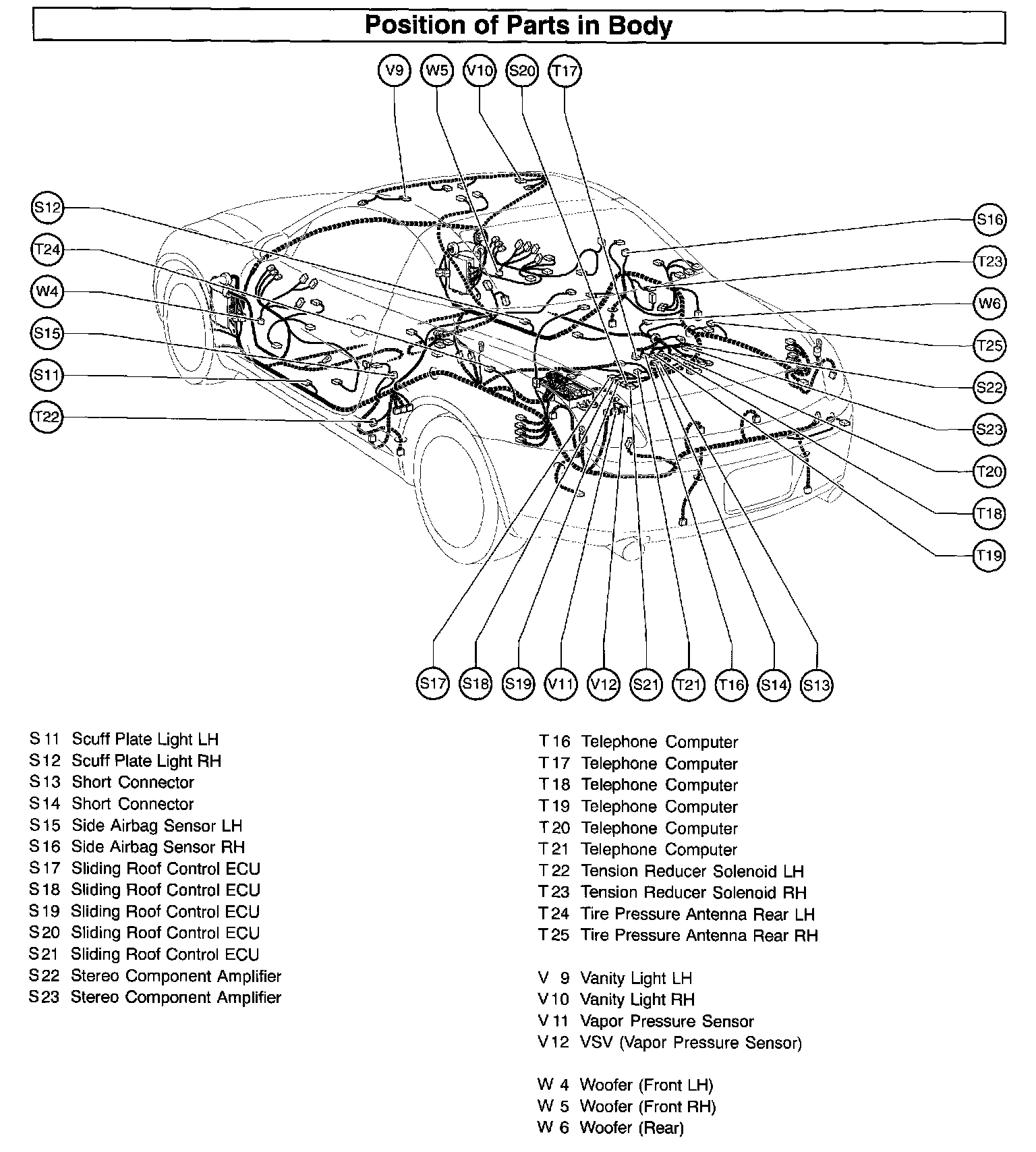

Position Of Parts In Body Part 1:

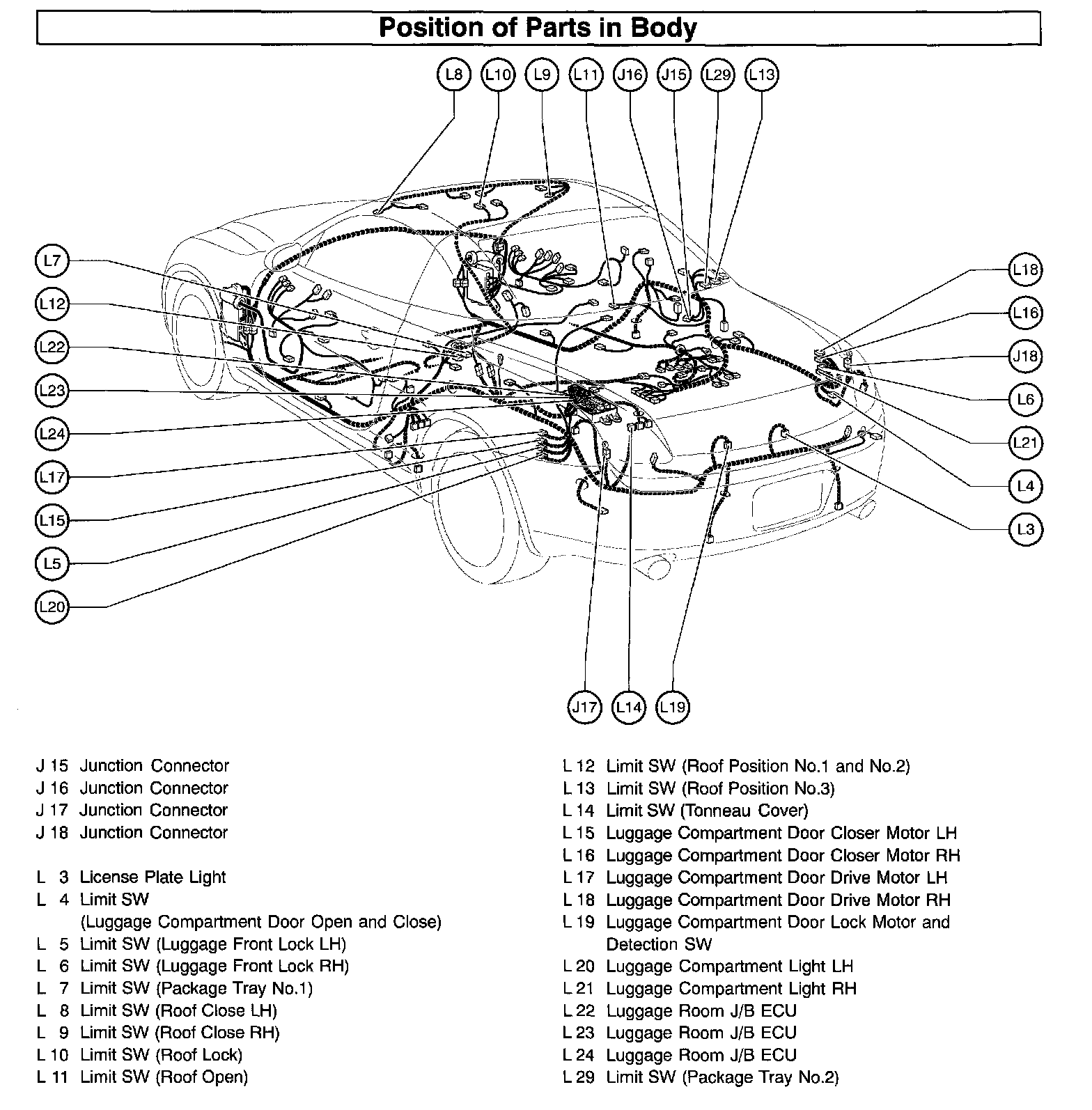

Position Of Parts In Body Part 2:

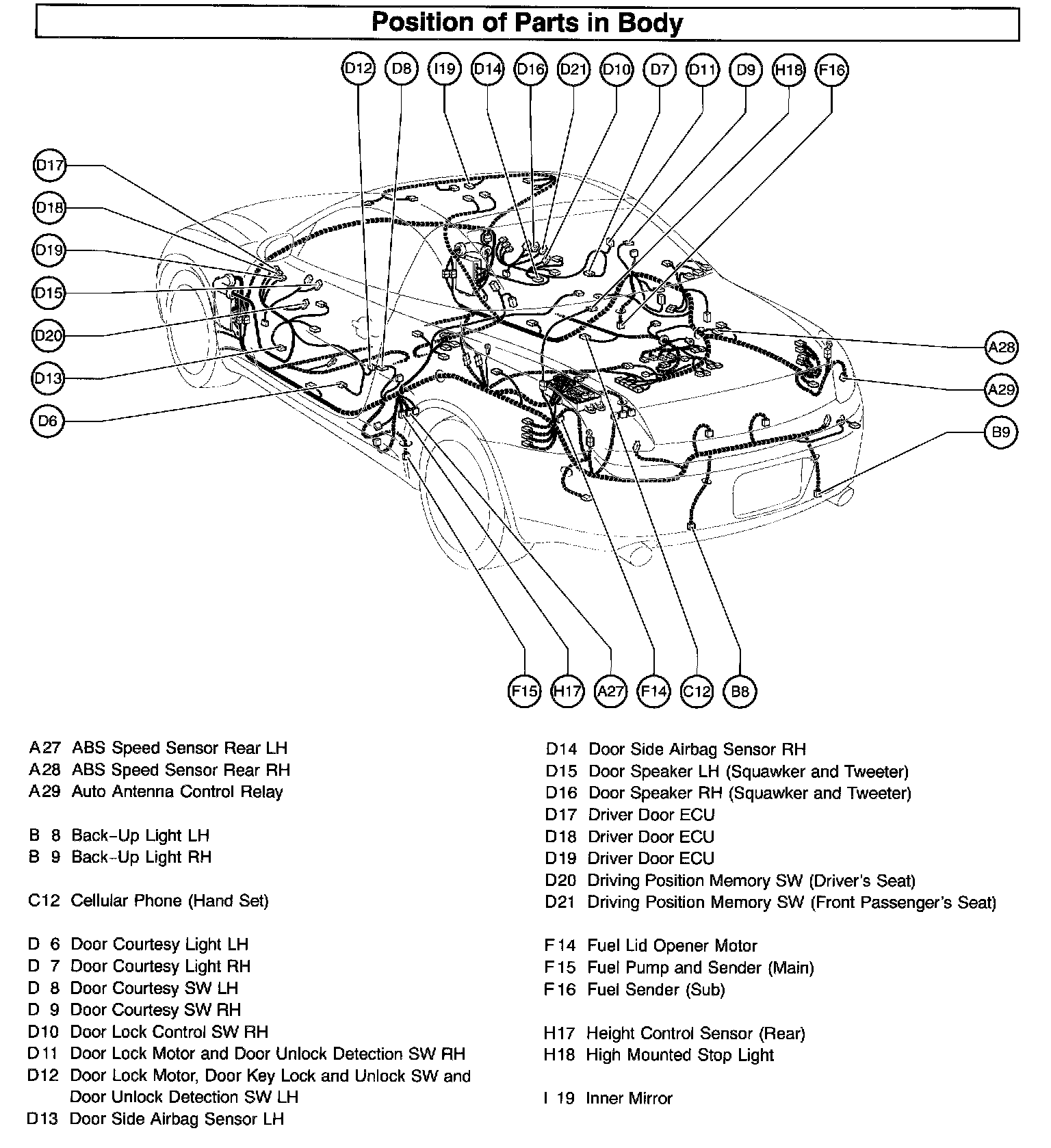

Position Of Parts In Body Part 3:

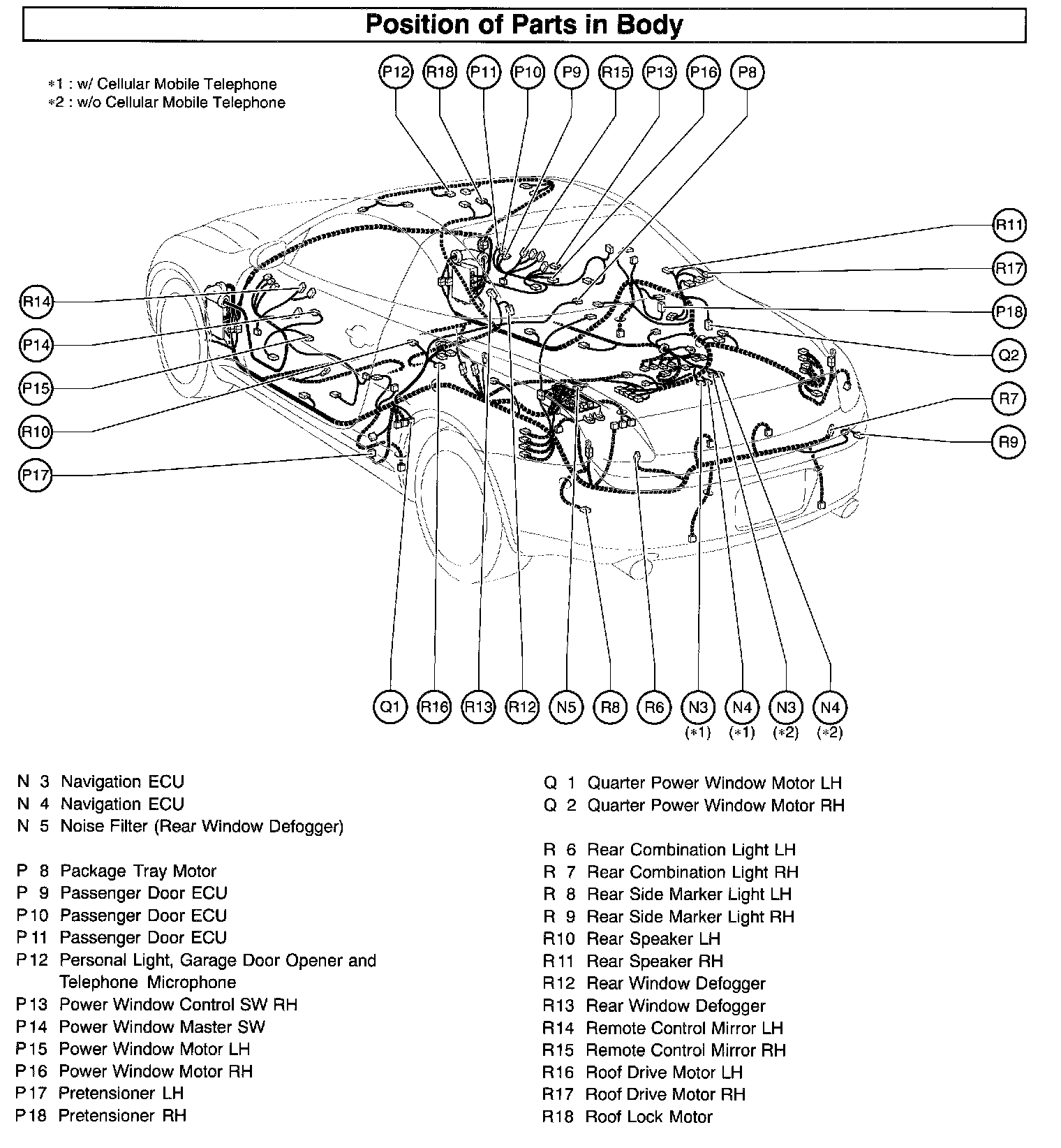

Position Of Parts In Body Part 4:
