Crankshaft Position Sensor: Service and Repair

REMOVAL




1. REMOVE RH FENDER APRON SEAL

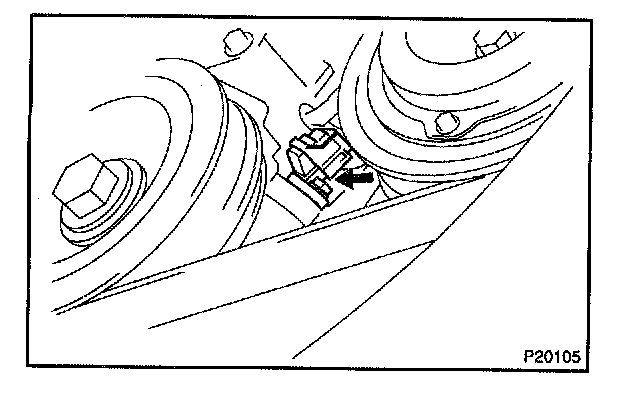

2. REMOVE CRANKSHAFT POSITION SENSOR
a. Remove the bolt and disconnect the crankshaft position sensor.

Torque: 8 N.m (80 kgf.cm, 69 in.lbf)

b. Disconnect the crankshaft position sensor connector.

INSTALLATION
Installation is in the reverse order of removal.
