Engine Compartment

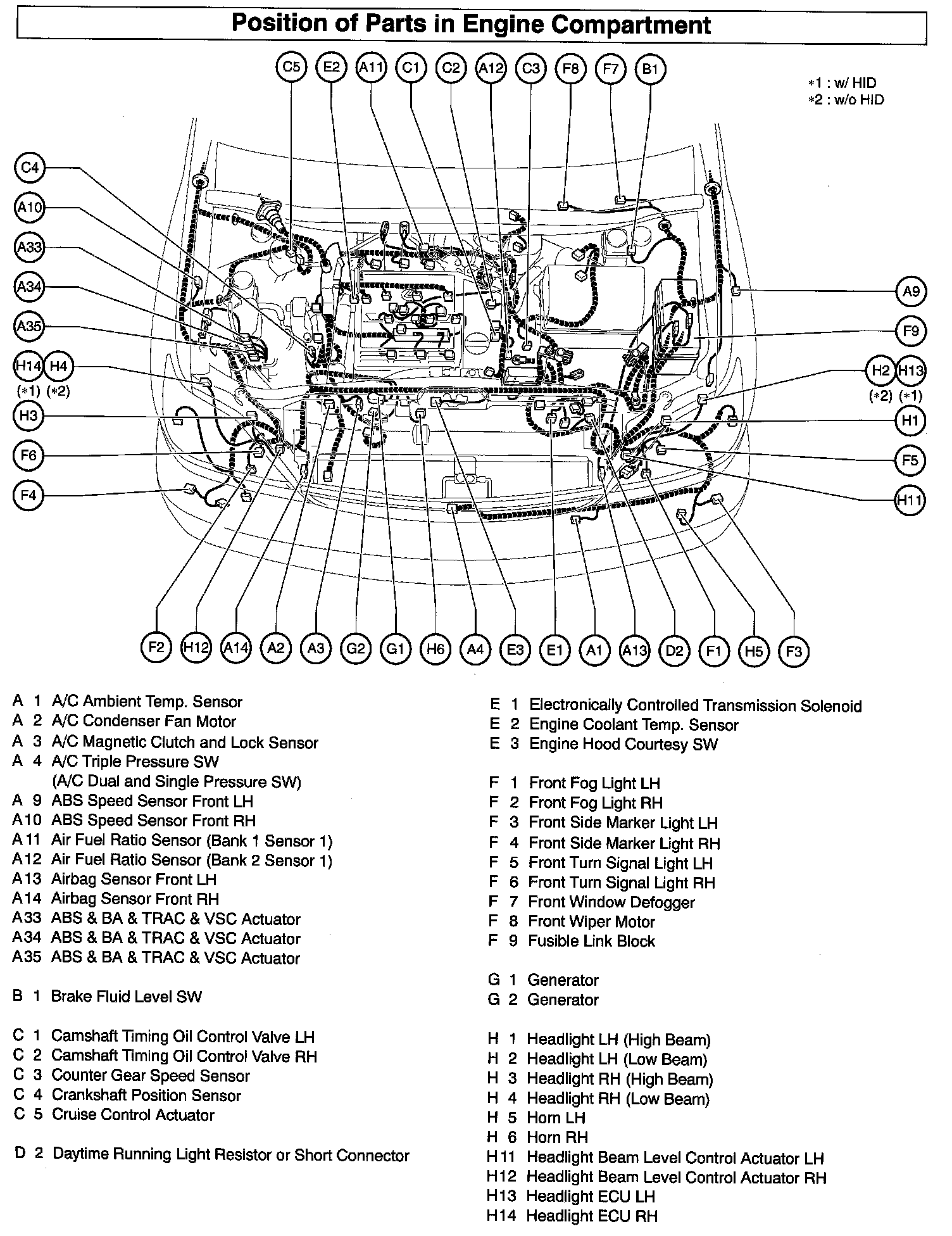

Position Of Parts In Engine Compartment Part 1:

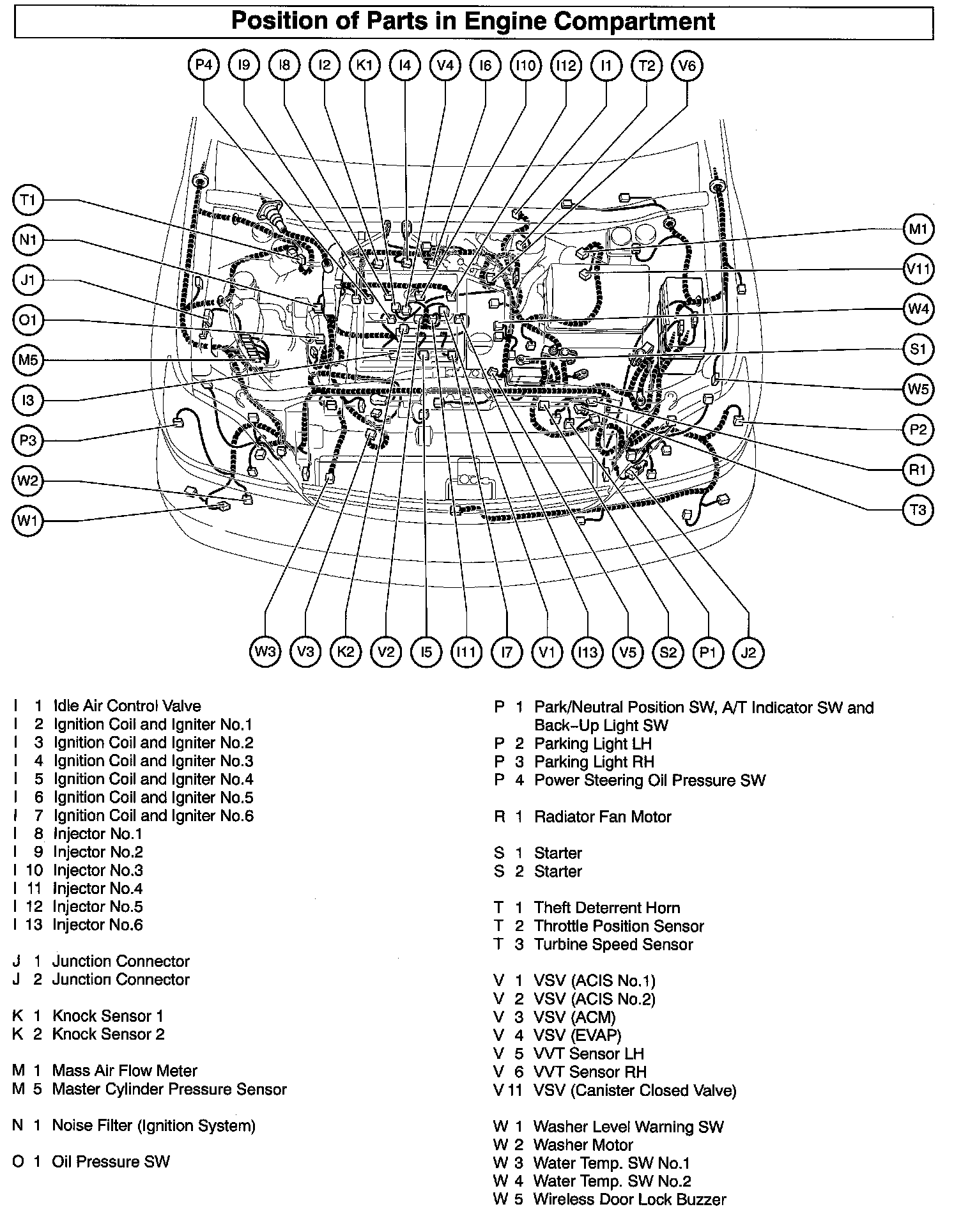

Position Of Parts In Engine Compartment Part 2:
