Power Source Circuit
Power Source Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the Body ECU.

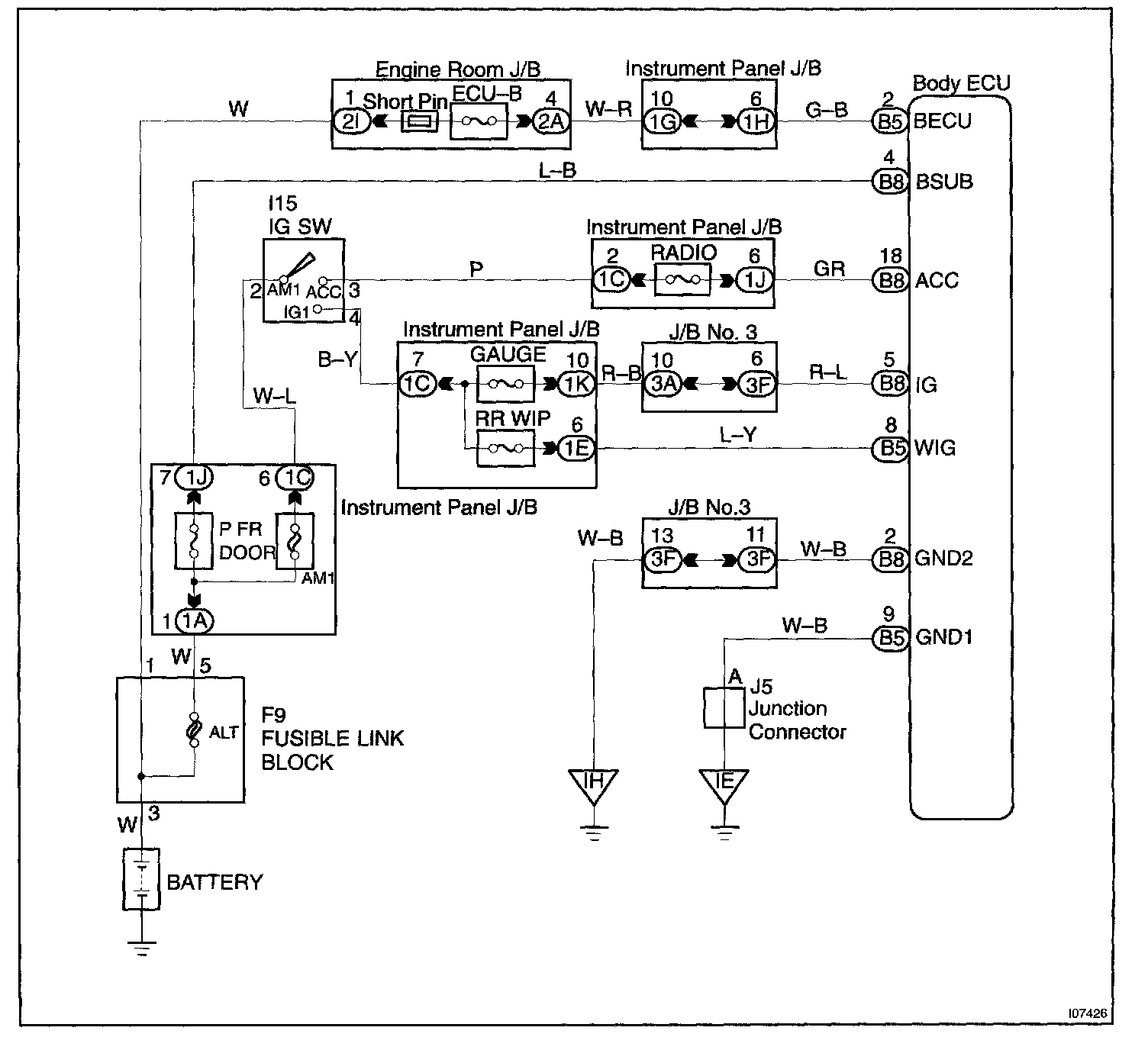

Wiring Diagram:

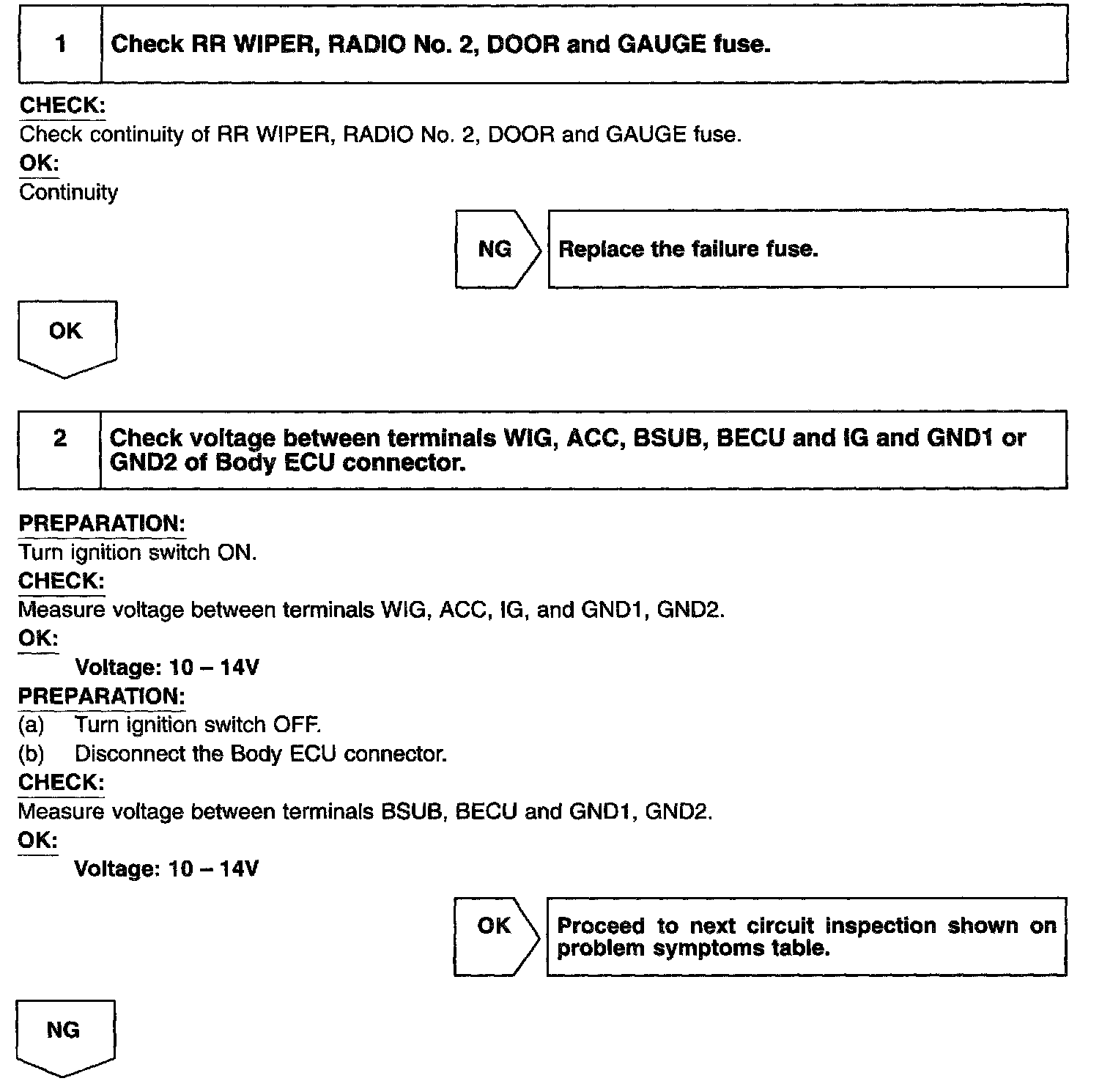

Step 1 - 2:
Step 3:

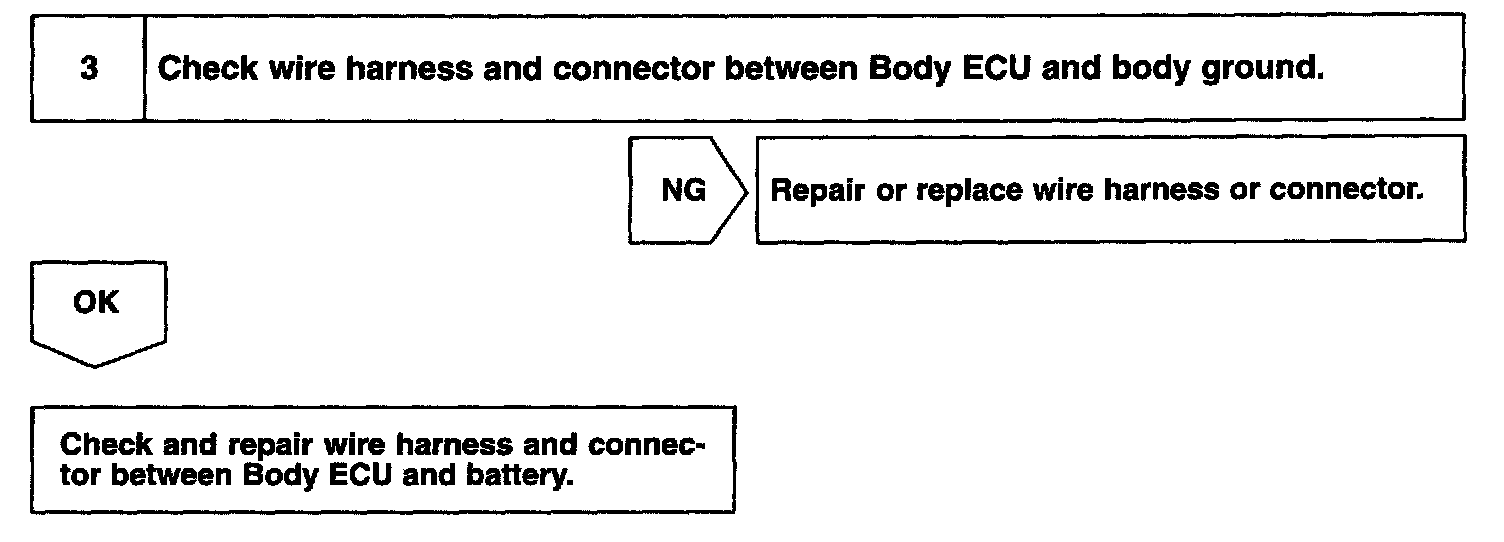

INSPECTION PROCEDURE
